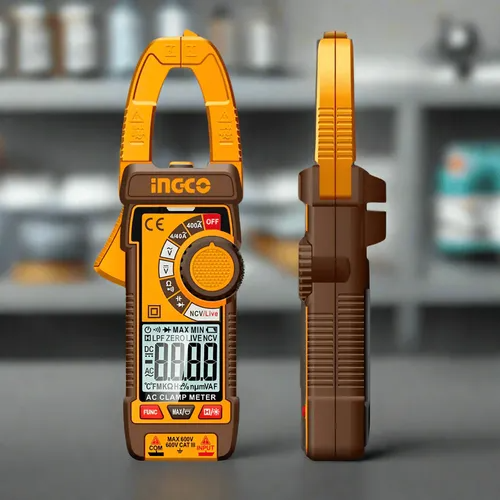

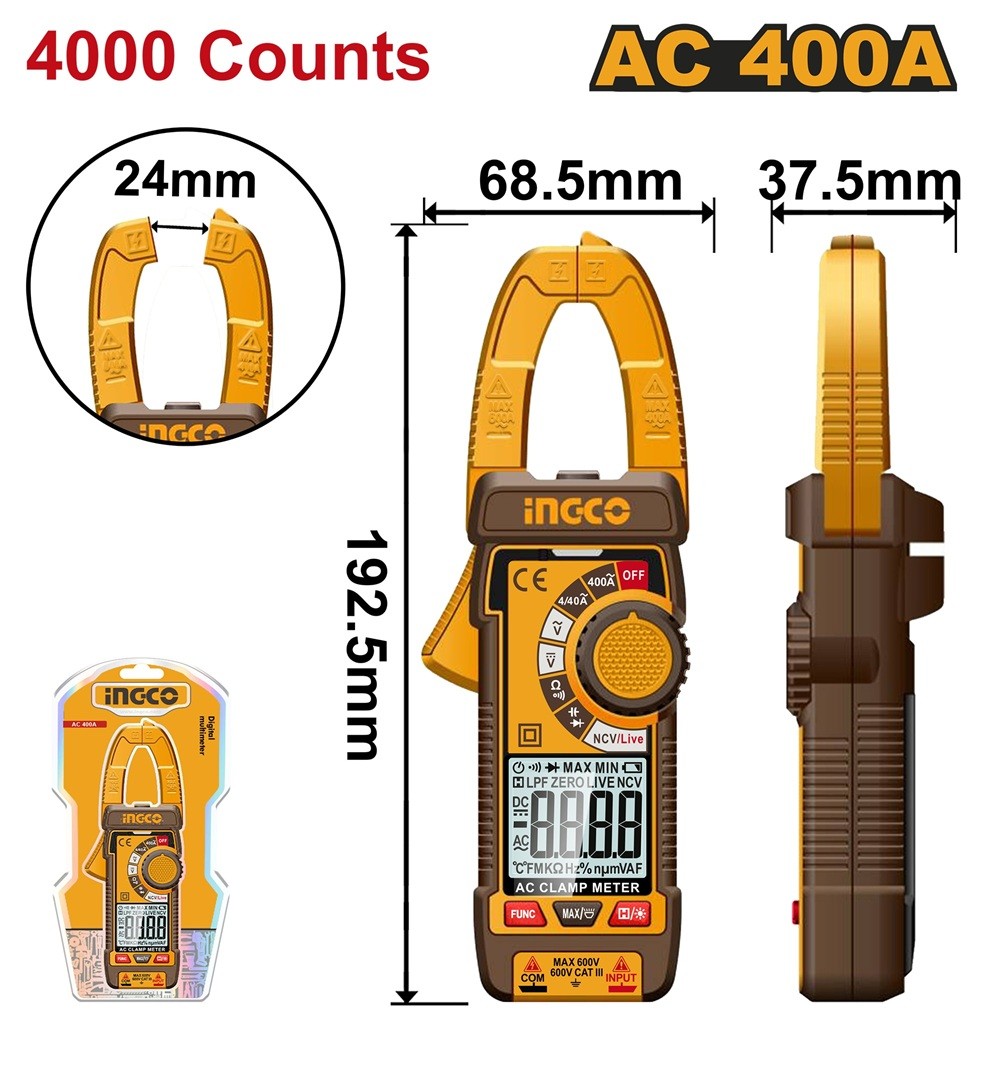

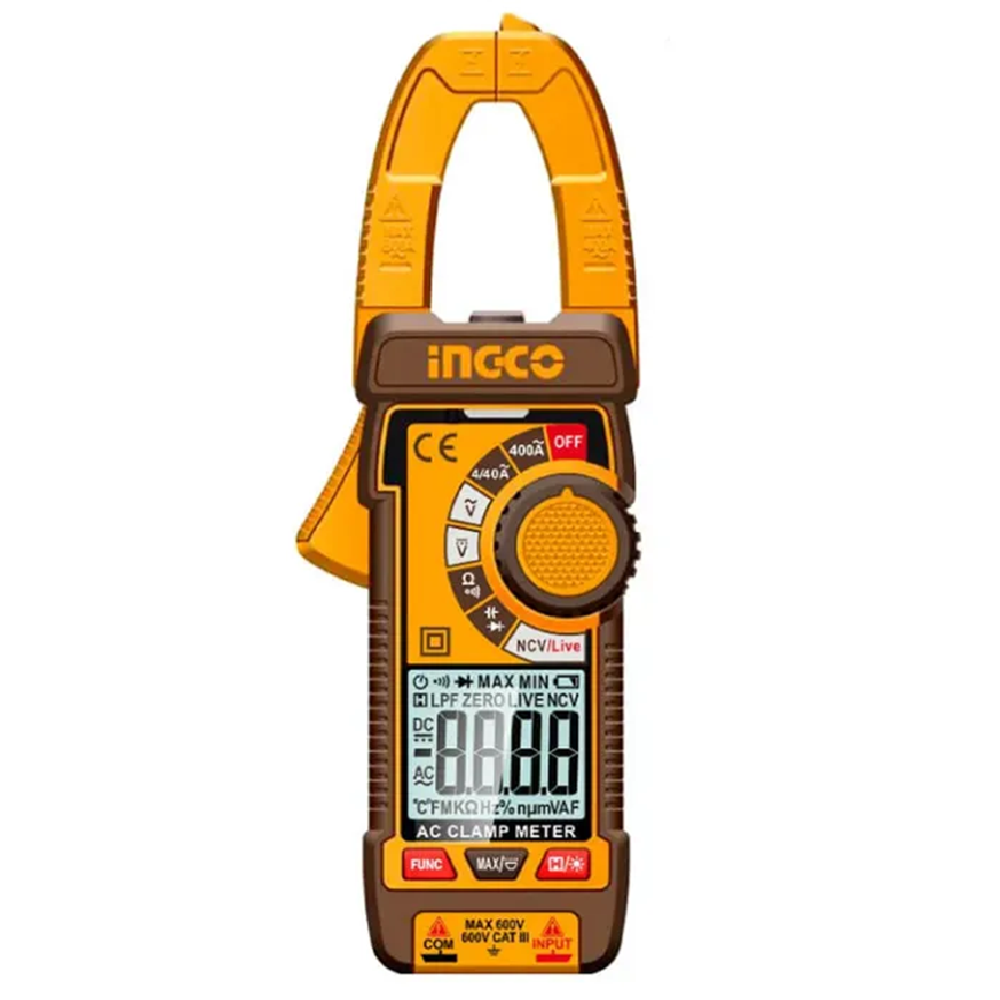

DCM62001 Digital AC 400A Clamp Meter

Ingco DCM62001 Digital AC 400A Clamp Meter – True RMS, Backlit LCD

The Ingco DCM62001 Digital AC 400A Clamp Meter is a reliable and practical electrical testing instrument designed for technicians, electricians, and DIY users who need accurate AC current measurements without disconnecting conductors. This compact clamp meter allows non-contact measurement of AC current up to 400 A, making it ideal for troubleshooting electrical circuits, HVAC systems, motors, and industrial equipment. Featuring a clear backlit LCD display, the device provides easy reading even in dimly lit environments. The True RMS measurement ensures accurate readings for various waveform types, while built-in safety features protect you during daily use. With additional functions such as overload indication, easy-to-operate controls and durable construction, the Ingco DCM62001 is a versatile tool for electrical diagnosis and maintenance tasks.

Features

• Measures AC current up to 400 A using a non-contact clamp design.
• True RMS measurement delivers accurate readings for complex waveforms.
• Backlit LCD display for clear visibility in low-light conditions.
• Compact, ergonomic design for comfortable one-hand use on the job.
• Built-in safety features enhance user protection during electrical testing.
• Data Hold
• NCV
• Diode test
• Low battery indication
• Auto power off

Specification

• Brand: Ingco
• Product Type: Digital AC Clamp Meter
• Model: DCM62001
• Max AC Current: 400 A
• Measurement Type: True RMS
• Display: TRUR RMS 4000 counts
• DC/AC Voltage:400mV/4V/40V/600V
• Resistance:400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ
• Capacitance:4nF/40nF/400nF/4uF/40uF/400uF/4mF
• Display: Backlit LCD
• Functions: AC Current, Overload Indication
• Design: Compact Ergonomic Clamp
• Included: 2pcs LR03 AAA batteries
