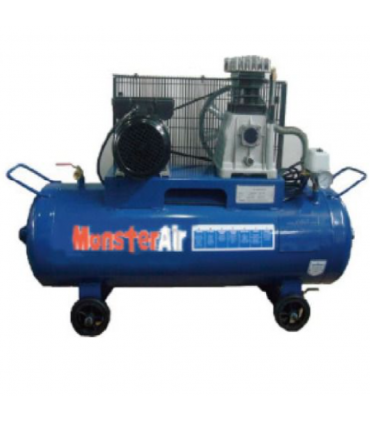

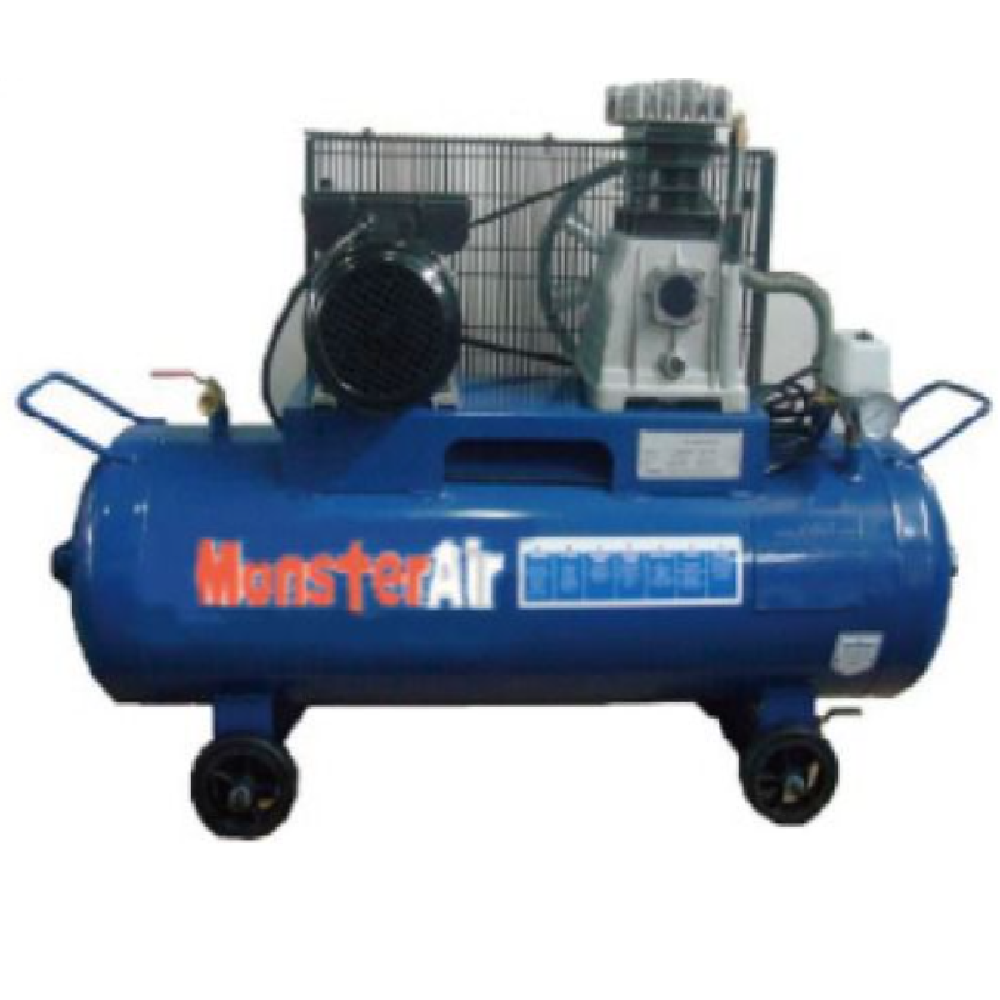

MonsterAir SA30-100H 3HP Belt-Driven 100L Air Compressor - MOM Certificate

MonsterAir SA30-100H 3HP 8Bar Belt-Driven 100L Air Compressor - MOM Certificate

The MonsterAir SA30-100H is a heavy-duty industrial belt-driven air compressor engineered for reliability and high performance in demanding workshop environments. With a robust 3 HP motor driving a large 100 L receiver, it delivers consistent compressed air at up to 8 bar (≈115 psi). Its belt drive arrangement ensures smoother and quieter operation compared to direct-drive units, while improved serviceability and component life make it ideal for use in garages, manufacturing plants, spray painting, pneumatic tooling, and more. The unit is manufactured by Tri-Unity Machinery / MonsterAir and designed for continuous duty cycles, offering stable pressure supply even under load fluctuations. Compact in footprint yet powerful, the SA30-100H brings industrial-grade compression into more modest shop settings.

Features

• 3 HP industrial induction motor for stable drive
• Belt drive system for quieter, smoother operation
• 100 L air receiver minimizes pulsation and increases reserve
• Maximum 8 bar (115 psi) working pressure for heavy tasks
• Easy maintenance access to belts, pulleys, and filters

Specification

• Brand: MonsterAir
• Product Type: Belt-Driven Piston Air Compressor
• Model: SA30-100H
• Motor Power: 3 HP (2.2 kW)
• Number of Phases: Single Phase or 3 Phase
• Working Pressure: 8 Bar ( 115 psi)
• Piston Displacement: 350 L/Min (12.36 CFM)
• Air Delivery: 262. 5 L/min (9.23 CFM)
• No-Load Speed: 910 rpm
• Tank Capacity: 100 L (26 gal)
• Net Weight: 86 kg

** MOM Certificate **
