Hardware Specialist Heavy Duty Freezer Door Handle & Lockset (For Flat Door)

Hardware Specialist Heavy Duty Freezer Door Handle & Lockset for Flat Doors

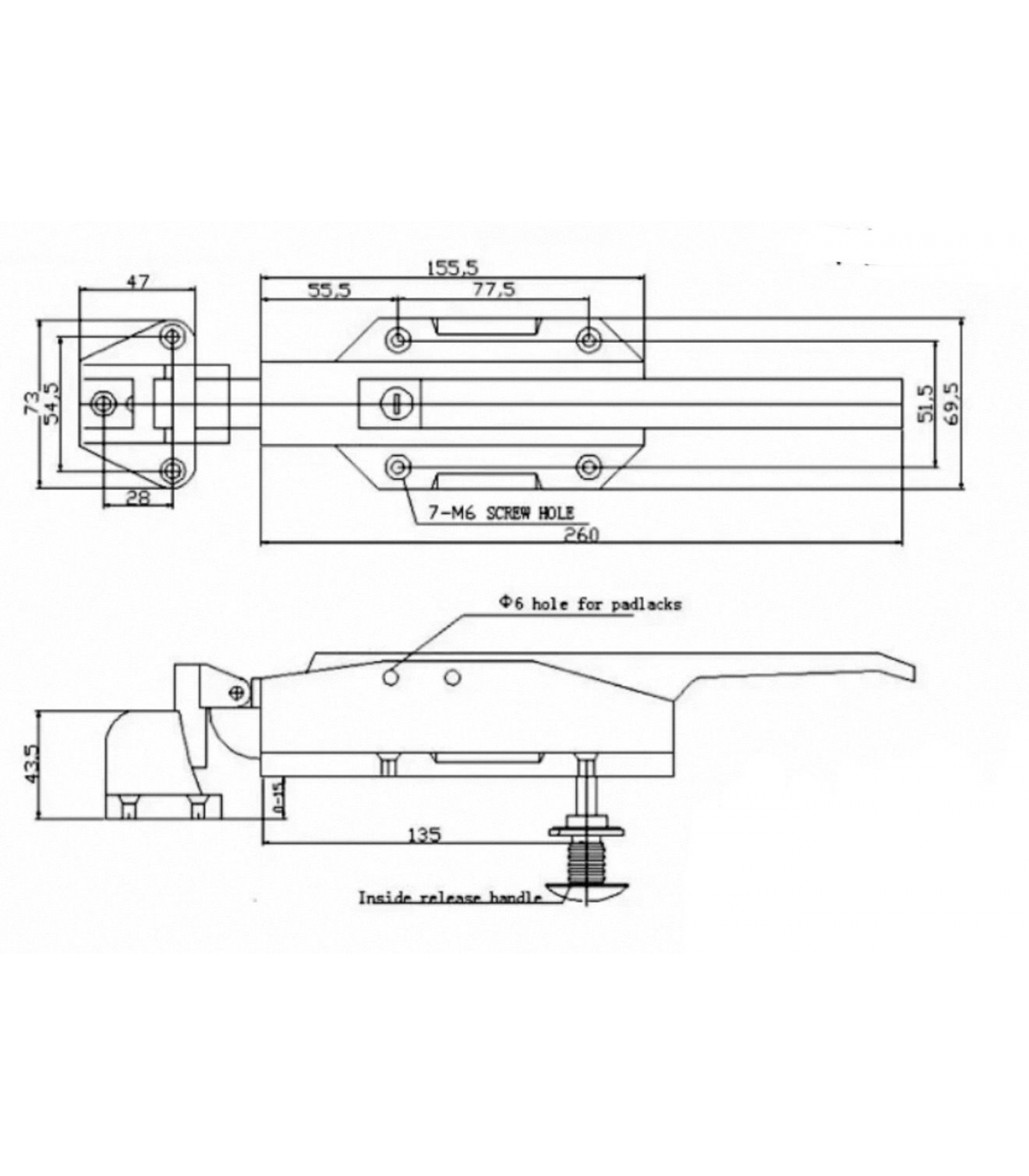

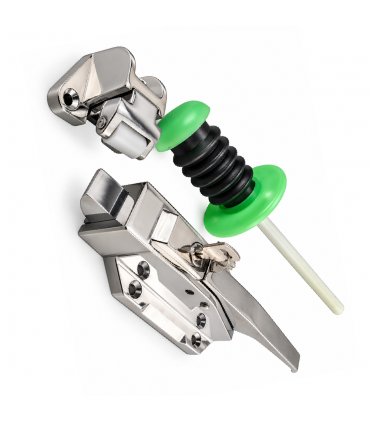

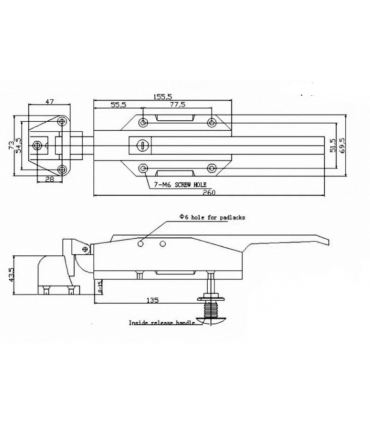

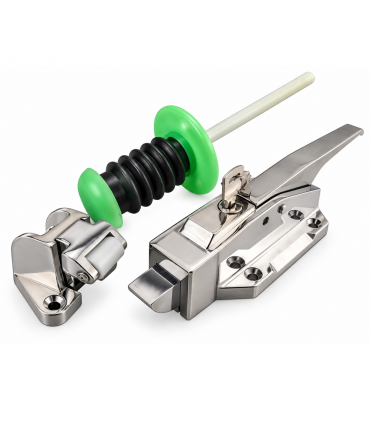

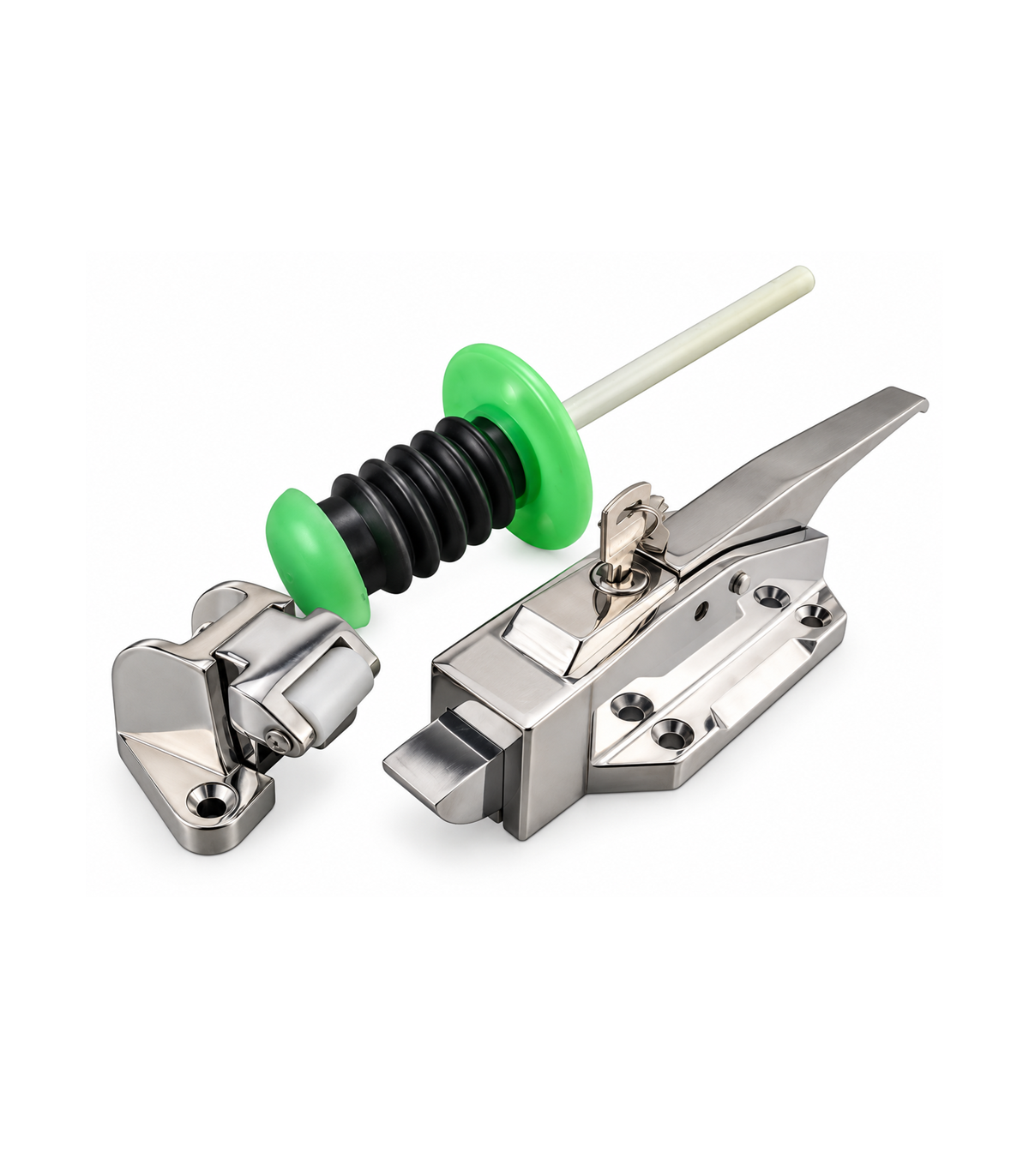

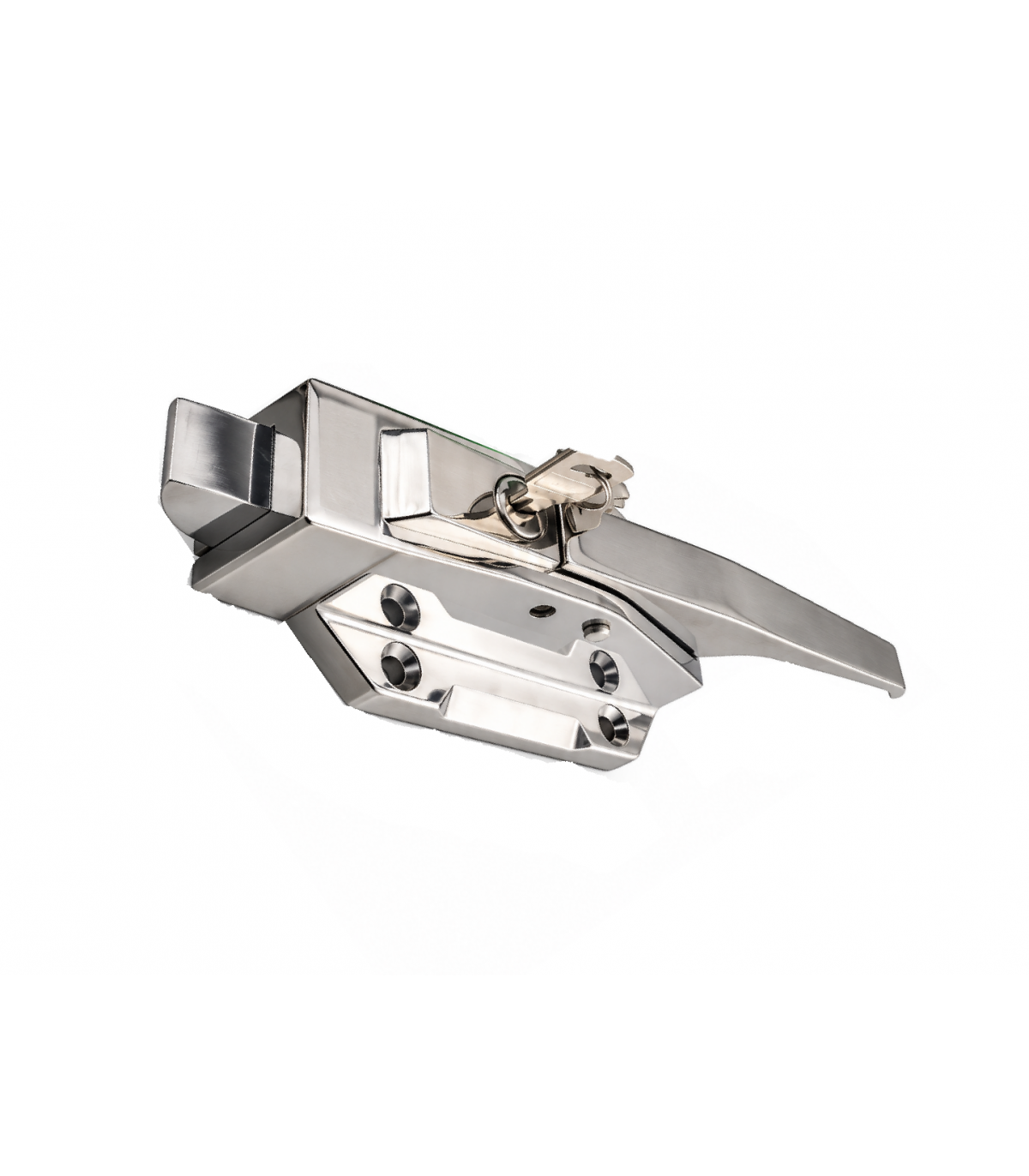

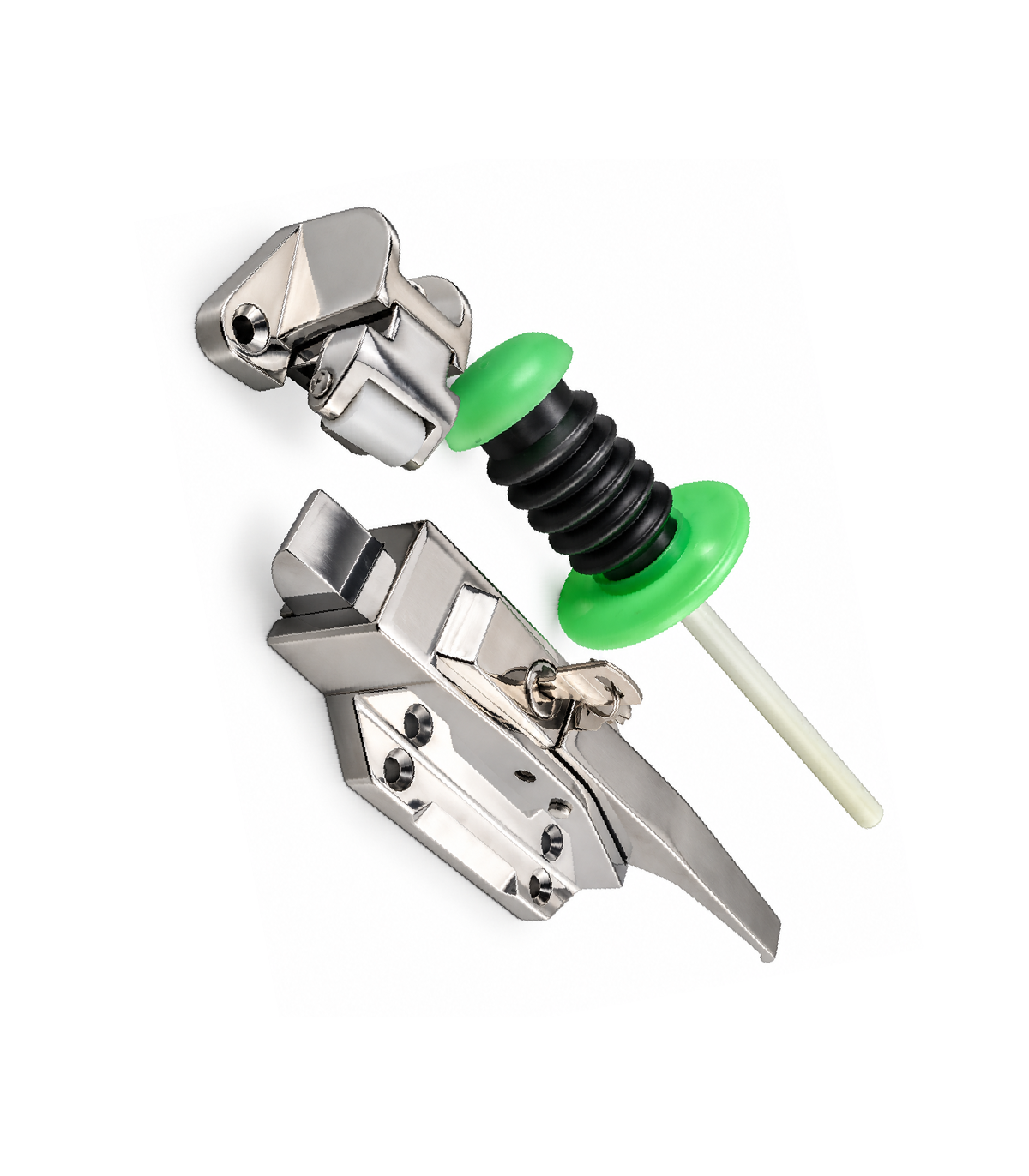

The Hardware Specialist Heavy Duty Freezer Door Handle & Lockset is designed for flat freezer doors requiring a robust external handle and locking mechanism. The set shown is constructed from zinc alloy and incorporates a handle, mounting base, and 100mm push rod. Its design includes an internal release handle and provision for securing the mechanism with a padlock through a 6mm hole. The technical drawing shows an overall handle assembly length of 260mm, with a main body length of 155.5mm and a mounting width of 47mm at the latch side.

The assembly uses M6 screw holes for installation and includes multiple mounting points along the main body. The lockset is suitable for freezer, cold-room, and other flat-door applications where controlled access and secure closure are required. The integrated handle and lock arrangement provides a practical solution for door operation and locking. It is intended for installation on suitable flat doors where the specified dimensions and mounting configuration match the existing hardware.

Features

• Zinc alloy construction
• Integrated handle and locking mechanism
• 100mm push rod
• 6mm padlock provision
• Internal release handle
• M6 screw hole mounting configuration
• Designed for flat freezer and cold-room doors

Specification

• Brand: Hardware Specialist
• Product Type: Freezer Door Handle & Lockset
• Application: Flat Door
• Material: Zinc Alloy
• Push Rod Length: 100mm
• Padlock Hole Diameter: 6mm
• Overall Handle Assembly Length: 260mm
• Main Body Length: 155.5mm
• Latch-Side Mounting Width: 47mm
• Screw Hole: M6
