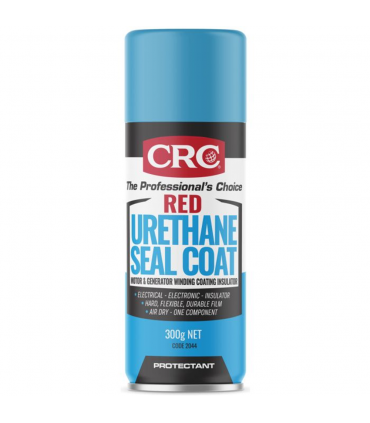

CRC Red Urethane Seal Coat Spray - 300g

CRC Red Urethane Seal Coat Spray - 300g

CRC Red Urethane Seal Coat provides a stable single component polyurethane coating for electrical and electronic applications. It dries fast, adheres well and forms a hard, durable, flexible and non conductive film for electrical motor windings and armature coils.

Due to chemical cross-linking reactions occurring after the drying stage, CRC Red Urethane Seal Coat seals out water and moisture and is resistant to shock, abrasion, salt air and aggressive chemical atmospheres.A special iron oxide pigmentation system yields additional film resistance without sacrificing electrical values.The red coloration allows for easy visualisation and proof of application build.There is no mixing, no clean up, no excessive waste. It is easy to apply and saves time and labour.

The clear coloration allows for visual inspection and is ideal when a see-through coating is required. The red coloration allows for easy visualization and proof of application build.

Features:

• Ready to use – No additional mixing or chemical additives are required. No clean-up.
• High di-electric strength – Ideal for electrical/electronics applications
• Environmental and mechanical protection – Significantly extends product life
• Wide Temperature Range – Up to 100°C
• Fast drying – 15-30 minutes to handle, full cure in 72 hours
• Aerosol – Easy application, no clean-up required
• Corrosion Resistance – Up to 2 years outdoors
• USDA Authorised for use in Federally inspected Meat and Poultry Plants
• NSN 5970-01-101-7019 (Clear), NSN 5970-01-017-5738 (Red)

Specification:

• Brand: CRC
• Product Type: Urethane Seal Coat
• Container Size: 300g
• Package Type: Aerosol Can
• Product Foam: Liquid
• Colour: Clear/Red
• Odour: Faint Aromatic
• Touch Dry: 30 mintues
• Full Cure: 12 hours
• Time to Recoat: Within 40 minutes / after 12 hours
• Temperature Resistance: ≤100°C

Application and Directions

1. Clean the surface thoroughly. Use CRC Lectra Clean
2. Mask area to be sprayed
3. Shake well until the agitator ball is free. Repeat while using
4. Best results are obtained when sprayed above 16°C
5. Additional coats for heavy film should be applied within 48 hours of each other
6. For clean-up, use methylene chloride, or other chlorinated solvents
7. When finished spraying, clean the valve by turning it upside down and pressing the button until only pressure escapes. If clogging occurs, remove the button, and clean the slot and orifice with fine wire
