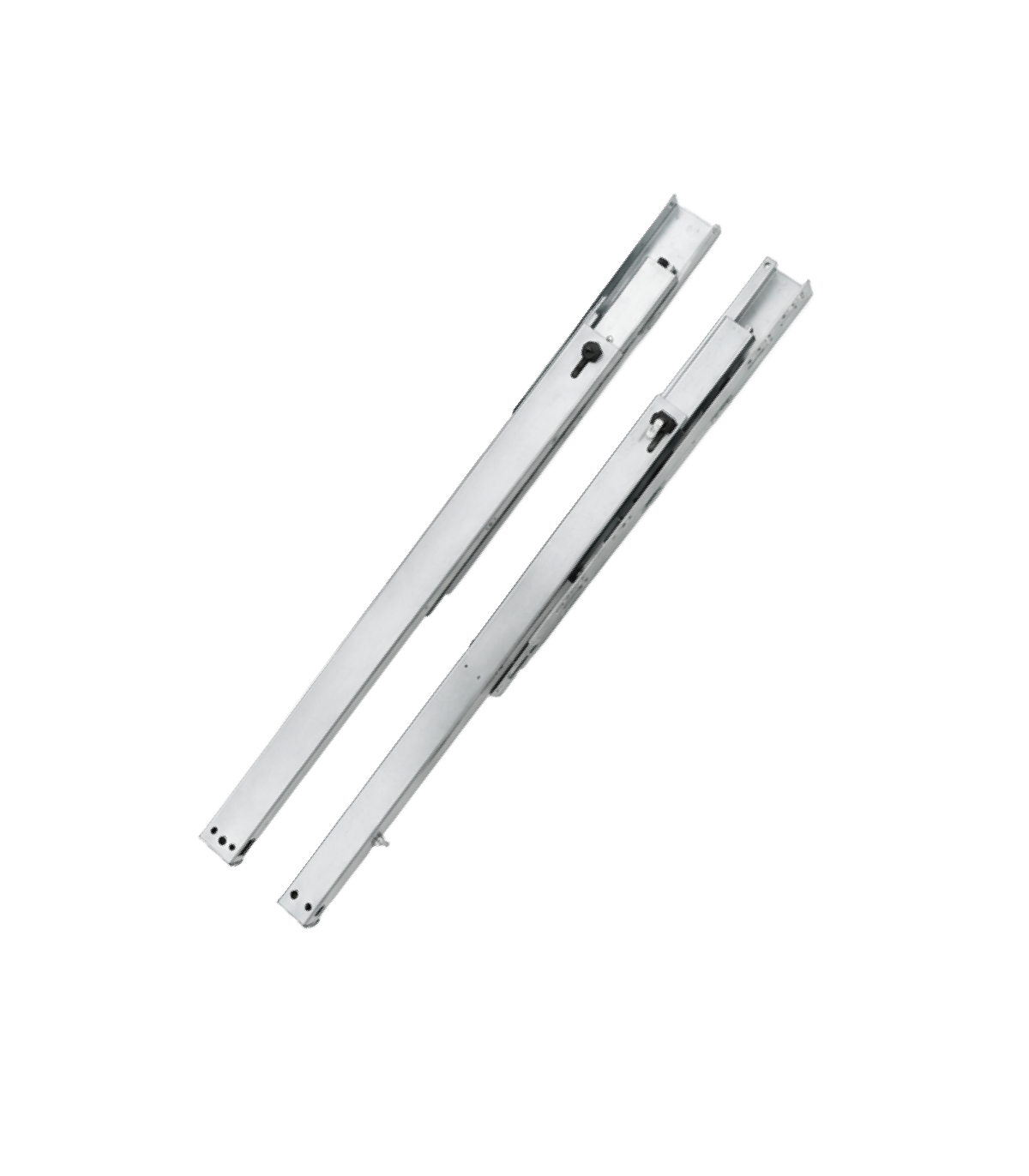

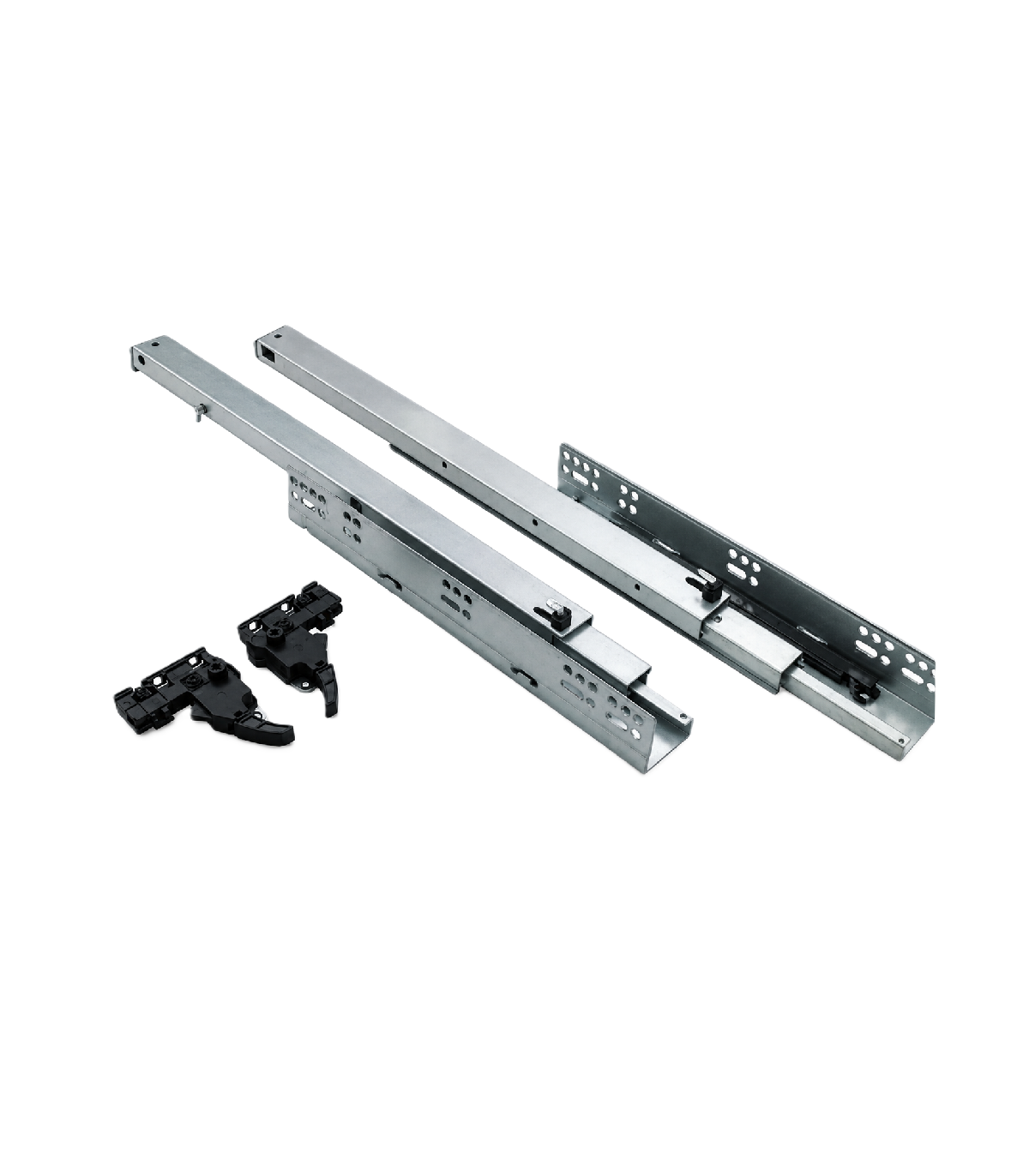

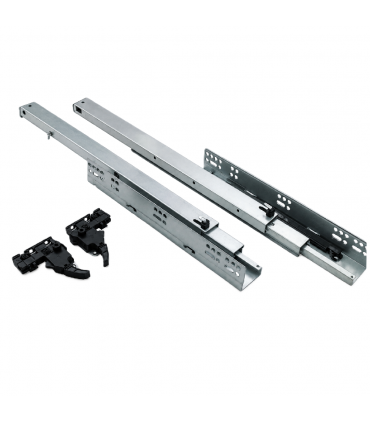

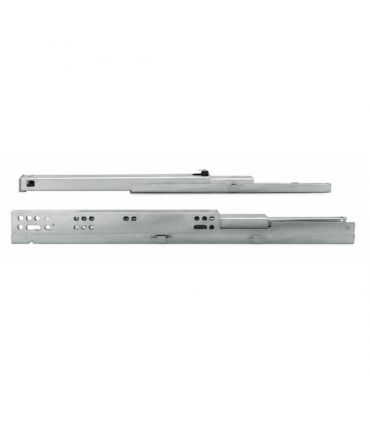

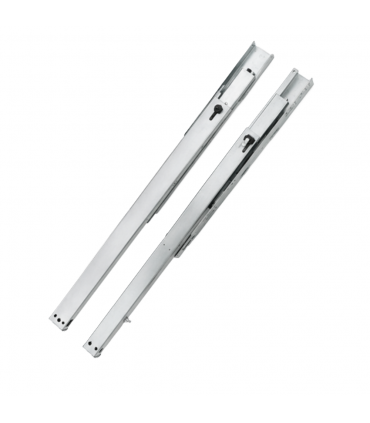

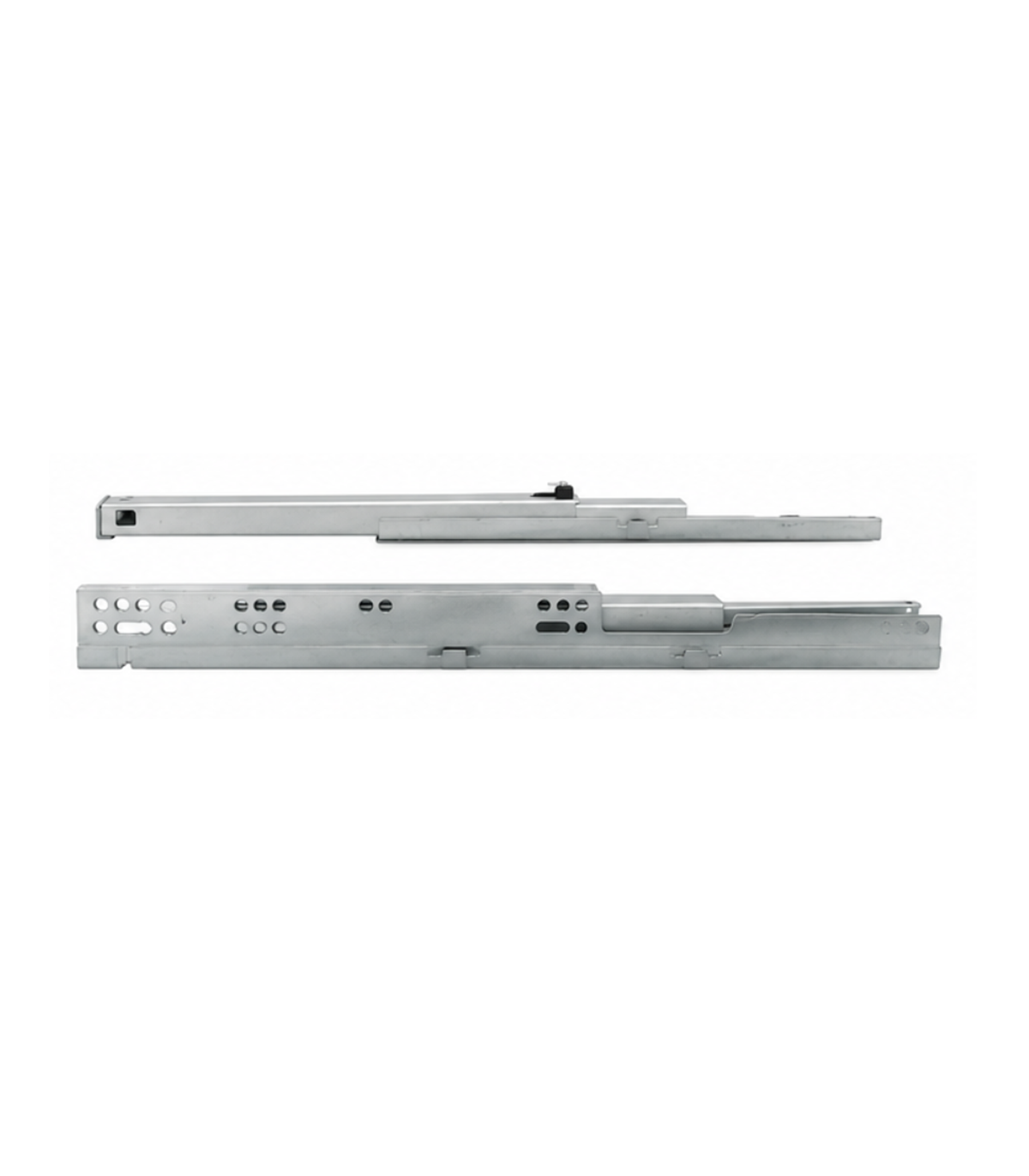

ecoWare 711 Undermount Push and Open Synchronize Drawer Slide

ecoWare 711 Undermount Push & Open Synchronize Drawer Slide

The ecoWare 711 Undermount Push & Open Synchronize Drawer Slide is a premium concealed drawer runner system designed for modern cabinetry and furniture applications. Featuring a synchronized push-to-open mechanism, smooth concealed operation, and soft closing performance, this undermount slide delivers a clean, handle-free drawer design while maintaining excellent stability and durability. Manufactured from galvanized steel with a zinc finish, it is ideal for residential, commercial, office, and furniture projects.

Features

• Concealed undermount drawer slide system
• Push-to-open mechanism eliminates the need for handles
• Synchronized opening system for smoother operation
• Soft-close functionality for quiet and controlled closing
• Heavy-duty galvanized steel construction
• Zinc-coated finish for corrosion resistance
• Bottom-mounted installation design
• Suitable for 18mm drawer side panels
• Smooth and silent drawer movement
• High load capacity for residential and commercial furniture

Specifications

• Brand: ecoWare
• Product Type: Undermount Drawer Slide
• Material: Galvanized Steel
• Finish: Zinc
• Thickness: 1.8mm + 1.5mm + 1.0mm
• Loading Capacity: 35kg per set
• Installation Type: Bottom Mounted
• Drawer Side Panel Thickness: 18mm
• Operation: Push Open & Soft Close
• Mounting Style: Concealed Undermount

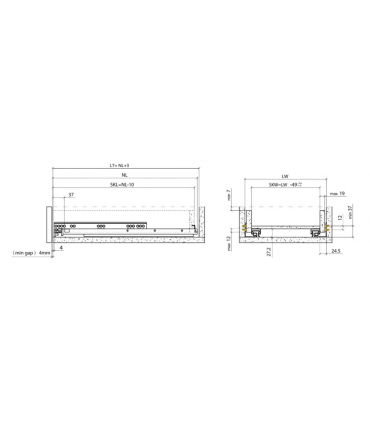

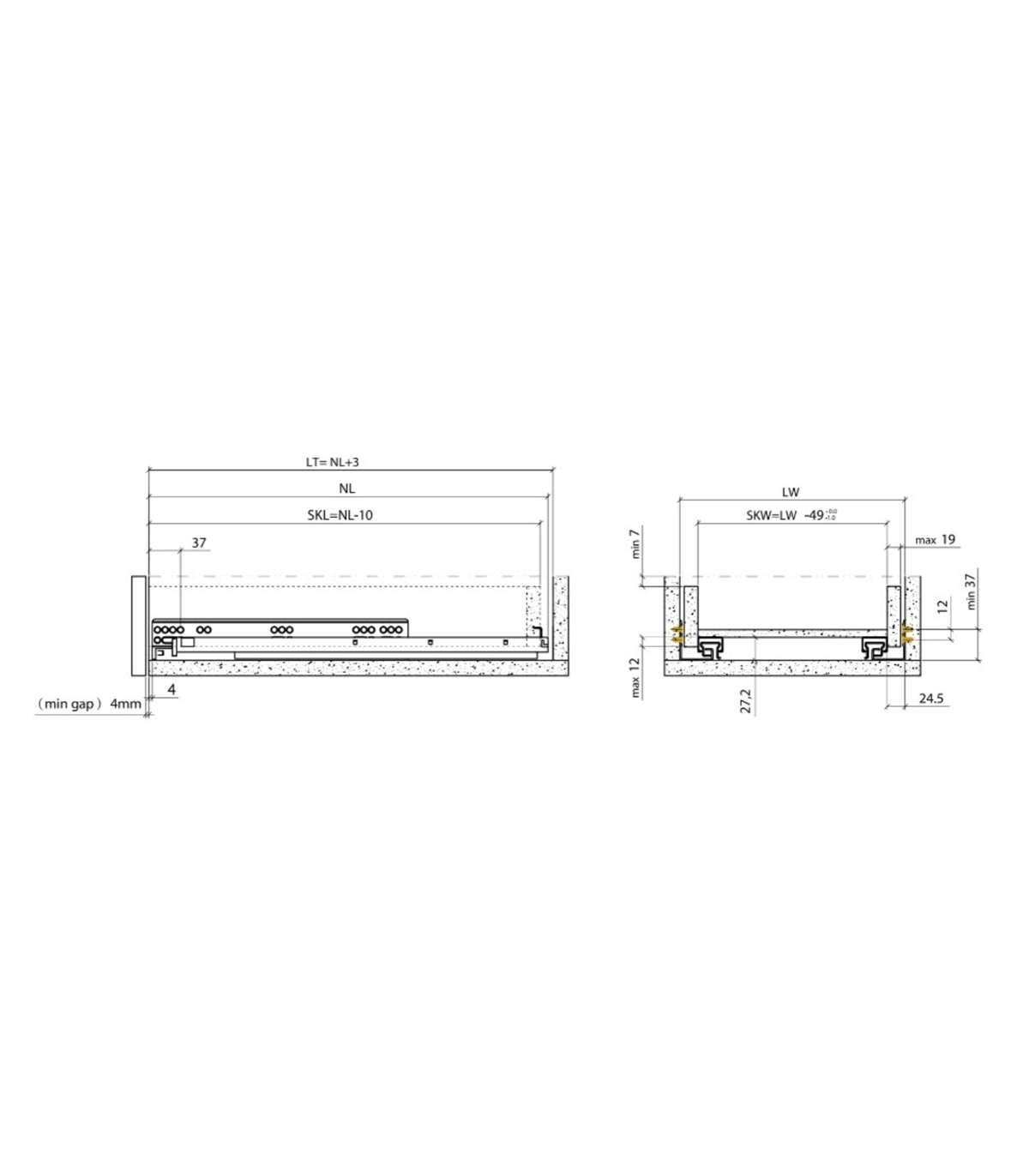

• Minimum Side Clearance: 24.5mm per side
• Maximum Side Panel Thickness: 19mm
• Minimum Cabinet Height Clearance: 37mm
• Bottom Clearance: Maximum 12mm
• Front Gap Requirement: Minimum 4mm

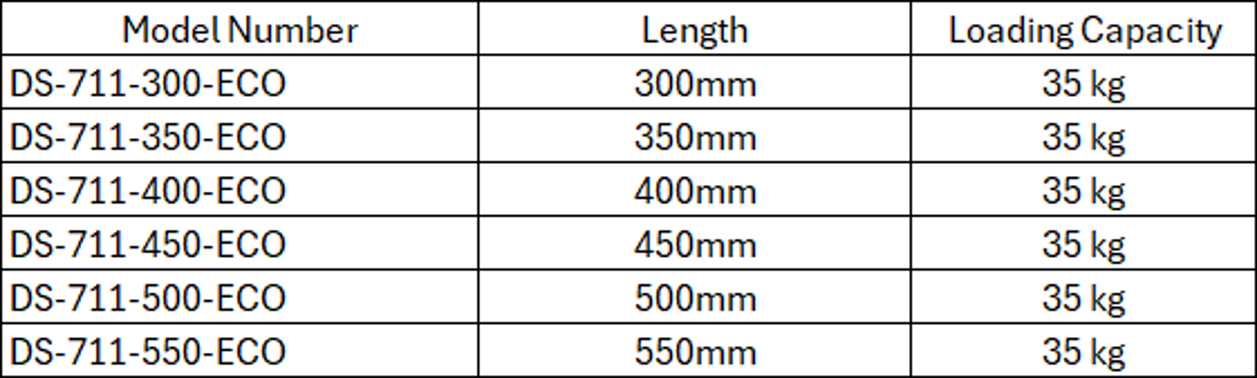

Available Sizes
