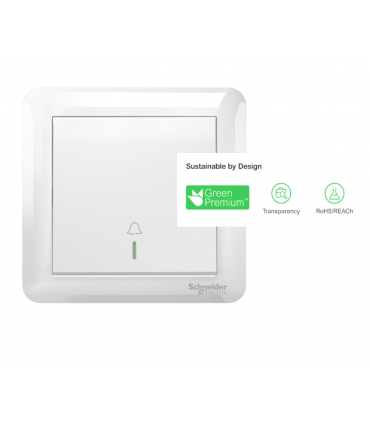

Schneider A3G31BBPB_WE_G11 10A 250V 1 Gang Bell Press Switch - White

Schneider A3G31BBPB_WE_G11 10A 250V 1 Gang Bell Press Switch - White

The Schneider A3G31BBPB_WE_G11 Bell Press Switch is a high-quality, durable, and elegantly designed switch crafted for residential and commercial use. Designed with functionality and safety in mind, this 1-gang bell press switch is ideal for doorbells or other momentary contact applications. Its sleek white finish easily complements modern or traditional interiors, adding a subtle yet sophisticated touch to any space.

Features:

• Toxic heavy metal-free
• Mercury-free
• RoHS exemption information
• REACh free of SVHC
• 1 Gang Design: Single switch unit, perfect for operating doorbells or similar momentary applications.
• Rated Voltage: 250V, ensuring compatibility with standard electrical systems.
• Current Rating: 10A, capable of handling typical electrical loads in residential or commercial settings.
• High Durability: Made from premium materials that offer long-lasting performance.
• Elegant White Finish: Sleek and simple design that blends seamlessly with any decor.
• Easy Installation: Designed for quick and simple installation with standard wiring configurations

Specification:

• Brand: Schneider
• Product Type: Bell Press Switch
• Colour: White
• Range: Affle Plus
• Device Application: Bell switch
• Load Type: Bell chime Other loads
• Device Mounting: Flush
• Switch Function: Bell push switch
• Rated Current: 10 A at 250 V AC
• Number of Gangs: 1 gang
• Embedding Depth: 24.9 mm
• Width: 86 mm
• Height: 86 mm
• Depth: 35.6 mm
• Connections - terminals: Brass terminal and Screw terminal
• Material: Polycarbonate
• Cable Cross Section: 4 mm² stranded cable, 2.5 mm² solid cable, 2.5 mm² stranded cable, 2 x 4 mm² solid cable for AC
• Maximum Ambient Air Temperature for Operation: 35 °C
• Relative Humidity: 0…95 %
• Operating Altitude: 5000 m
• Product Certifications: IEC
• Standards: BS EN 60669-1, MS IEC 60669-1, IEC 60669-1
