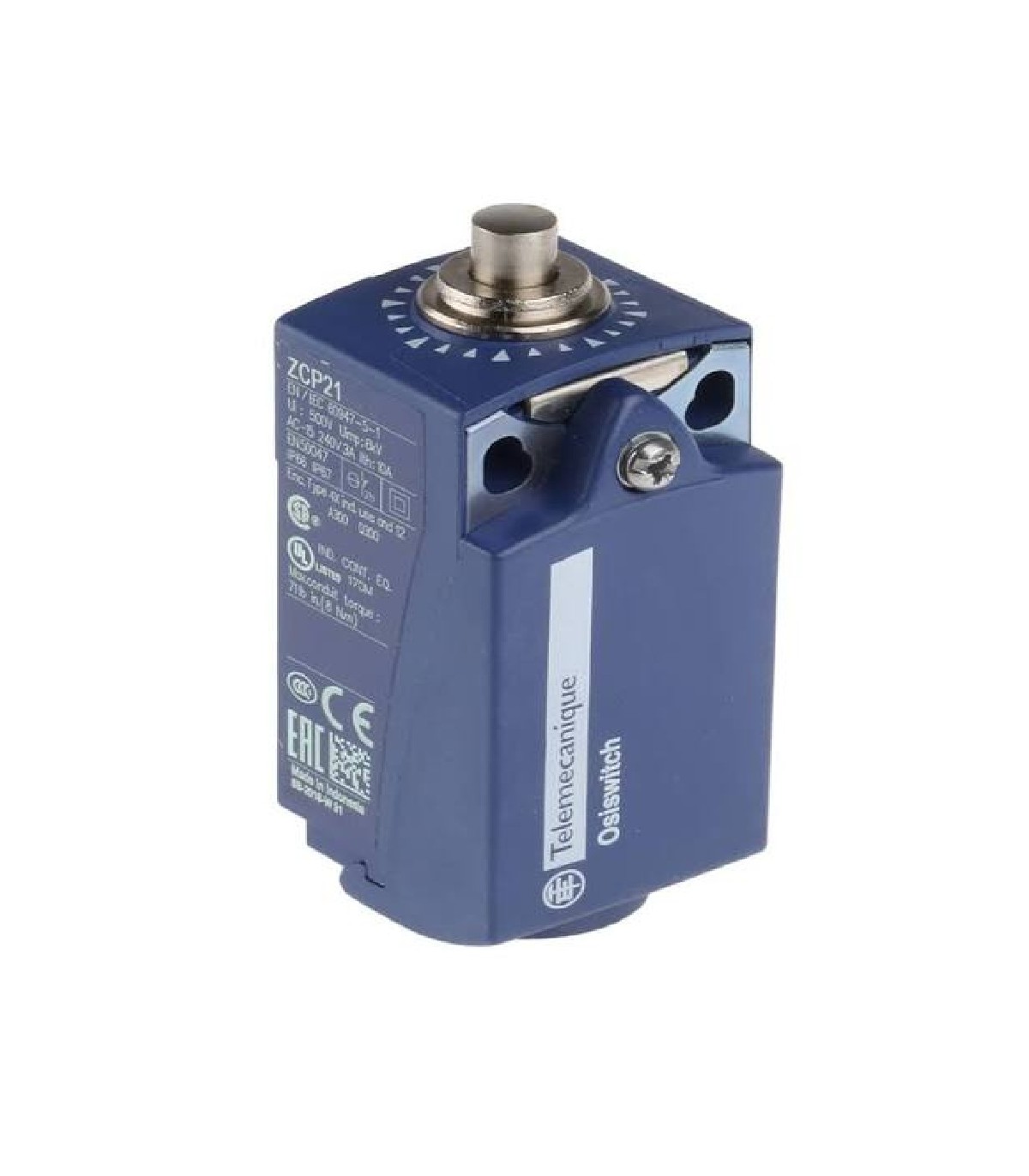

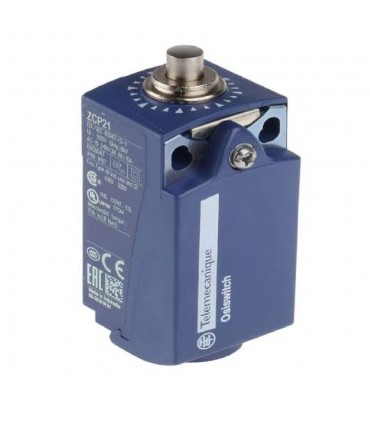

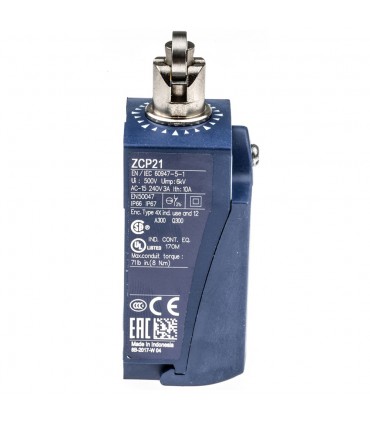

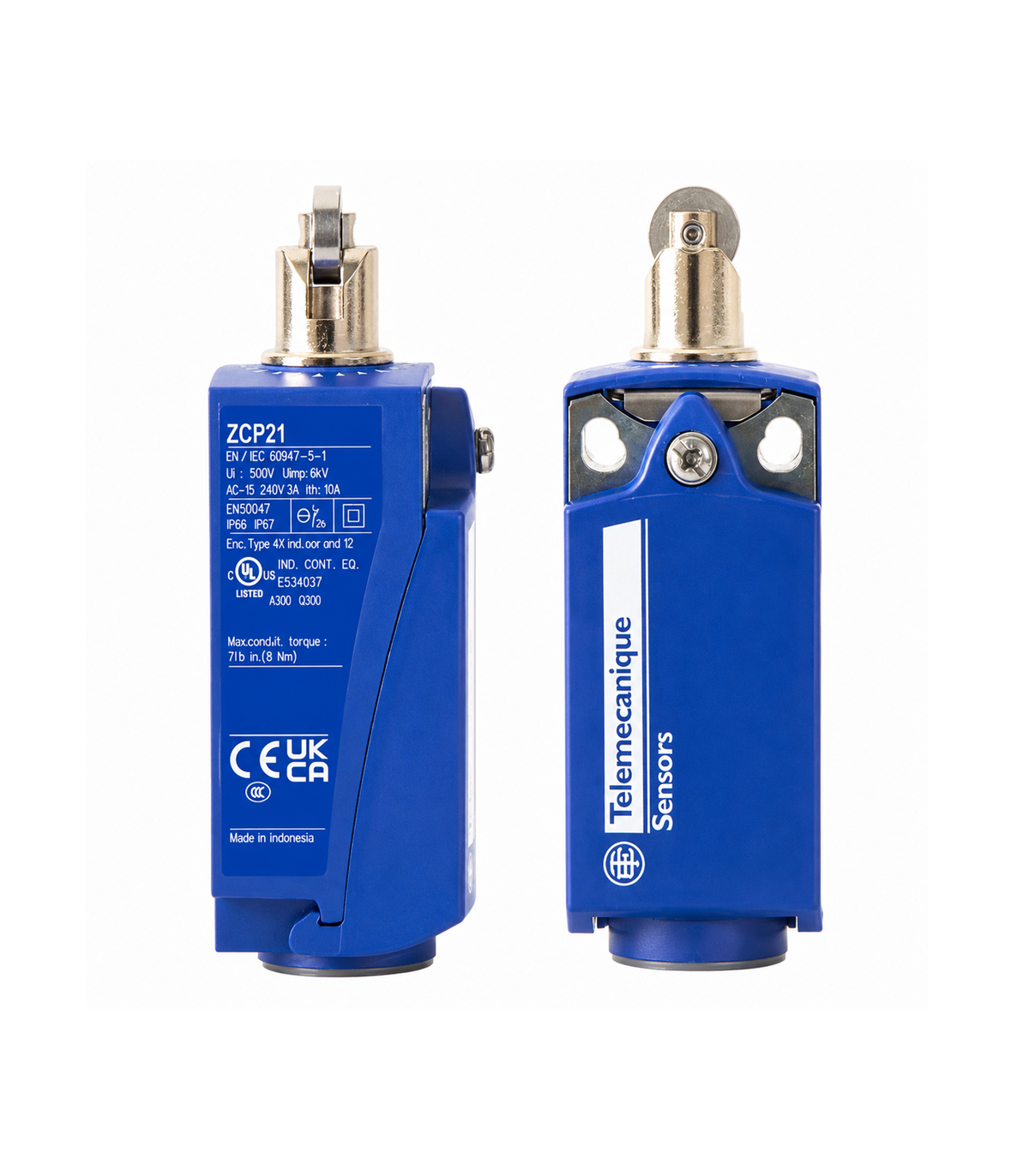

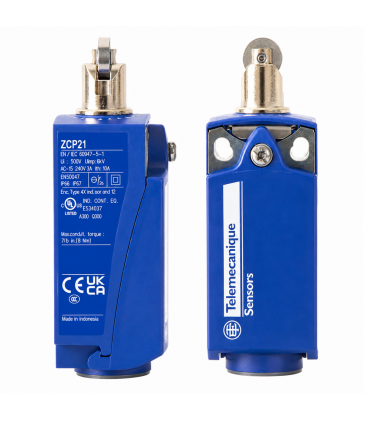

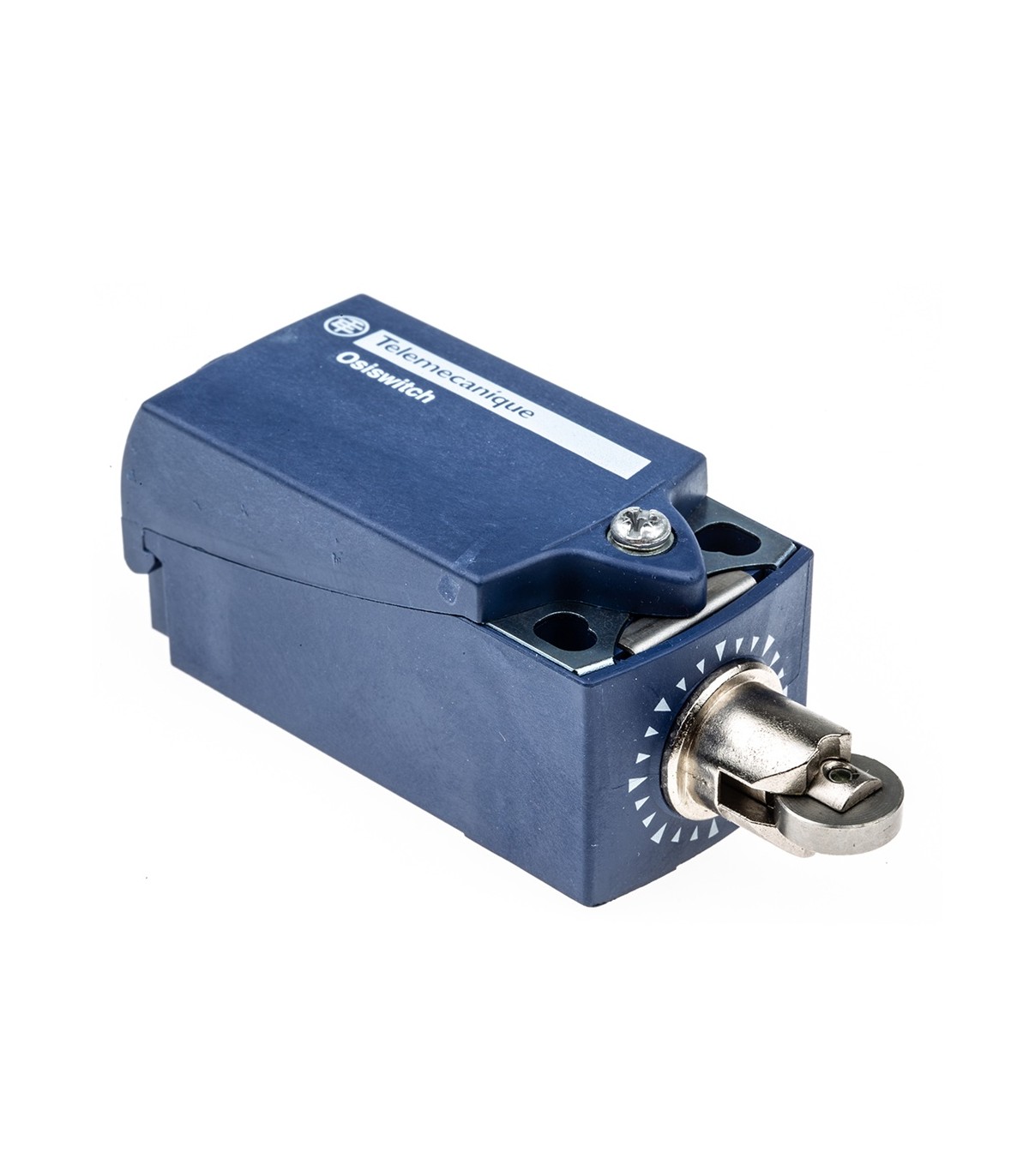

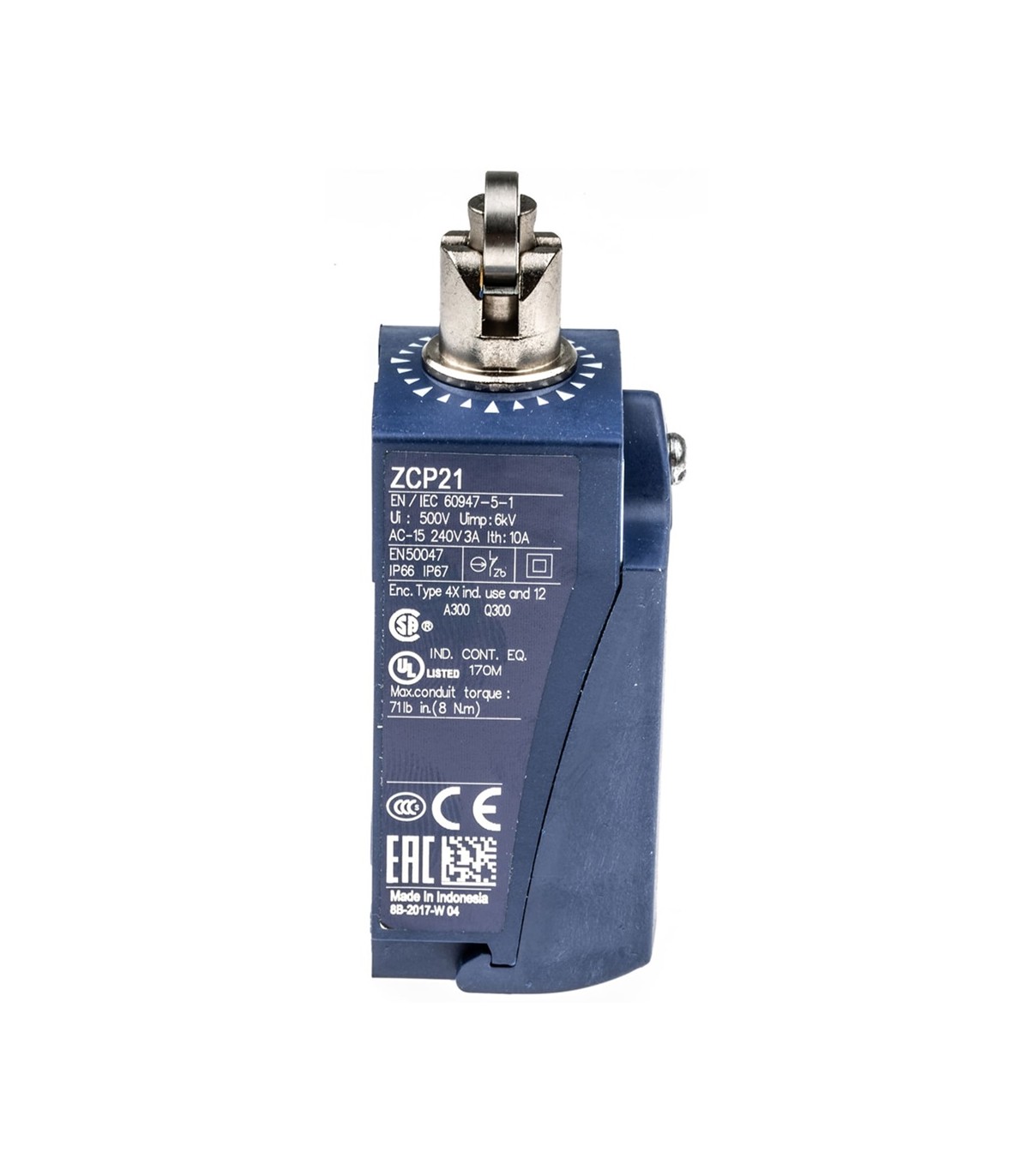

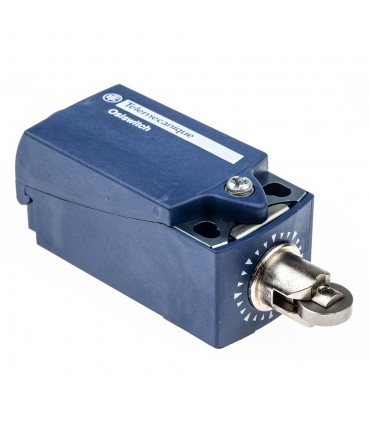

Telemecanique Sensors XCKP2102P16 XC Standard M16 Limit Switch

Telemecanique Sensors XCKP2102P16 XC Standard M16 Limit Switch

The Telemecanique Sensors XCKP2102P16 XC Standard M16 Limit Switch is a compact industrial position switch designed for reliable machine control and automation applications. Featuring a spring-return metal roller plunger with snap-action contacts, it provides precise position detection, fast switching, and long mechanical service life. The rugged plastic housing and durable Zamak plunger head offer excellent resistance to demanding industrial environments, while the M16 cable entry ensures simple and secure installation. Designed in accordance with CENELEC EN 50047, the XCKP2102P16 is ideal for conveyors, packaging machines, material handling equipment, and automated production systems.

Features

• Compact XC Standard industrial limit switch
• Spring-return metal roller plunger actuator
• Snap-action switching mechanism
• 1 Normally Closed (NC) + 1 Normally Open (NO) contact configuration
• Fixed body with linear plunger movement
• Plastic housing with durable Zamak plunger head
• Positive opening contacts for enhanced operational safety
• M16 x 1.5 cable entry for secure wiring
• Lateral actuation from two directions
• High repeat accuracy for consistent switching performance
• Suitable for demanding industrial automation applications

Specifications

• Brand: Telemecanique Sensors
• Model: XCKP2102P16
• Series: XC Standard
• Product Type: Limit Switch
• Device Type: XCKP
• Sensor Design: Compact Form C (CENELEC EN 50047)
• Body Type: Fixed
• Head Type: Plunger Head
• Actuator Type: Spring Return Metal Roller Plunger
• Contact Configuration: 1 NC + 1 NO
• Contact Operation: Snap Action
• Switch Actuation: By 30° Cam
• Electrical Connection: Screw Clamp Terminals
• Cable Entry: 1 × M16 x 1.5
• Suitable Cable Diameter: 4–8 mm
• Body Material: Plastic
• Head Material: Zamak
• Ingress Protection: IP66 / IP67

Applications

• Industrial automation systems
• Packaging machinery
• Conveyor systems
• Material handling equipment
• Manufacturing production lines
• Machine position detection
• Factory automation
• Industrial safety interlocking systems
