Hardware Specialist BS-215B 15A 500V 2.2kW Power Push Button

Hardware Specialist BS-215B 15A 500V 2.2kW Power Push Button

The Hardware Specialist Power Push Button BS-215B is a three-phase ON/OFF motor control switch designed for directly starting and stopping compatible electric motors. It is rated at 15A and 500V, with a stated motor capacity of up to 2.2kW. The switch uses separate ON and OFF push buttons for straightforward manual operation and is intended for machinery power control applications. Available product information identifies the BS-215B as a power push button switch suitable for motor equipment and machinery such as machine tools and textile machinery. Its enclosure and internal components are constructed from iron, Bakelite and copper, providing a robust mechanical form for industrial use.

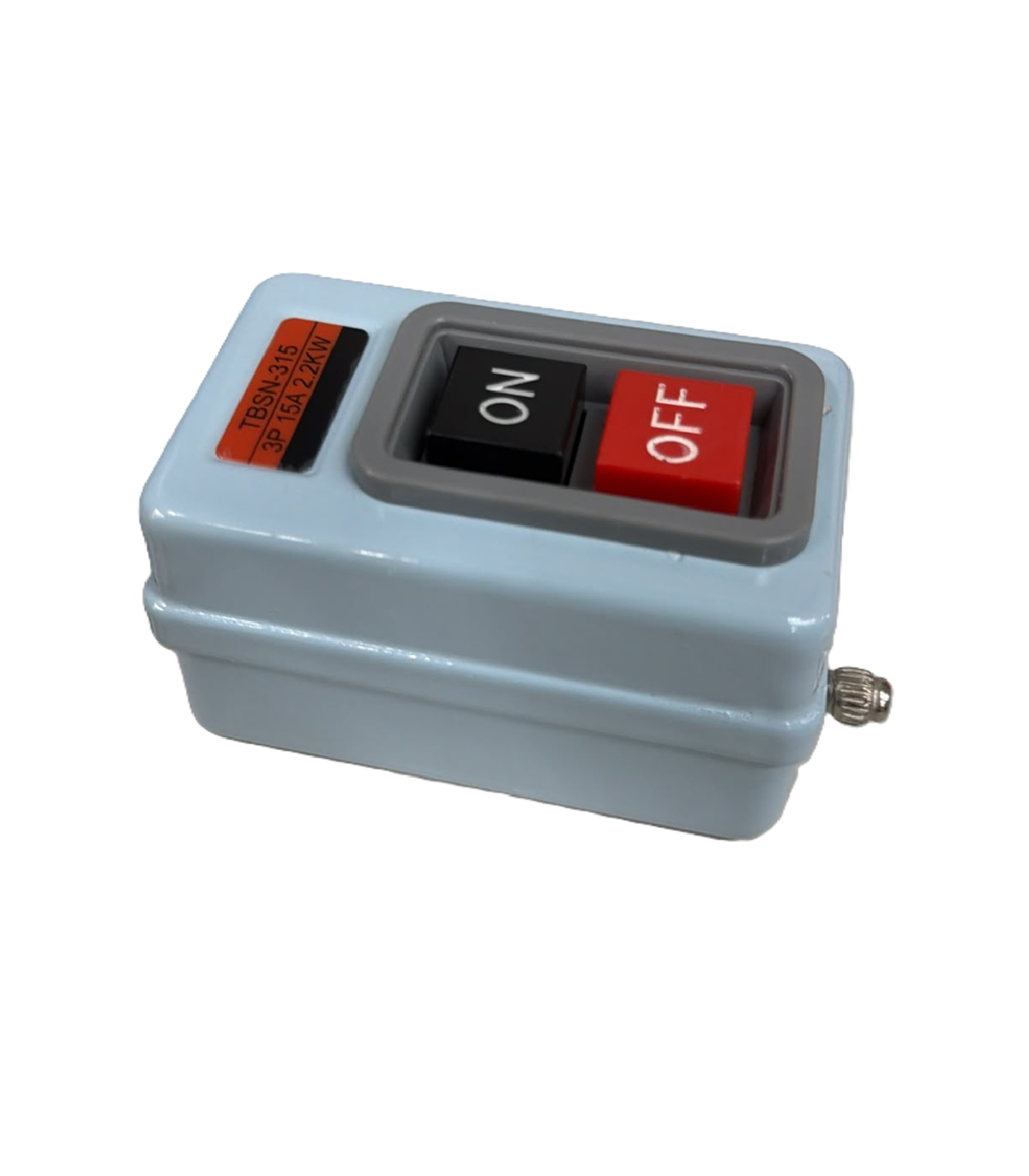

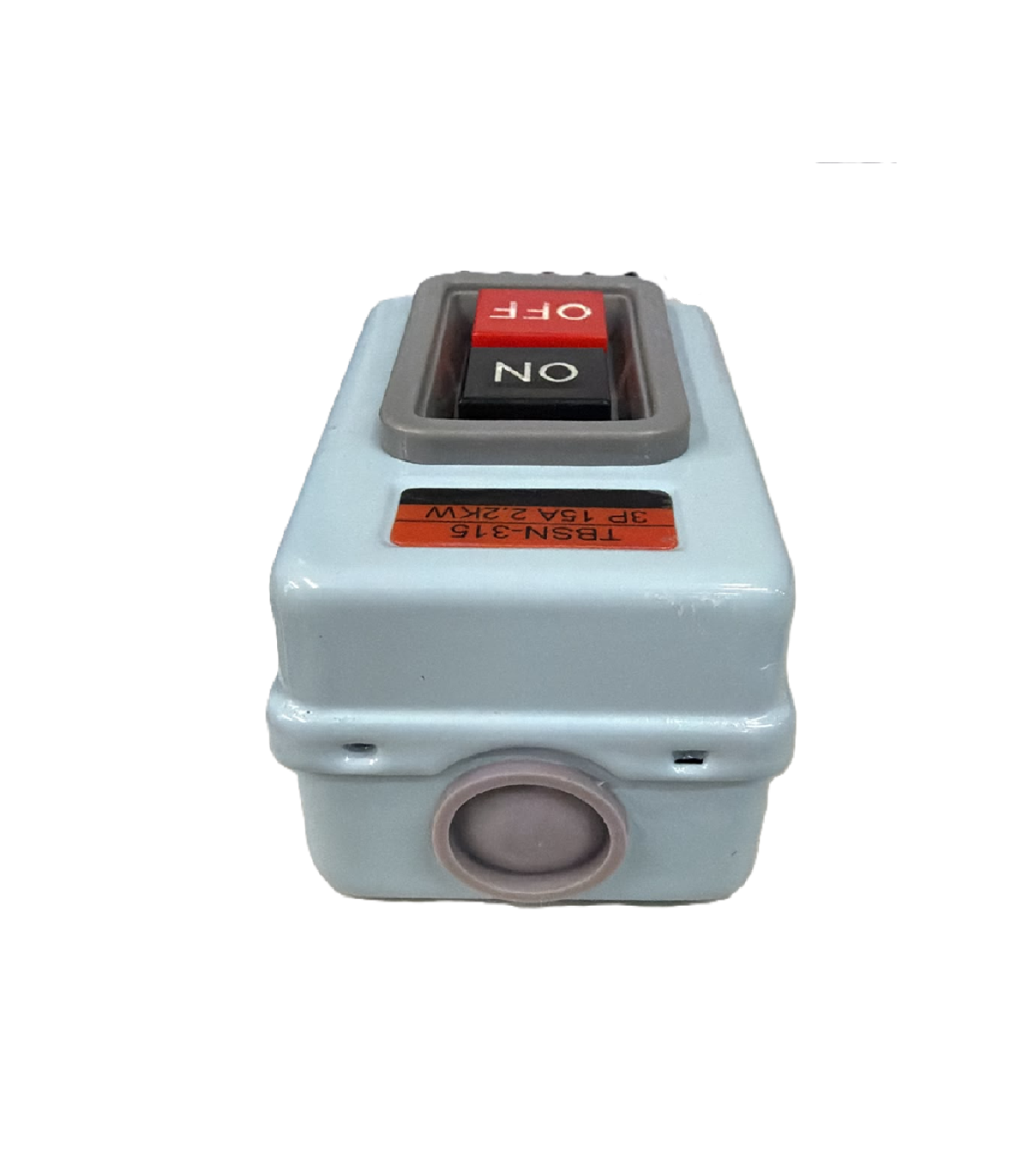

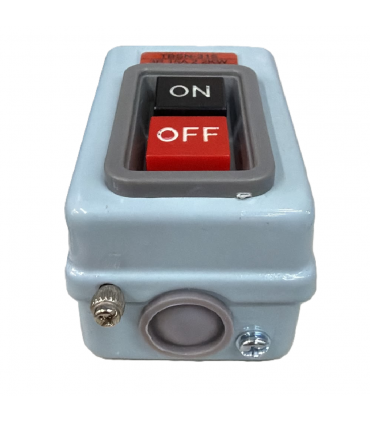

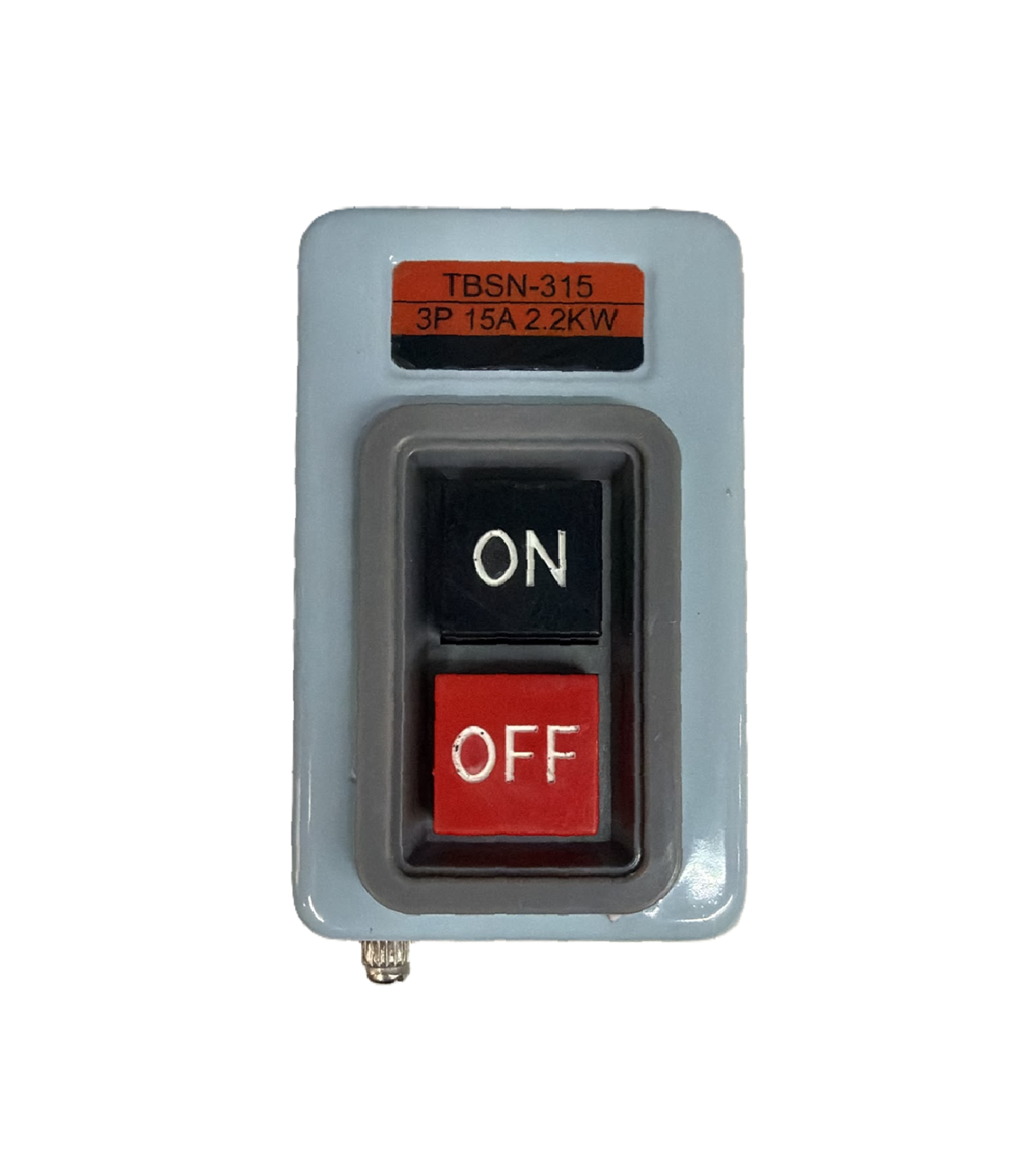

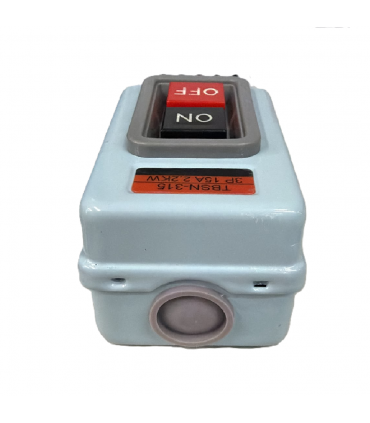

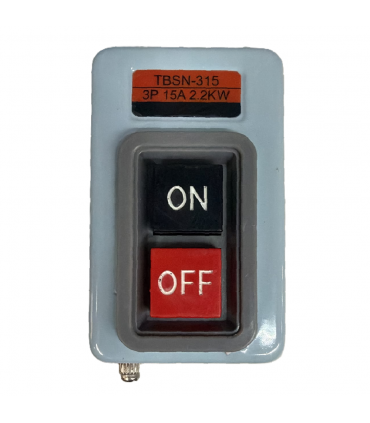

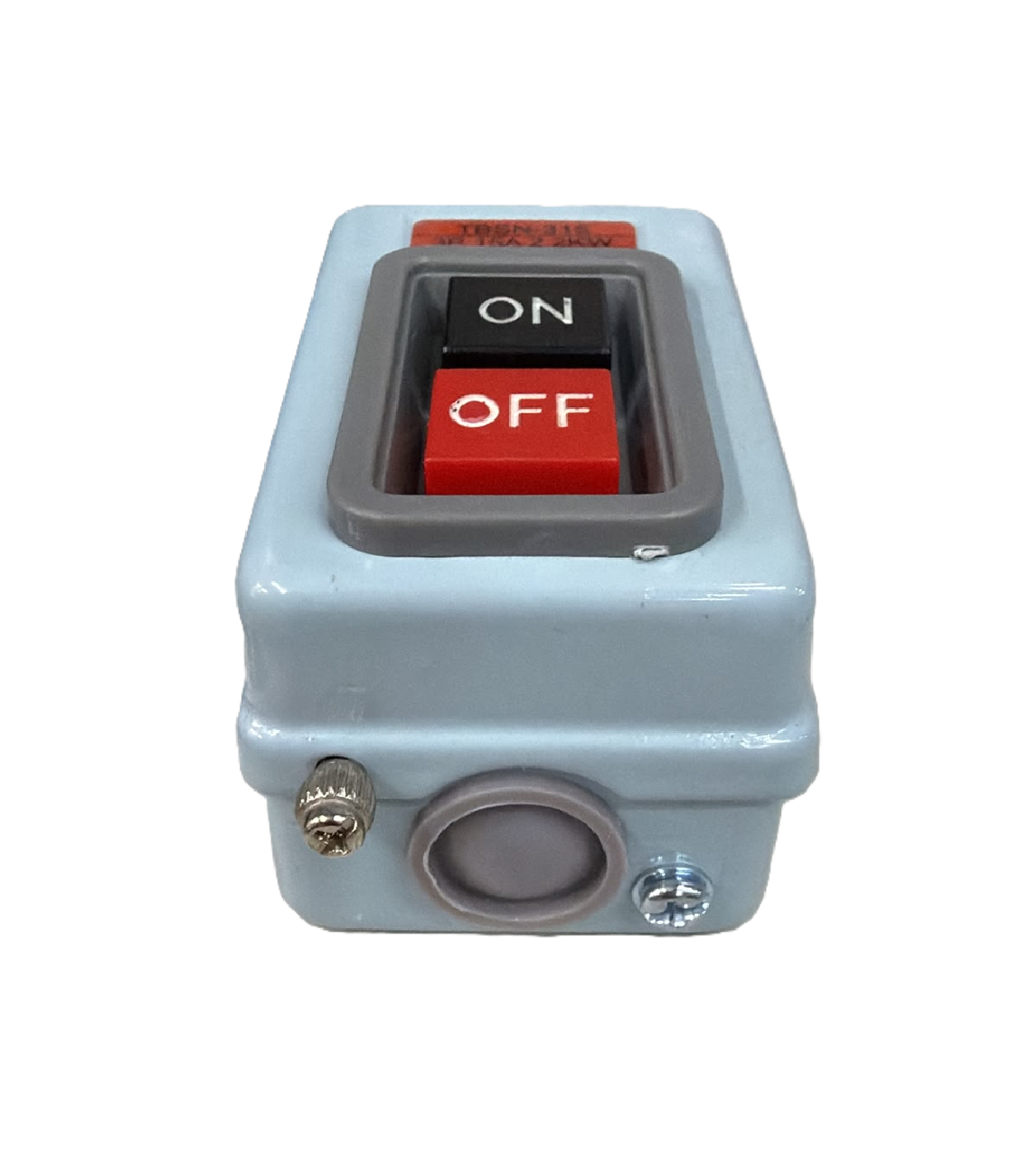

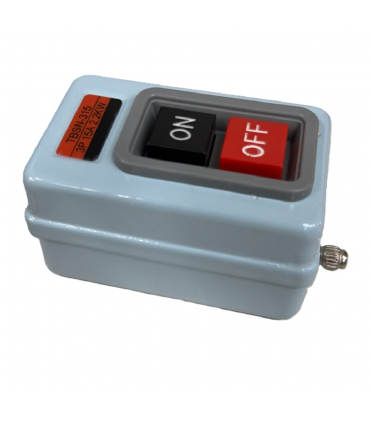

The switch is intended for direct motor control and should be installed within its rated electrical specifications. The supplied image shows an ON/OFF power push-button enclosure. Please note that the photographed label appears to read TBSN-315 rather than BS-215B; therefore, verify the physical model marking before listing or installation. No accessories are confirmed as included.

Features

• 15A rated current
• 500V rated voltage
• 2.2kW motor capacity
• Three-phase power control
• Separate ON and OFF push buttons
• Designed for direct motor starting and stopping
• Iron, Bakelite and copper construction

Specification

• Brand: Hardware Specialist
• Product Type: Power Push Button
• Model: BS-215B
• Rated Voltage: 500V AC
• Operating Voltage: 110V/220V
• Rated Current: 15A
• Motor Capacity: 2.2kW
• Phase: Three Phase
• Switch Configuration: ON/OFF
• Construction Material: Iron, Bakelite and Copper
• Application: Motor and Machinery Power Control
