Moco MCH110 Soft-Closing Concealed Vanity Table Hinge

Moco MCH110 Soft-Closing Concealed Vanity Table Hinge – Hidden Lift-Up Mechanism

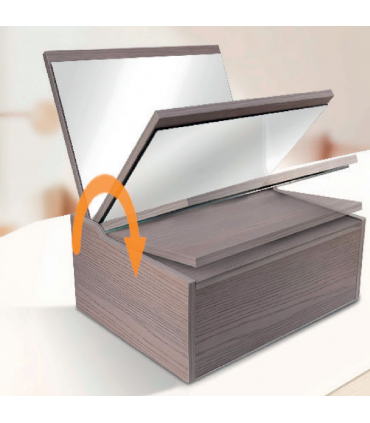

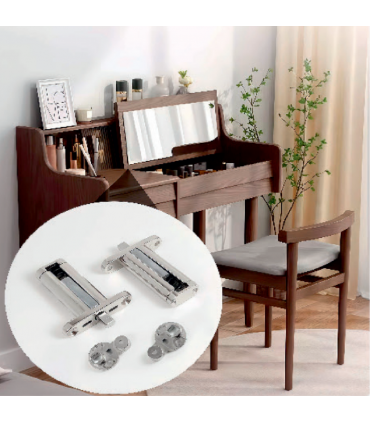

The Moco MCH110 Soft-Closing Concealed Vanity Table Hinge is a premium hidden hinge system designed for vanity tables, dressing tables, and compact work surfaces. Made from high-strength zinc alloy, it offers smooth soft-closing functionality to prevent slamming and ensure long-lasting durability. The concealed design maintains a clean, modern appearance while providing stable and secure lift-up or fold-down motion. With its quick-install feature and reliable load-bearing capacity, the MCH110 is ideal for space-saving furniture applications where function and aesthetics are equally important.

Features

• Soft-closing function prevents abrupt closing and enhances durability
• Quick-install design for fast and easy setup
• Concealed hinge style keeps the mechanism hidden for a sleek appearance
• Durable zinc alloy construction ensures long-term strength and corrosion resistance
• Supports panel height up to 450mm and width up to 500mm

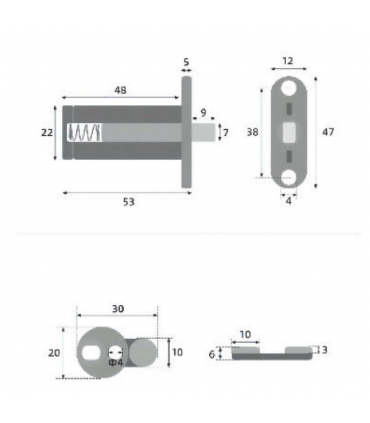

Specification

• Brand: Moco
• Product Type: Vanity Table Hinge
• Model: MCH110
• Material: Zinc Alloy
• Soft-Closing: Yes
• Loading Capacity: 4–10kg
• Panel Height: Max. 450mm
• Panel Width: Max. 500mm
• Panel Thickness: 16–22mm
• Function: Soft-closing, quick-install concealed hinge
• Application: Vanity tables, foldable tops, dressing furniture, compact desk systems
