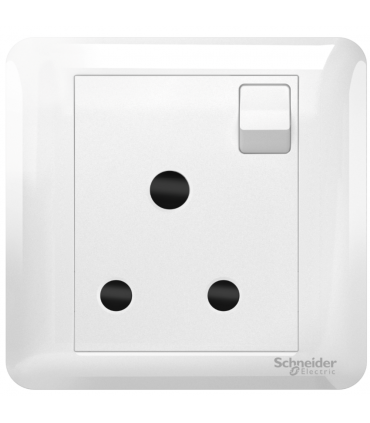

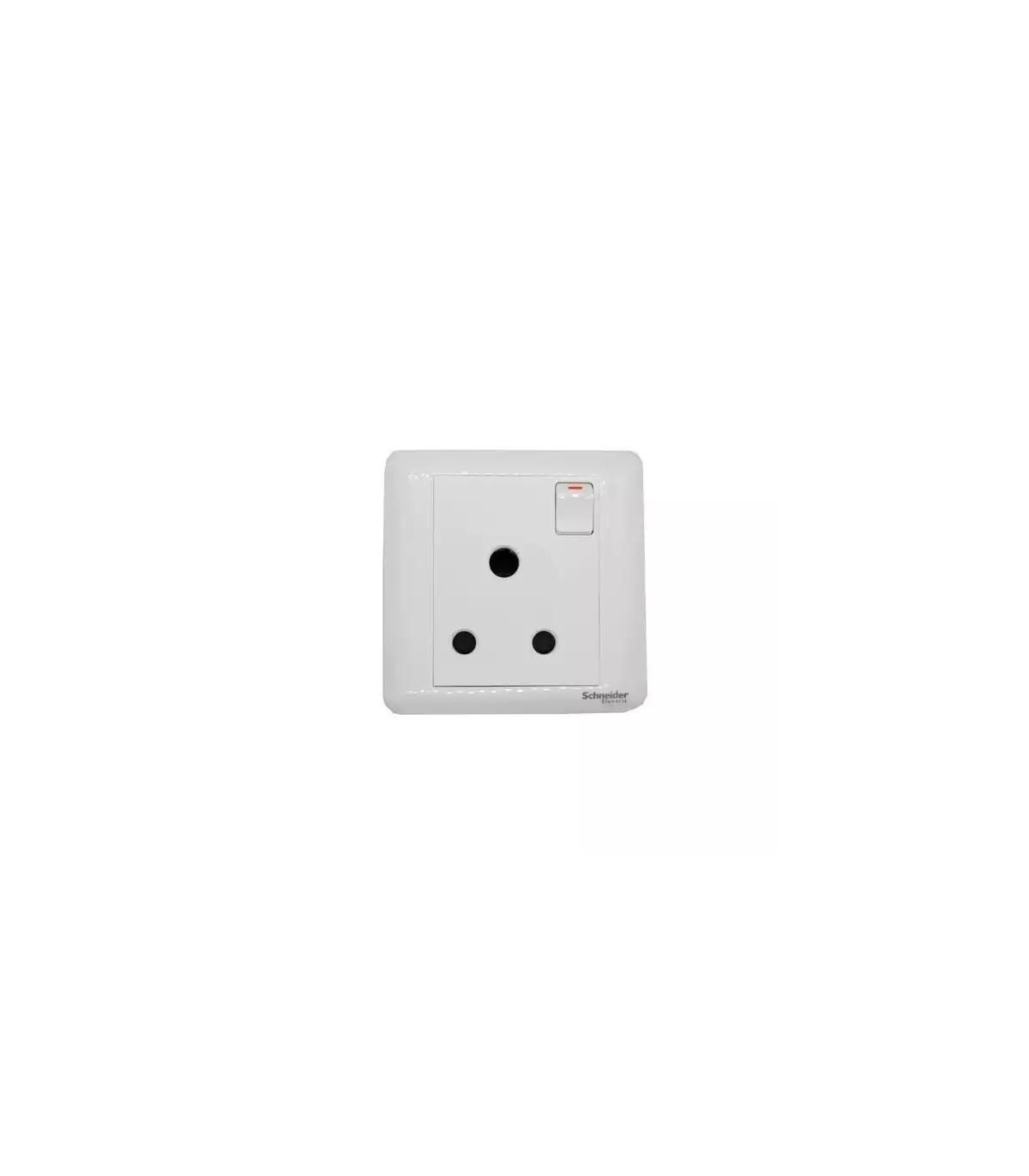

Schneider A3G15_15_WE_G2 15A 250V 1 Gang 3 Round Pin Switched Socket - White

Schneider A3G15_15_WE_G2 15A 250V 1 Gang 3 Round Pin Switched Socket - White

The Schneider A3G15_15_WE_G2 is a high-quality, reliable switched socket designed for electrical systems requiring 15A and 250V. This 1-gang socket features 3 round pins, offering secure connectivity for a wide range of electrical appliances. Its sleek white finish complements modern interiors, making it a versatile choice for both residential and commercial spaces. With Schneider's trusted engineering, this socket guarantees safety, durability, and ease of use.

Features:

• 15A, 250V Capacity: Suitable for high-power electrical appliances
• 1 Gang, 3 Round Pin Design: Standard configuration for a wide range of electrical plugs
• Switched Socket: Built-in switch for easy control of the connected device, adding convenience and safety
• High-Quality Construction: Engineered for long-lasting durability and performance
• Sleek White Finish: Neutral design that blends seamlessly with modern and traditional interiors

Specifications:

• Brand: Schneider
• Product Type: Switched Socket
• Colour: White
• Outlet Poles Configuration: 3P with shutter
• Outlet Standard Description: With earthing contact
• Outlet Standard Deviation: BS 1363
• Number of Terminals: 3
• Socket Number: 1
• Device Mounting: Flush
• Fixing Mode: Screw
• Surface Finish: Glossy
• Surface Treatment: Untreated mechanism cover
• Rated Current: 15 A socket-outlet
• Operational Voltage: 250 V AC 50/60 Hz
• Service Life in Cycles: 15000 cycles
• Electrical Durability: 5000 cycles
• Connections - Terminals: Pillar terminal
• Screwdriver Shape: Philips No 2
• Number of Cables: 2
• Wire Stripping Length: 14 mm
• Material: Polycarbonate
• Height: 86 mm
• Width: 86 mm
• Depth: 33.6 mm
• Embedding Depth: 23.7 mm
• Weight: 0.07 kg
• Ambient Air Temperature for Storage: -5…60 °C
• Ambient Air Temperature for Operation: -5…45 °C
• Clamping Connection Capacity: 2.5...4 mm² for rigid cable(s), 2.5...4 mm² for stranded cable(s), 2.5...4 mm² for flexible cable(s)
• Relative Humidity: 0.95 %
• Product Certifications: SIRIM
• IP Degree of Protection: IP20

Sustainability:

The Green PremiumTM label is Schneider Electric’s commitment to delivering products with best-in-class environmental performance. Green Premium promises compliance with the latest regulations, transparency on environmental impacts, and circular and low-CO2 products.

A Guide to Assessing Product Sustainability is a white paper that clarifies global eco-label standards and how to interpret environmental declarations.
