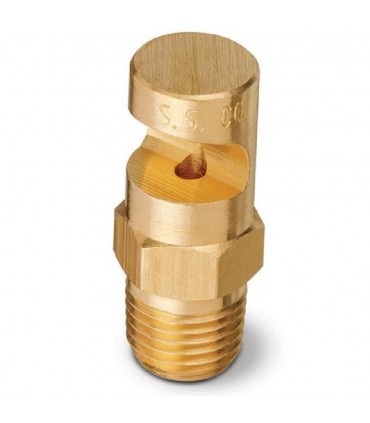

High Flow 3/4K-100 Brass Wide Angle Flat Spray Nozzle

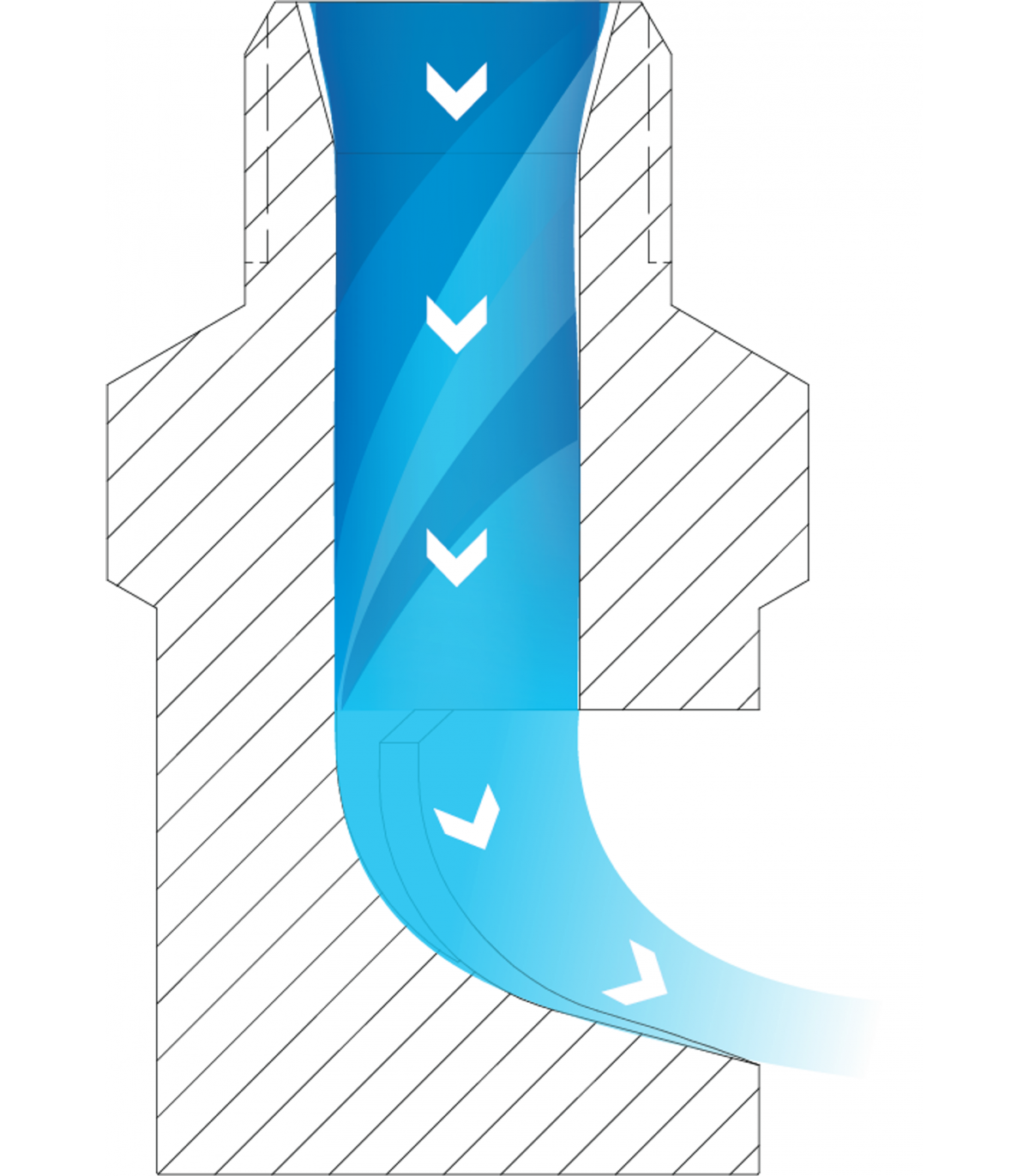

The Spraying Systems Nozzle model 3/4K-100 is a high-performance, brass-constructed nozzle delivering wide-angle flat fan spray coverage and exceptional durability. Engineered to minimize clogging, its deflector-style design ensures the orifice is shielded from damage while producing a uniform spray distribution across a broad angle—ranging between 123° at 7 psi, 136° at 20 psi, and up to 145° at 60 psi—for superb application consistency. Operating between 3 and 60 psi, this nozzle delivers flow rates from approximately 5.5 to 24 gpm, suitable for diverse coverage needs. Crafted from durable brass and featuring a male NPT thread in a 3/4-inch size, its build quality ensures longevity and performance in demanding environments. Ideal for horizontal mounting scenarios, the 3/4K-100 is the smart choice for applications requiring wide, even spray patterns, minimal maintenance, and reliable operation.
Features
- Brass construction with male NPT 3/4″ connection
- Wide flat spray angle: 123°–145° depending on pressure
- Clog-resistant deflector design protects the orifice
- Uniform spray distribution with high durability
Specifications
- Brand: Hardware Specialist
- Product Type: Nozzle
- Material: Brass
- Inlet Connection Type: Male NPT, 3/4 in
- Operating Pressure: 3–60 psi
- Flow Rate: 5.5–24 gpm
- Spray Angle: 123° @ 7 psi; 136° @ 20 psi; 145° @ 60 psi
- Weight: 14 oz
- Body Hex Size: 1-1/2 in
- Length: 2.563 in
- Relative Drop Size: 100–5,000 µm
