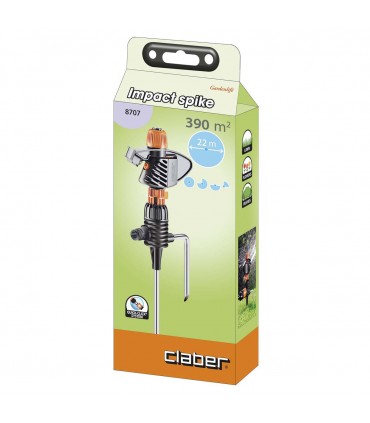

Claber Impact Sprinkler

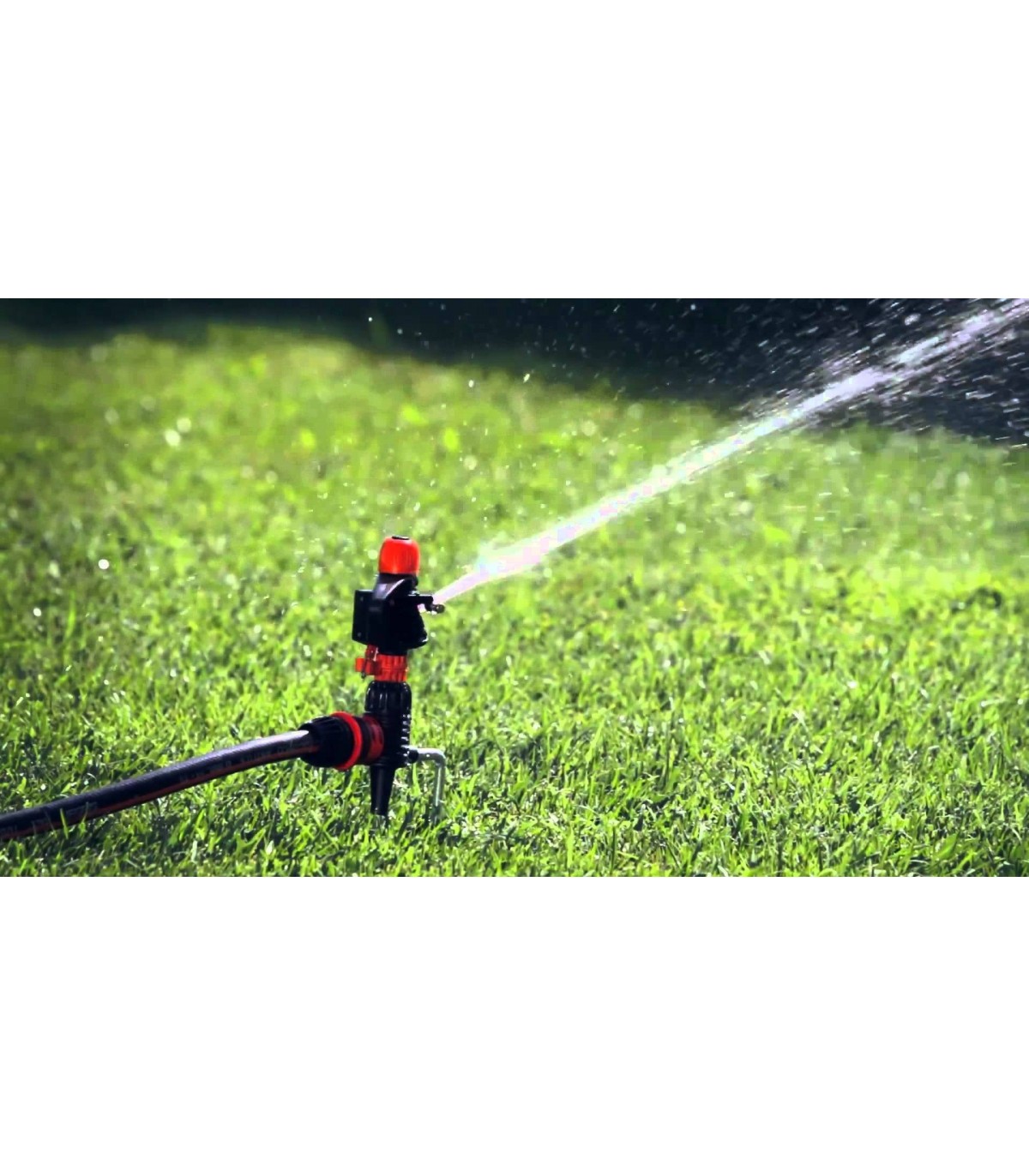

Pulsating sprinkler, it remains stably anchored in the ground thanks to the double spike and it waters an area of considerable dimensions. Pulsating sprinkler head providing 0° to 360° circle coverage or continuous rotation, mounted on steady twin-point stake. Diffuser screw assures even water distribution. Self-adjusting up to 4 bar, adjustment device for optimal setting at high water pressures. Stainless steel pin and wear-resistant bronze bushing. Irrigated area max 397 m².
Features:
- Easy adjustment
- Rust-proof, non-wear materials
- Works at high and low pressures
- Selection of areas to be wanted
Specification:
- Brand: Claber
- Product Type: Sprinkler
- Spike Material: Stainless Steel
- Nozzle Material: POM
- Central Pin Material: Brass
- Inlet Quick connection: Quick-Click System
- Water Flow: Adjustable
- Irrigation: Pulsating
- Maximum Covered Area: 397 mq
- Maximum Jet Range: r 11,25 m
- Working Pressure: 1 - 4 bar
- Watering Angle: 0-360°
- Water Flow: 11,9 l/min at a pressure of 2 Bar
- Length: 13.45cm
- Width: 5cm
- Height: 36.5cm
- Weight: 280 g
Hydraulic Features:
| Bar | m² | Ø m | l/min |
| 1 |
214,0 |
16,5 |
9,3 |
| 2 |
330,0 |
20,5 |
11,9 |
| 3 |
380,0 |
22,0 |
14,8 |
| 4 |
397,0 |
22,5 |
16,9 |
