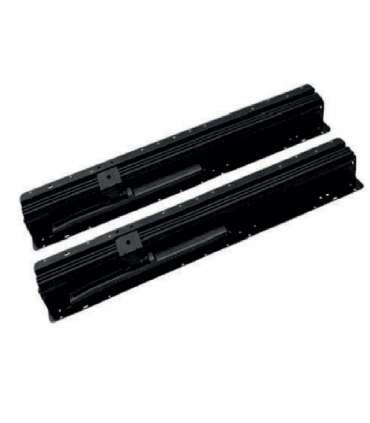

Moco MCH337 Heavy-Duty Staircase Undermount Drawer Slide

Moco MCH337 Heavy-Duty Staircase Undermount Drawer Slide – 120kg Load Capacity

The Moco MCH337 Heavy-Duty Staircase Undermount Drawer Slide is a robust and high-performance sliding system designed for large, deep, or heavy drawers such as staircase drawers and utility storage. Built from precision cold-rolled steel, it supports an impressive load of up to 120kg while ensuring smooth and stable movement. Its undermount design keeps slides hidden for a clean, professional look, and it operates quietly even under full load. The slide features an unrestricted height configuration and can be applied to wide drawers as long as the total weight remains within the supported limit, offering unmatched flexibility for custom furniture and storage applications.

Features

• Heavy-duty undermount design supports up to 120kg
• Full extension design provides maximum drawer accessibility
• Silent and smooth sliding performance for large drawers
• No height restriction for installation versatility

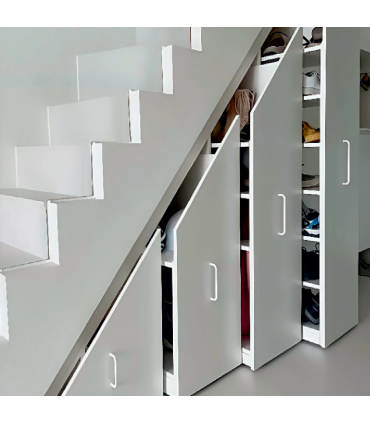

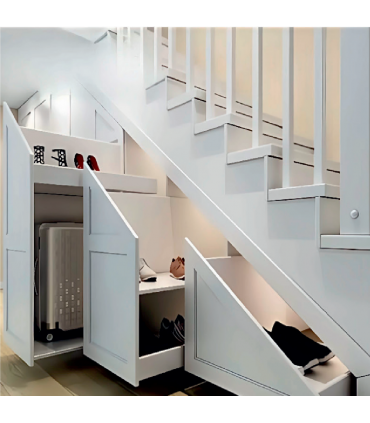

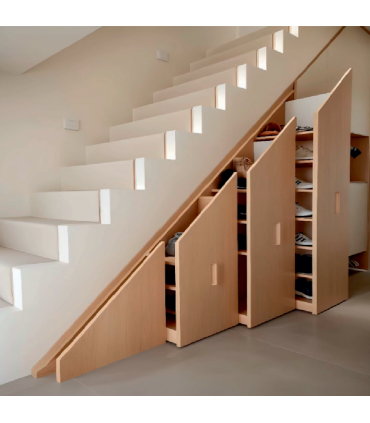

• Ideal for staircase drawers, utility storage, or large cabinetry

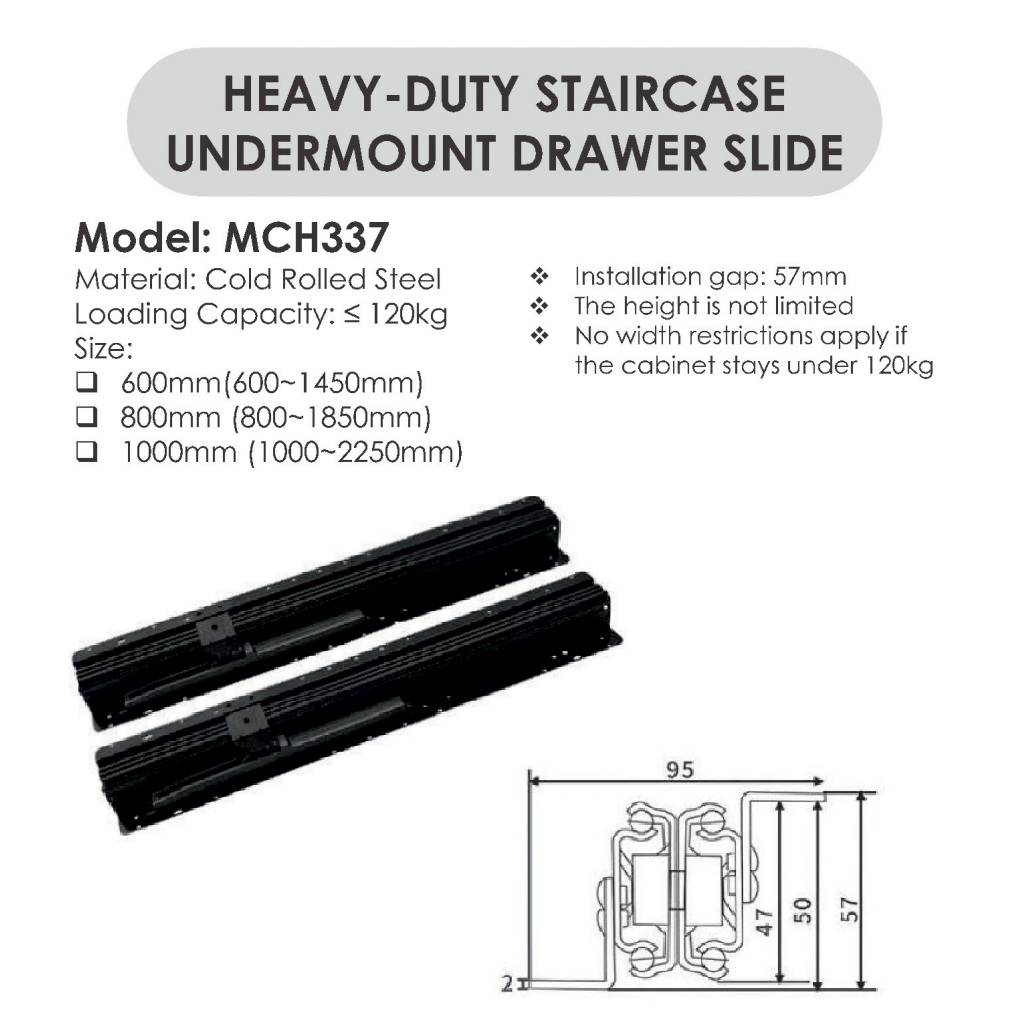

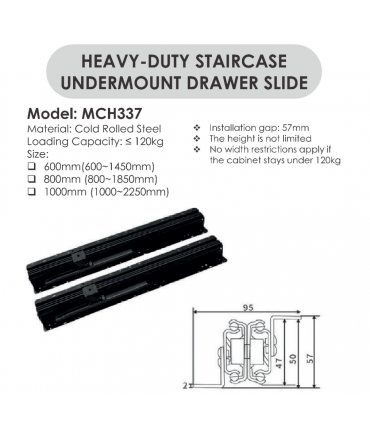

Specification

• Brand: Moco
• Product Type: Heavy-Duty Undermount Drawer Slide
• Model: MCH337
• Material: Cold Rolled Steel
• Loading Capacity: ≤ 120kg
• Installation Gap: 57mm
• Width Restriction: None, if total load ≤ 120kg
• Application: Staircase drawers, storage platforms, industrial or heavy cabinetry

Available Sizes:

• 600mm (Extension: 600~1450mm)
• 800mm (Extension: 800~1850mm)
• 1000mm (Extension: 1000~2250mm)
