Moco MAD005H 2D Hydraulic Invisible Hinge

Moco MAD005H 2D Hydraulic Invisible Hinge – 180° Opening Angle with Adjustable Design

The Moco MAD005H 2D Hydraulic Invisible Hinge is a premium concealed hinge designed for doors that demand a seamless, modern aesthetic with advanced hydraulic functionality. With a maximum load capacity of 40kg per hinge, it provides smooth and controlled motion, ideal for both residential and commercial applications. The hinge allows a full 180° opening angle and features a 90° hold-open function, offering flexibility and convenience in daily use. Its 2D adjustable mechanism enables precise alignment—adjustable ±2mm horizontally and ±4mm vertically—ensuring perfect installation and operation. Available in two sizes, the MAD005H is the ultimate choice for sleek and silent door systems.

Features

• Hydraulic mechanism ensures soft, smooth, and controlled door movement
• Maximum 40kg loading capacity per hinge for stable and reliable performance
• 180° maximum opening angle for full accessibility
• 90° hold-open function, holdable at any position between 90°–180°
• 2D adjustable: Left/Right ±2mm, Up/Down ±4mm for easy alignment

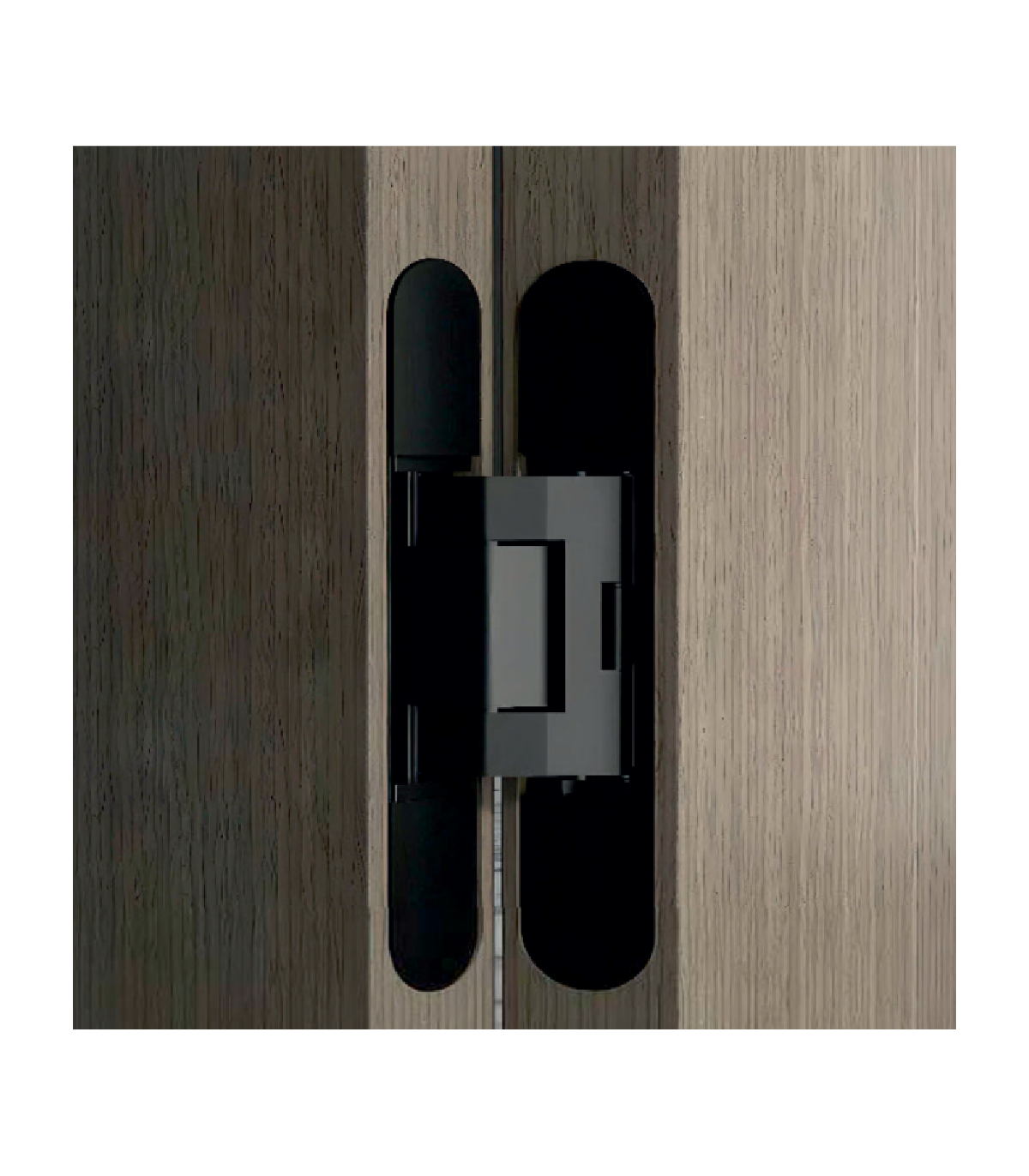

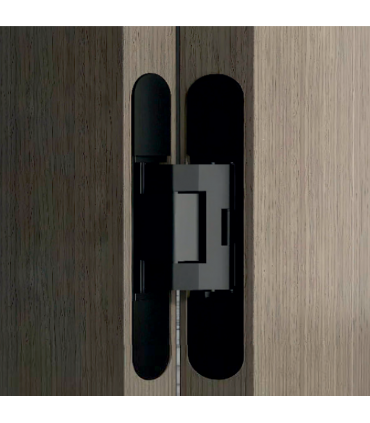

• Concealed design provides a clean and modern door appearance

Specification

• Brand: Moco
• Product Type: 2D Hydraulic Invisible Hinge
• Model: MAD005H
• Loading Capacity: 40kg per hydraulic hinge

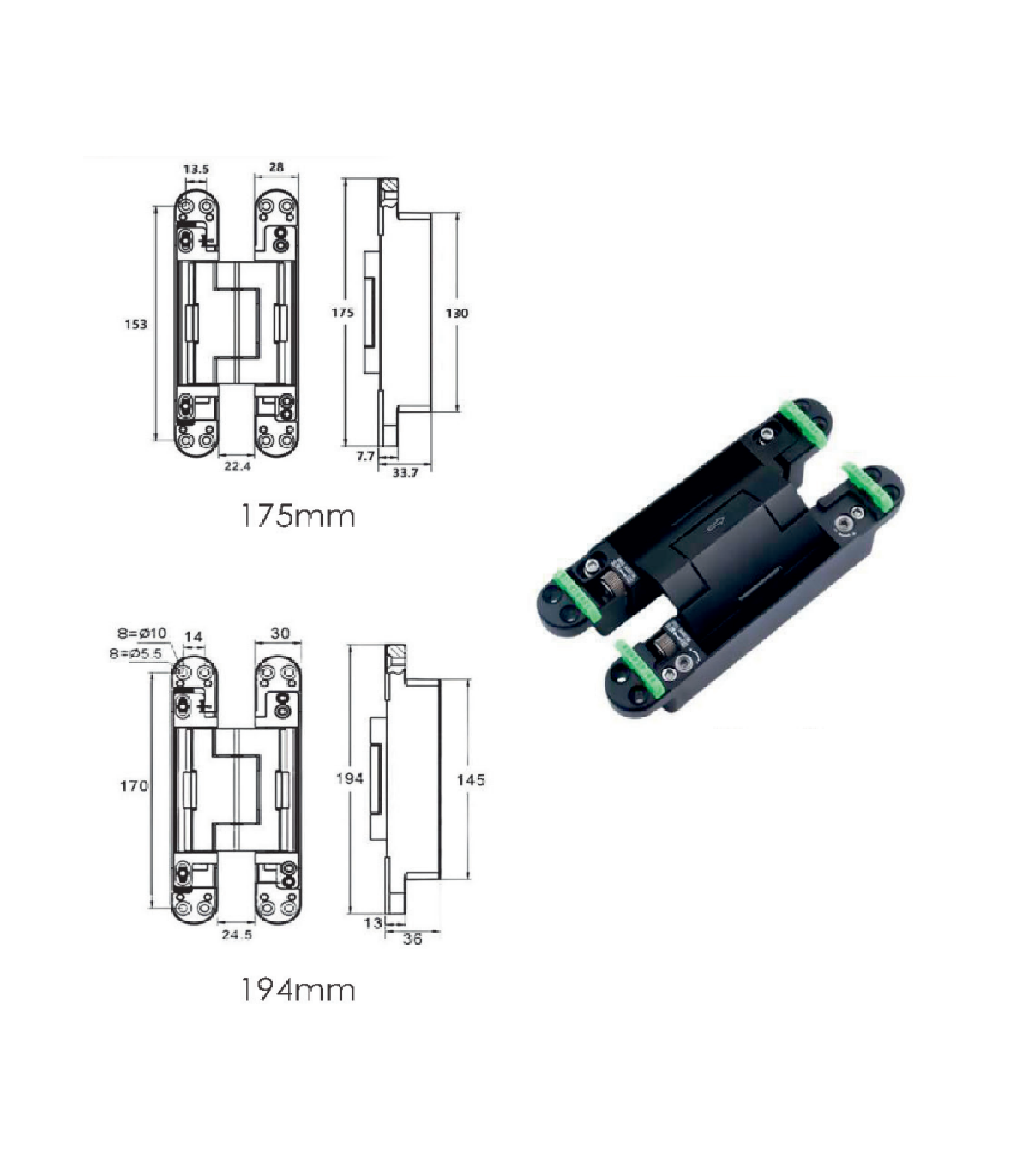

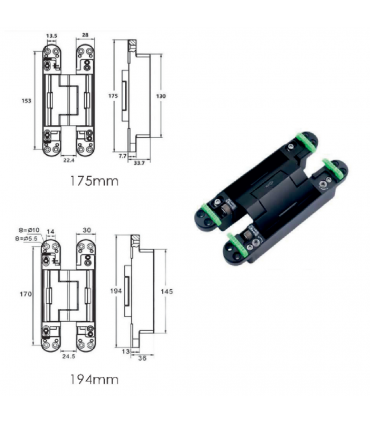

• Size Options: 175 × 28mm / 194 × 30mm
• Maximum Opening Angle: 180°
• Hold Function: 90° hold-open, holdable between 90°–180°
• Adjustment Range: Left/Right ±2mm, Up/Down ±4mm

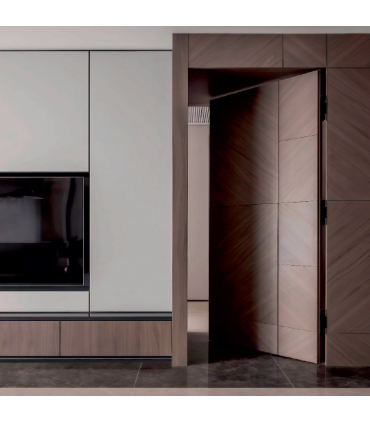

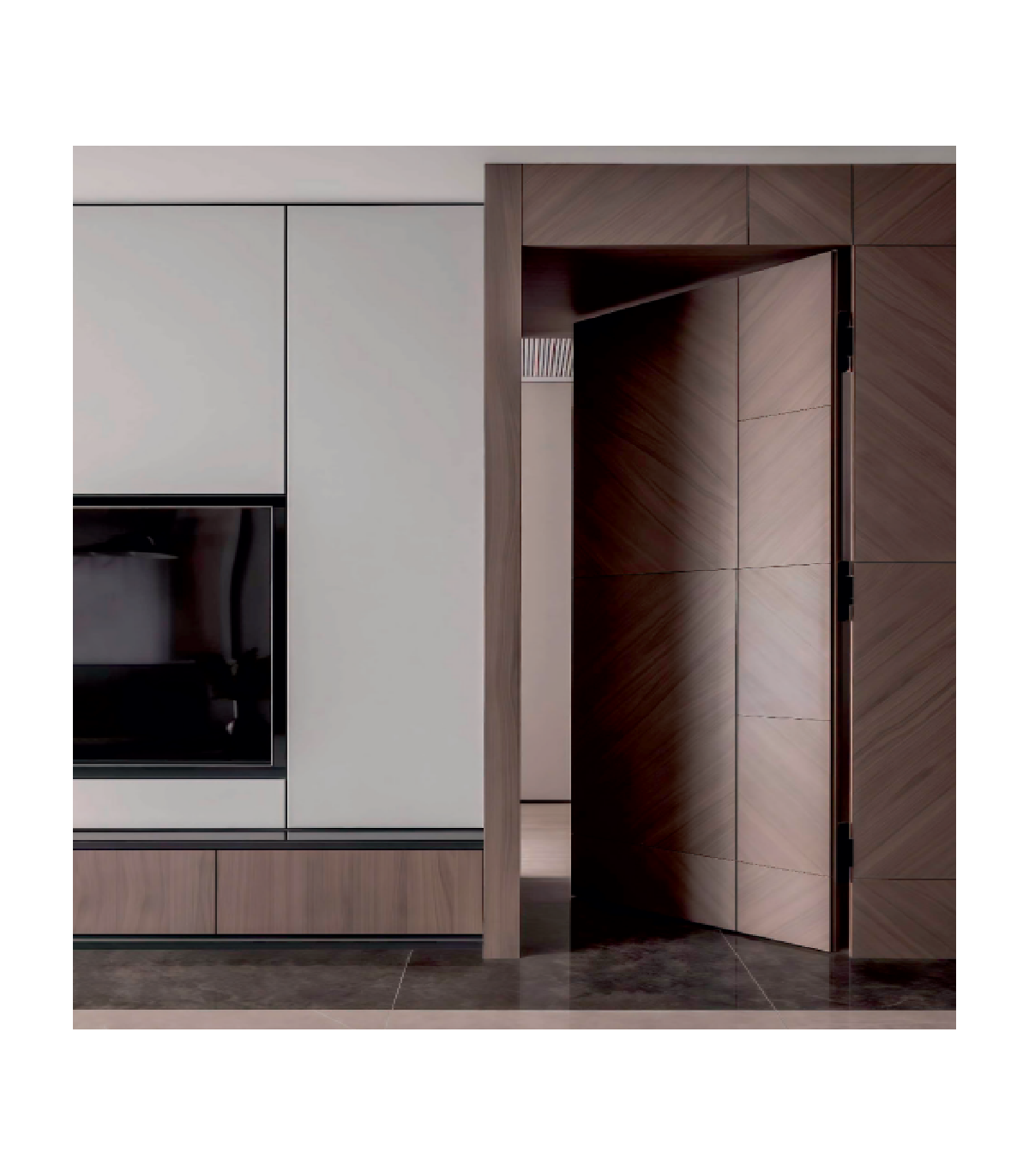

• Application: Concealed door installations, interior flush doors, and luxury cabinet systems
