Moco MAD005 Smooth Soft-Closing 2D Invisible Hinge

Moco MAD005 Smooth Soft-Closing 2D Invisible Hinge – 180° Opening Adjustable Concealed Design

The Moco MAD005 Smooth Soft-Closing 2D Invisible Hinge is designed for doors requiring a sleek, concealed appearance combined with smooth and stable movement. Unlike hydraulic models, this version operates mechanically while maintaining a soft-closing action and smooth alignment. Each hinge supports up to 40kg and provides a full 180° opening angle, making it ideal for flush doors and minimalist interiors. With 2D adjustability—horizontal ±2mm and vertical ±4mm—it allows precise installation and perfect door positioning. Built with durable metal components, the MAD005 offers a long-lasting, quiet, and refined door motion suited for modern architectural applications.

Features

• Non-hydraulic invisible hinge with smooth, silent closing motion
• Supports doors up to 40kg per hinge
• Full 180° opening angle for wide accessibility
• Holdable at any position between 90°–180° for user convenience
• 2D adjustable design: Left/Right ±2mm, Up/Down ±4mm for precision alignment
• Concealed structure enhances modern and minimalist interior aesthetics

Specification

• Brand: Moco
• Product Type: 2D Invisible Hinge (Non-Hydraulic)
• Model: MAD005
• Loading Capacity: 40kg per hinge

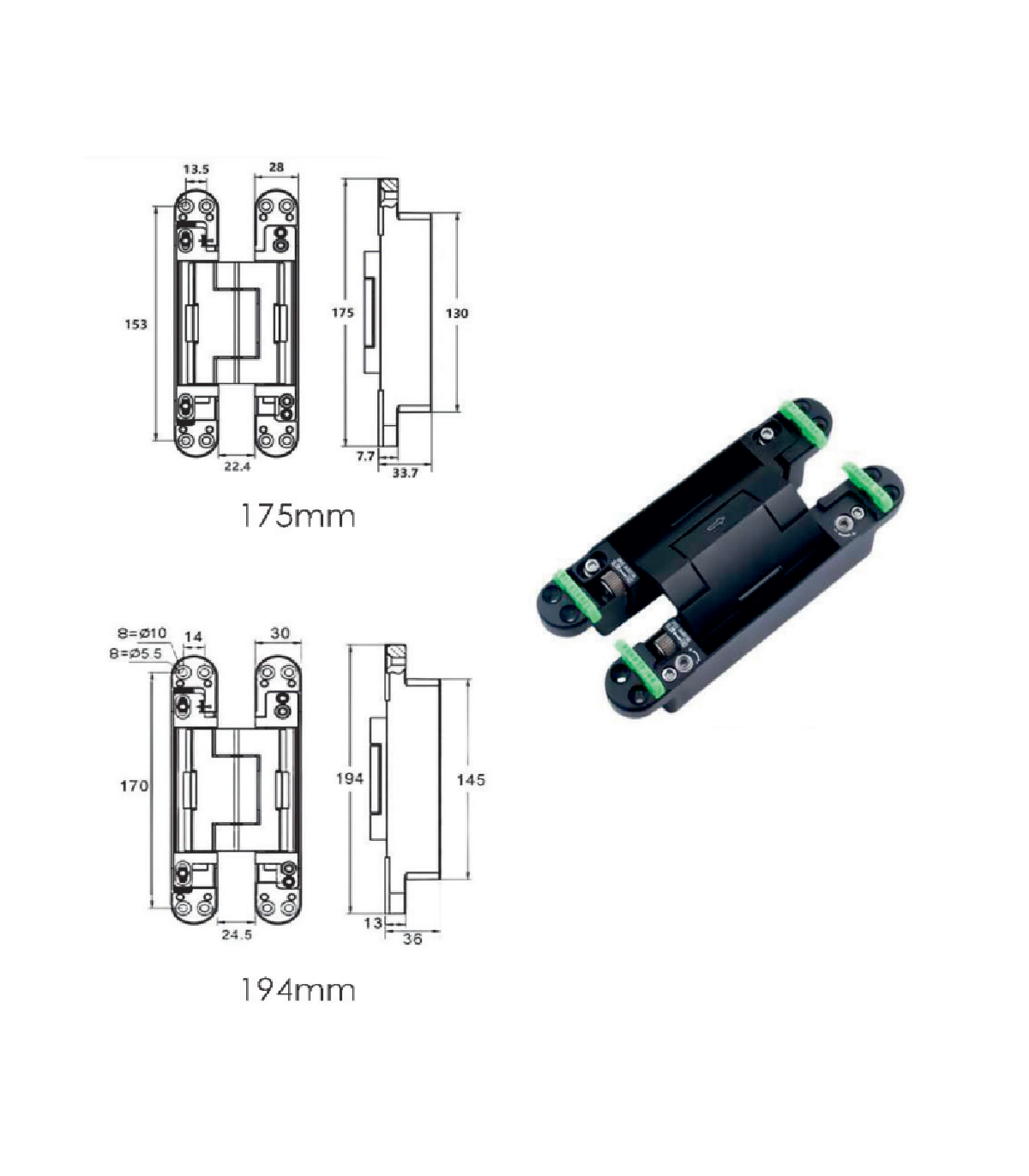

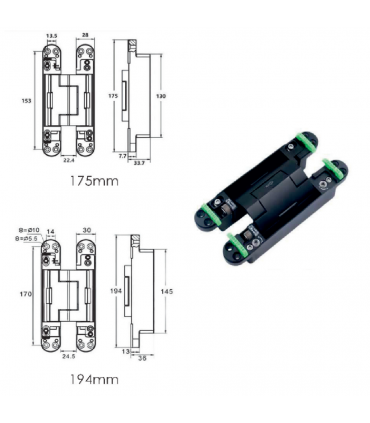

• Size Options: 175 × 28mm / 194 × 30mm
• Maximum Opening Angle: 180°
• Hold Function: 90° hold-open, holdable between 90°–180°
• Adjustment Range: Left/Right ±2mm, Up/Down ±4mm
• Operation Type: Non-hydraulic smooth close with mechanical balance
• Application: Flush wooden or aluminum doors for interior spaces
