HAWA 80/B Junior Sliding Pocket Door Hardware

HAWA 80/B Junior - Pocket

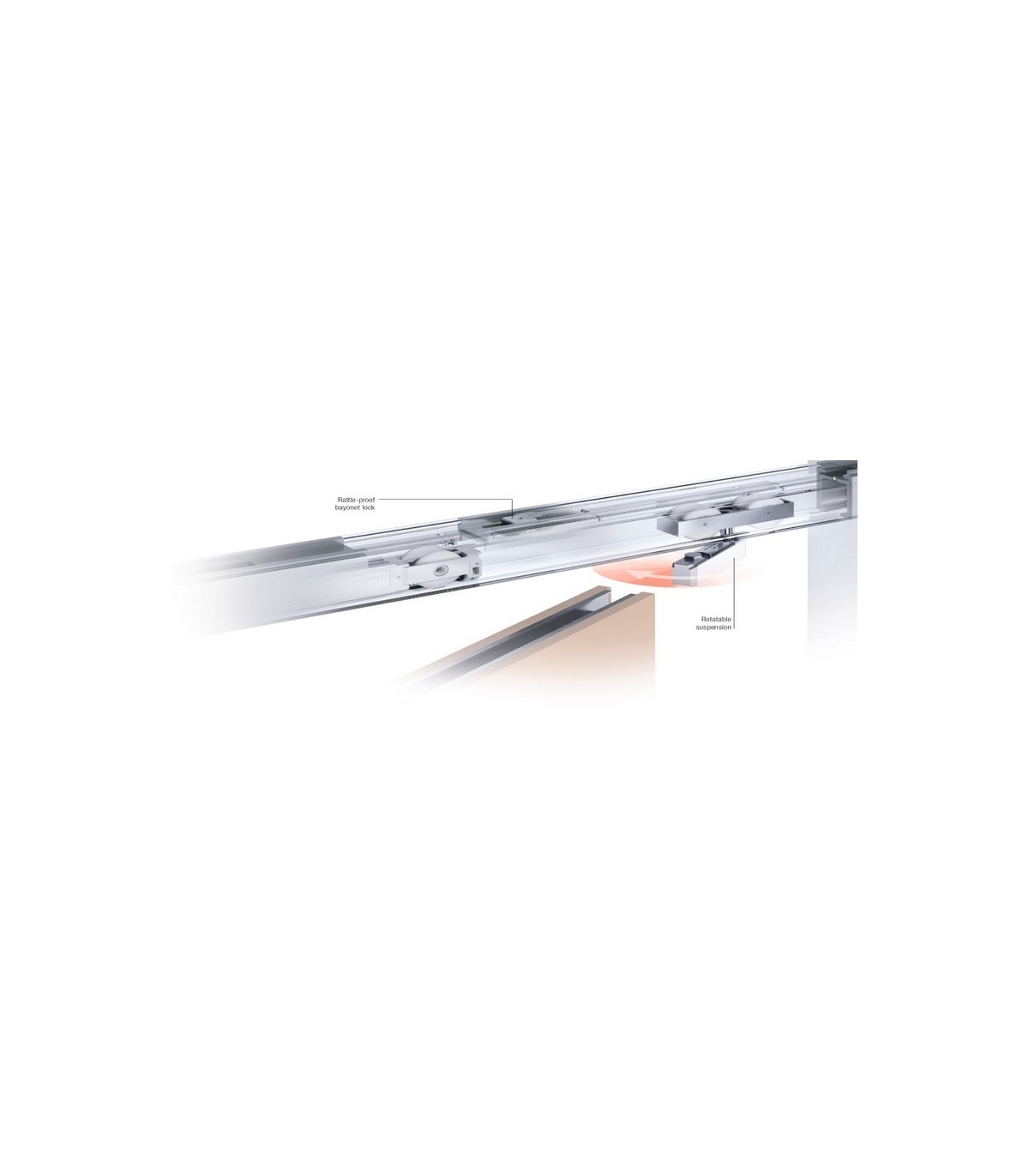

The innovative hardware system HAWA-Junior 80/B-Pocket removes all the obstacles that permanently installed pockets put in the way of wood sliding doors weighing up to 80 kg (176 lbs). The top track can be installed and removed via rattle-proof bayonet locks at any time thanks to a pre-mounted retainer profile. All components remain freely accessible and are easily replaced or extended. Moreover, the track‘s running surface remains clean during the construction phase. And sliding the door into the pocket is especially easy as the suspension unit on the pocket side is located directly on the edge of the door. Another benefit is that none of the sophisticated technology represents a compromise on aesthetic appeal. All of the hardware components remain concealed thanks to an integrated door ejector and a sophisticated clip-on facia.

Features:

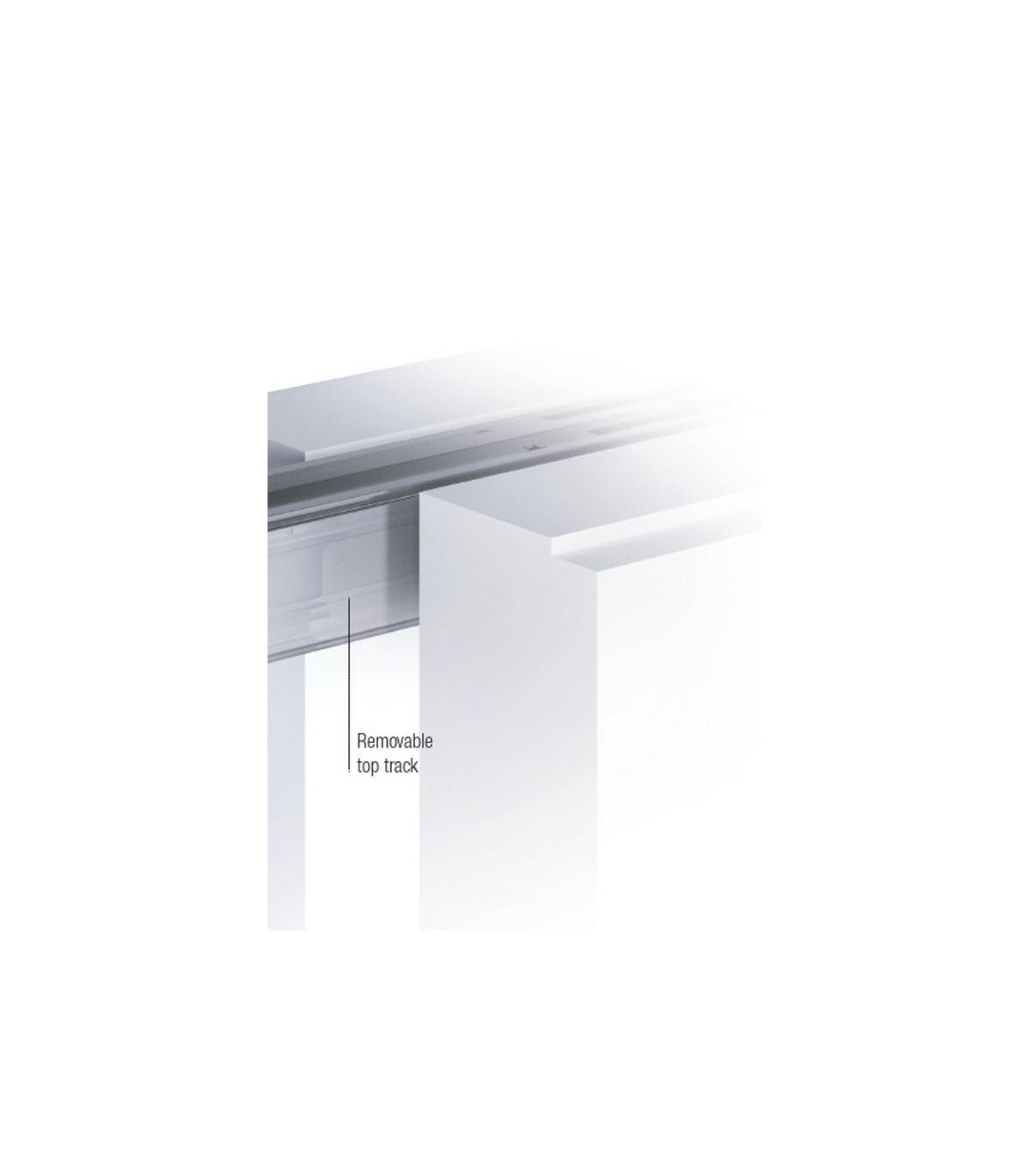

• Assembly and disassembly of the top track possible at any time for upgrading or replacing components
• New suspension design for easier door insertion with no loss of space in shallow pockets
• The separating layer between top track and retainer profile reduces vibration transmission and structureborne noise
• No contamination of the top track during the construction phase thanks to a high degree of preassembly
• Combinable with a SoftMove 80 soft closing mechanism for HAWA-Junior 80
• The end position can be adjusted via the suspension in the pocket when the door is open
• The components in the top track can be replaced or added to as required at any time, even in inaccessible pocket door structures

Specifications:

• Brand: Hawa
• Product Type: Sliding Door Fitting
• Maximum Door Weight: 80 kg (176 lbs.)
• Door width: 700-1500 mm
• Door Thickness: 40-50 mm
• Adjustable Height: ± 3 mm
• Horizontal Adjustment in the Bayonet: ± 8 mm
