ecoWare Air Pressure Conceal Hinge with Adjustable Clip On - 4 Hole 3D99 for 3/4 Inch Plywood

ecoWare Air Pressure Conceal Hinge with Adjustable Clip On - 4 Hole 3D99 for 3/4 Inch Plywood

Elevate your cabinetry with ecoWare CH-1.2.1 Air Pressure Conceal Hinge Adjustable Clip On - 4 Hole 3D99, designed specifically for 3/4 inch plywood. These hinges offer seamless concealment and adjustable functionality, ensuring a sleek and customized look for your cabinets.

Features:

• Compatible with 3/4 Inch Plywood: Perfectly suited for cabinets constructed with 3/4 inch plywood, ensuring a snug and secure fit

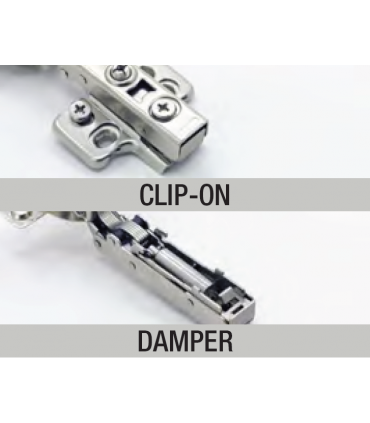

• Adjustable Clip-On Design: Easily adjust the hinges to achieve the desired fit and functionality without the need for complex tools
• Concealed Installation: Hinges are designed to be hidden from view, providing a clean and polished appearance for your cabinetry
• Durable Construction: Crafted from high-quality materials for long-lasting durability and reliable performance
• Versatile Application: Suitable for various cabinet door styles and sizes, offering flexibility in design
• Smooth Operation: Ensures smooth opening and closing of cabinet doors, enhancing user experience
• 4 Hole Design: Offers stability and secure attachment to the cabinet frame, ensuring strength and durability

Specifications:

• Brand: ecoWare
• Product Type: Cabinet Hinge
• Mounting Option: Full Overlay
• Material: Iron with Nickel Plating
• Cup Diameter: 35mm
• Cup Depth: 11.6mm
• Max Opening Angle: 105°
• Cranking: 0mm
• Thickness of Door: 16-26mm

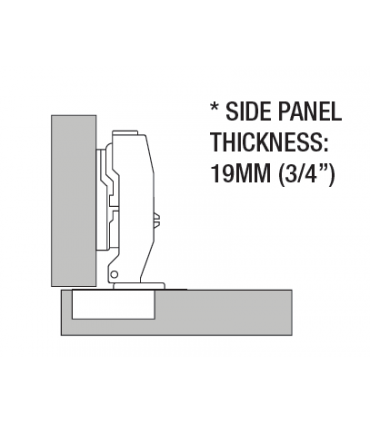

• Side Panel Thickness: 19mm (3/4 Inch)
