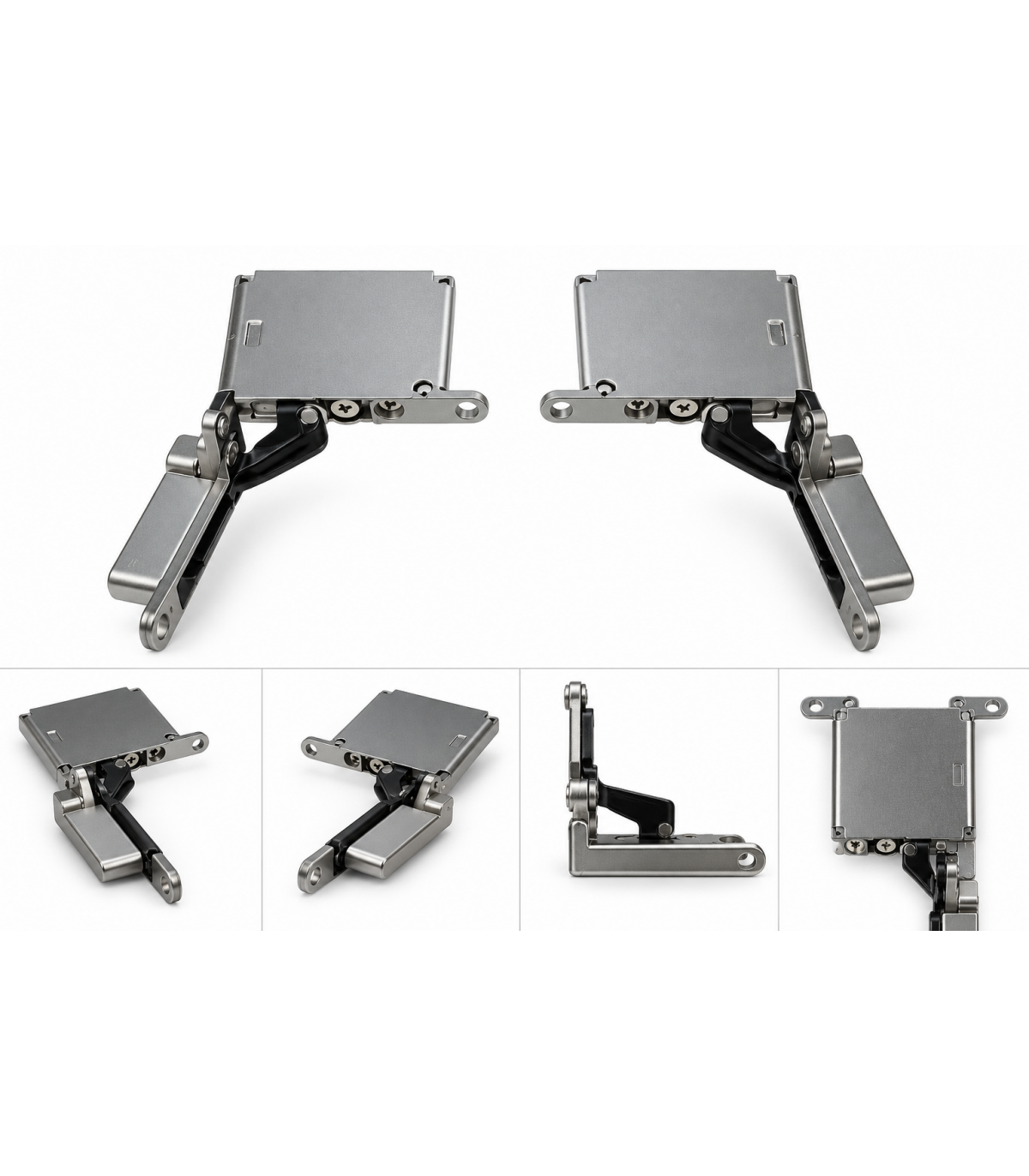

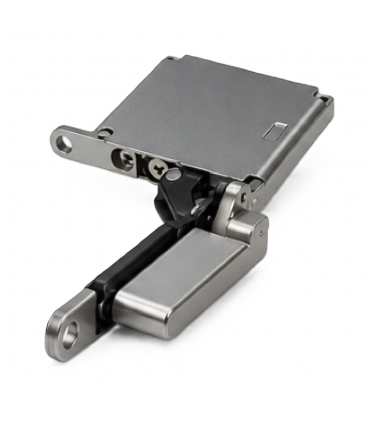

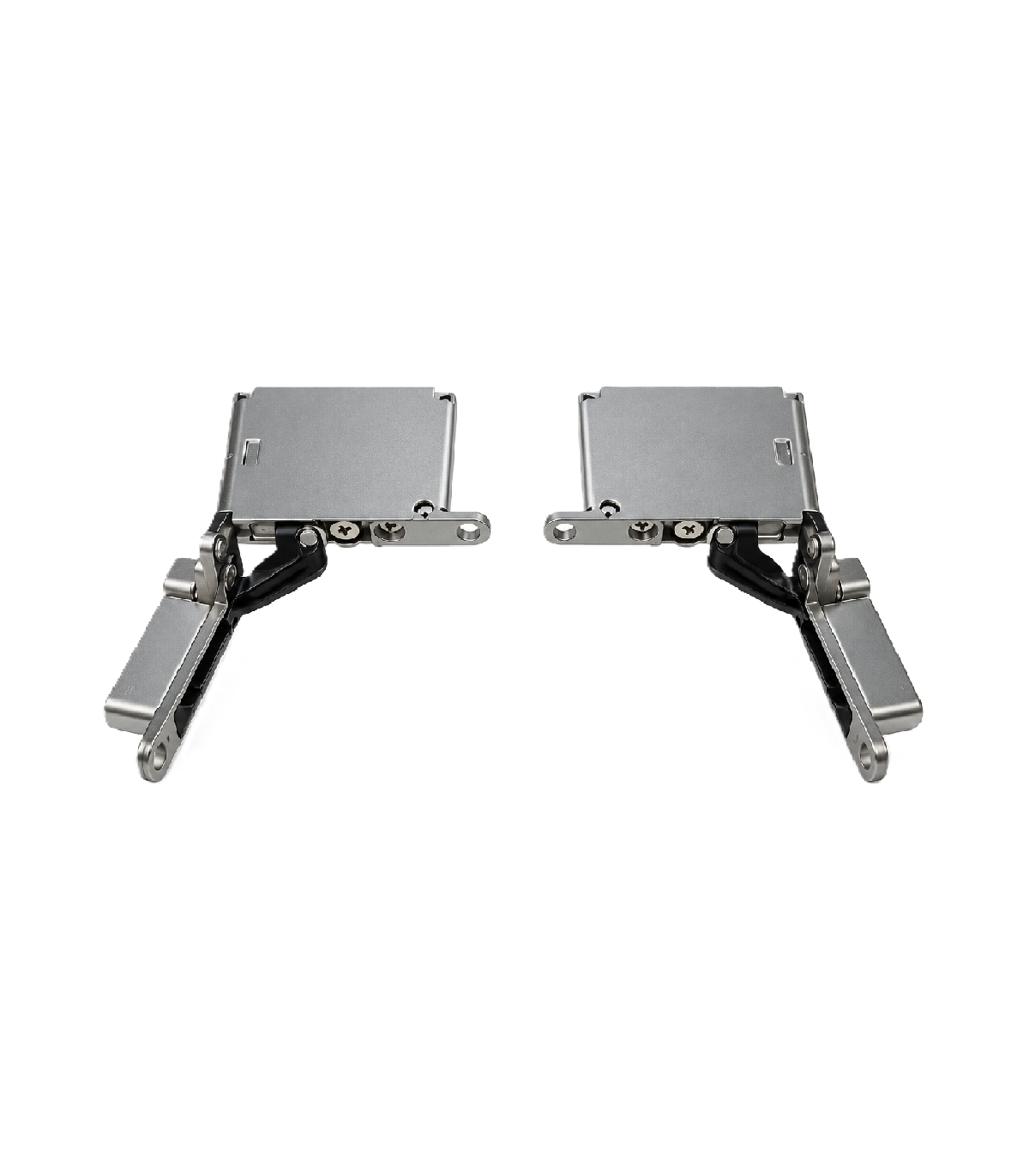

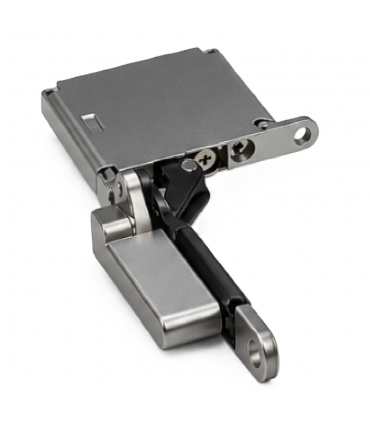

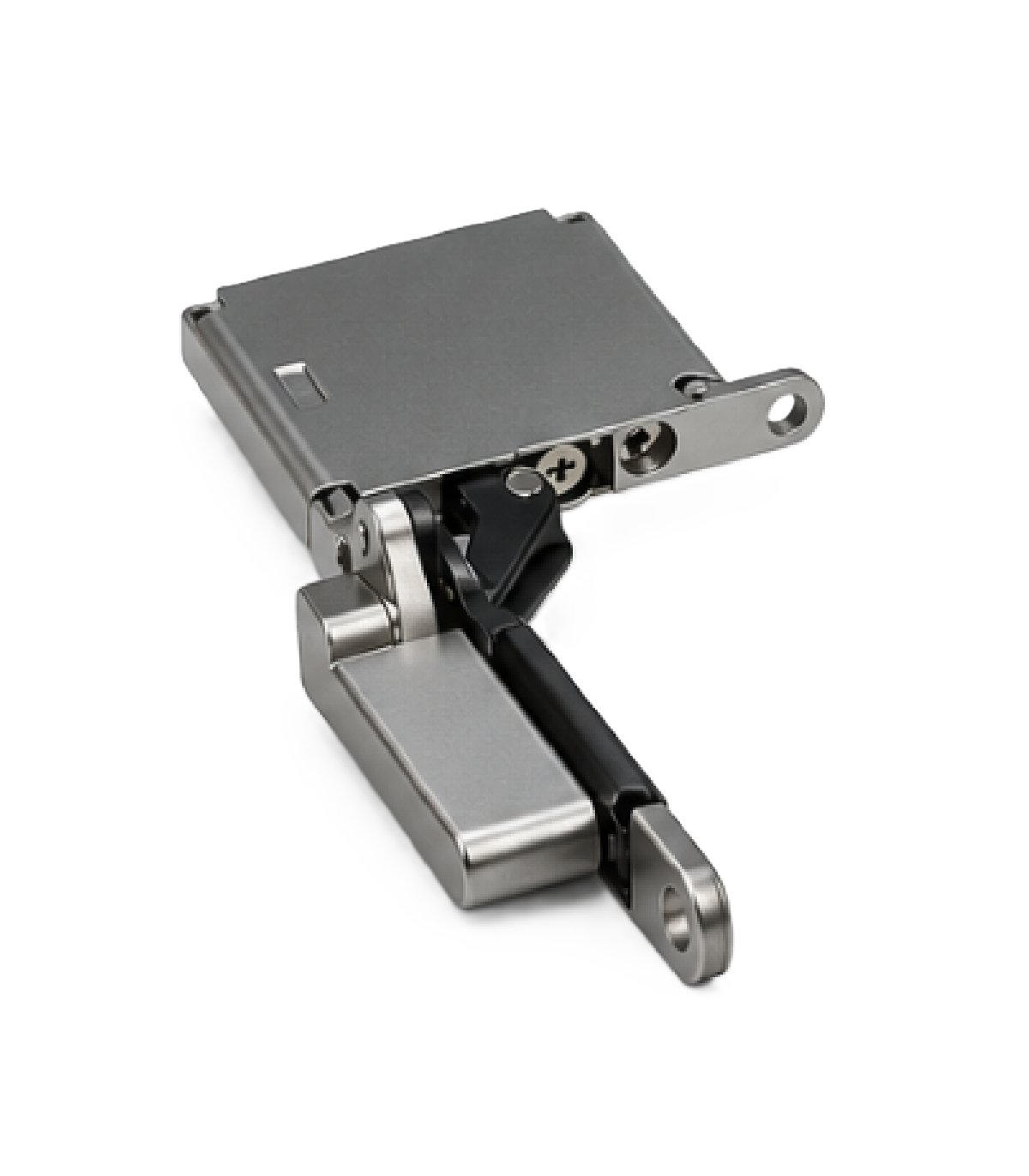

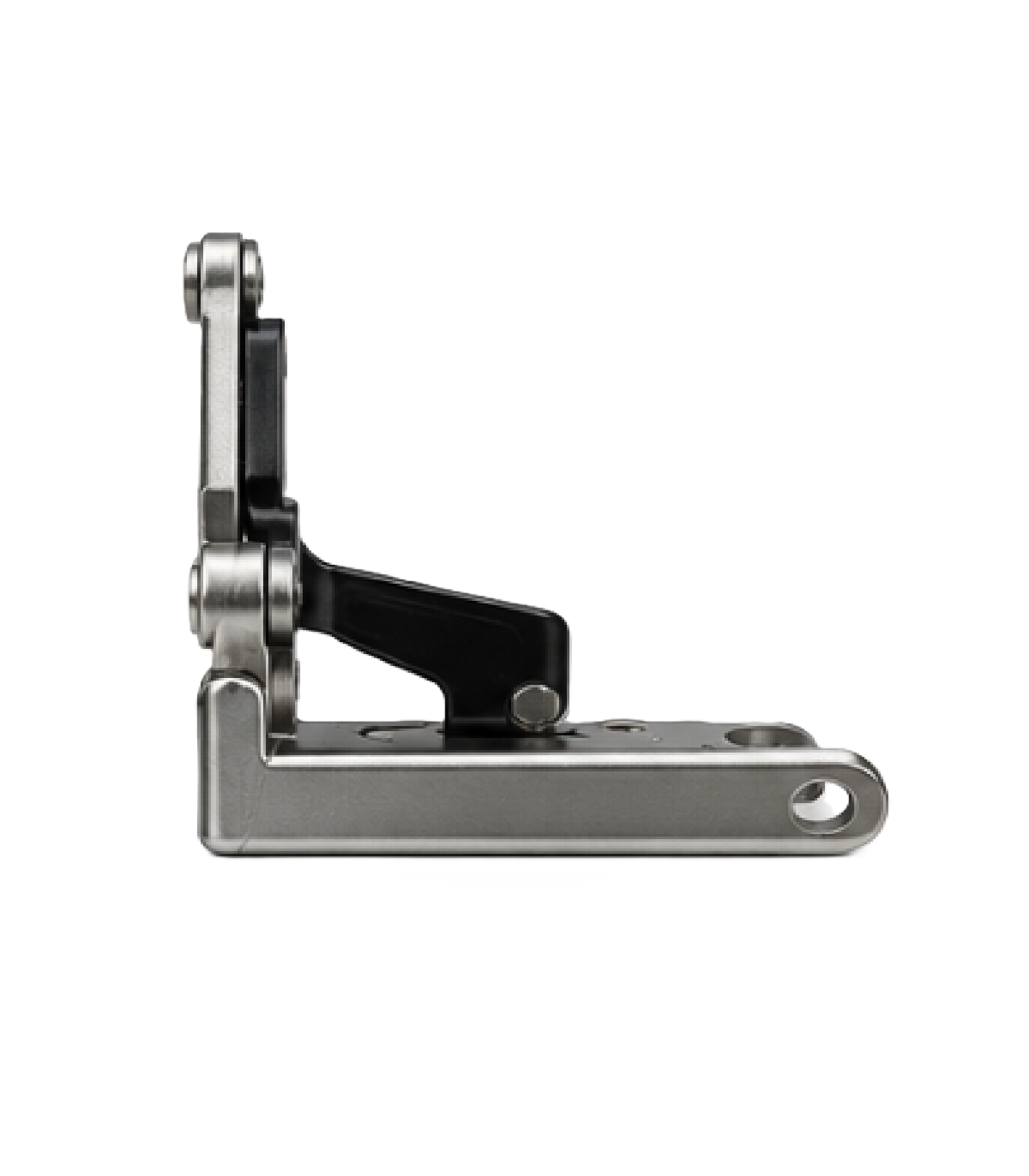

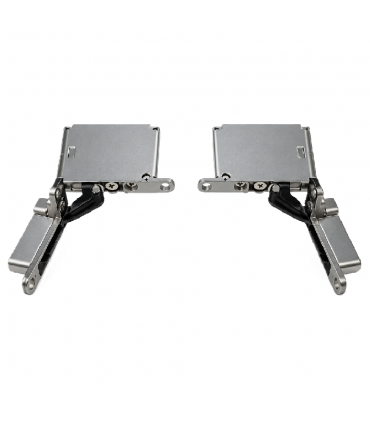

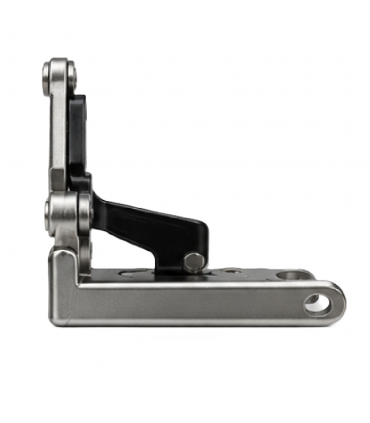

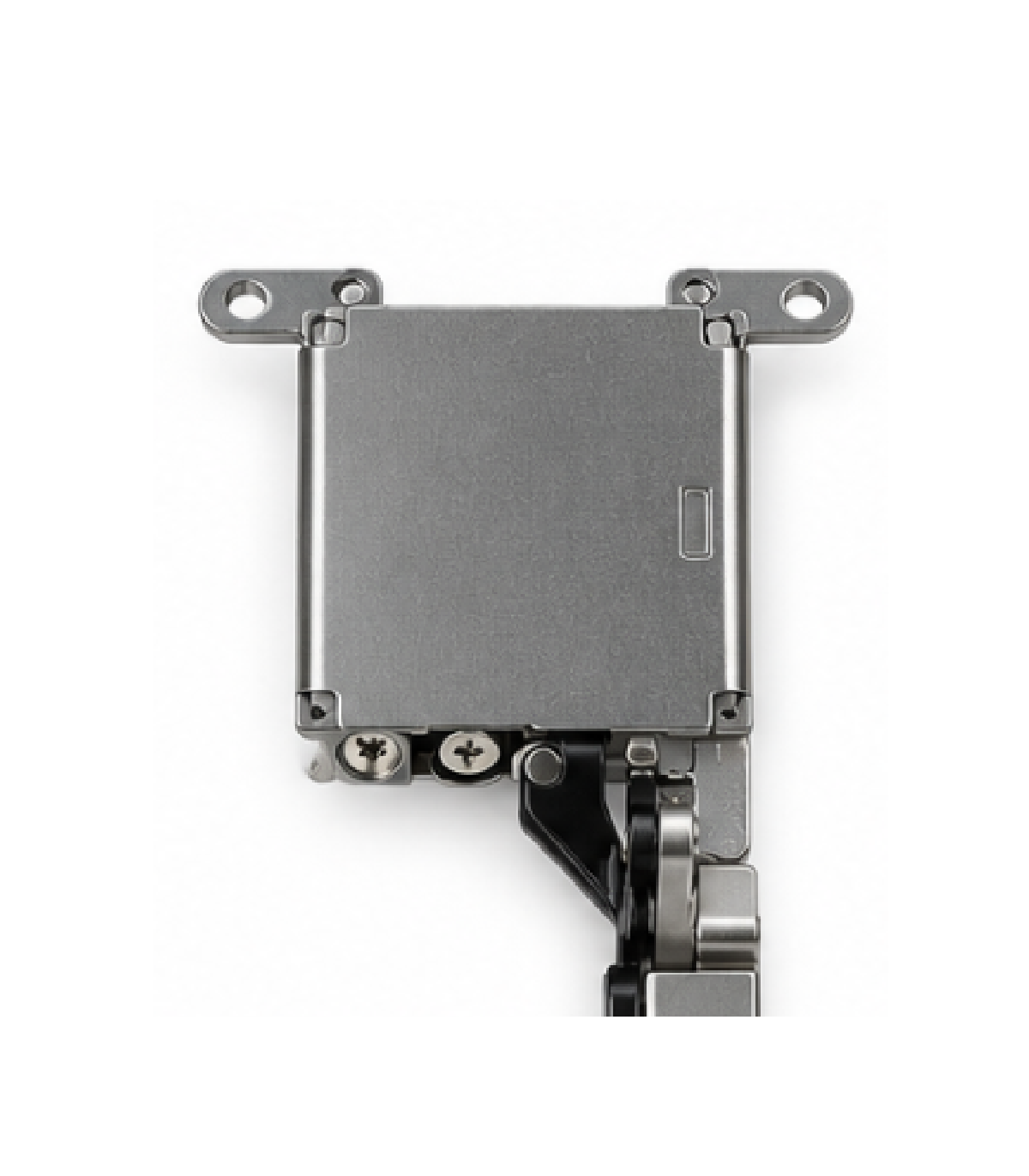

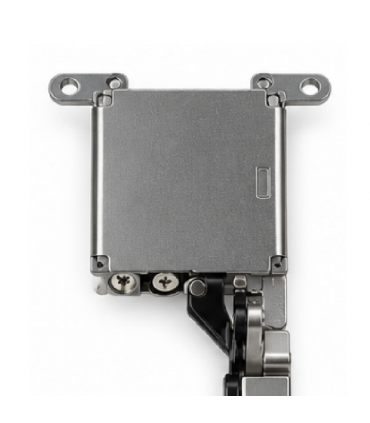

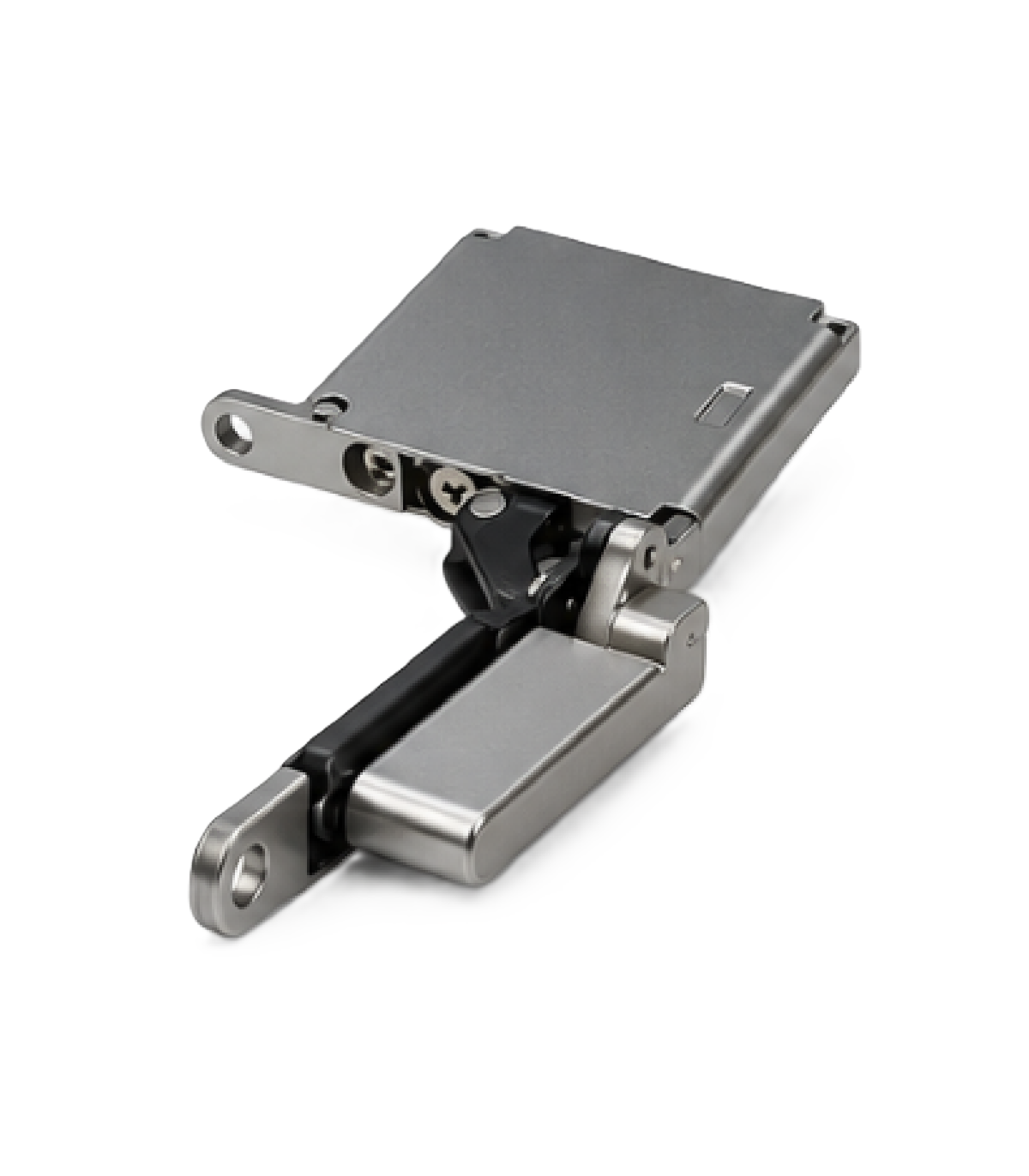

ecoWare CH-HCH-SC-V.1 Zinc Alloy Pivot Hidden Cabinet Hinge - Titanium

ecoWare CH-HCH-SC-V.1 Zinc Alloy Pivot Hidden Cabinet Hinge - Titanium

The ecoWare CH-HCH-SC-V.1 Pivot Hidden Cabinet Hinge is designed for concealed cabinet door installations where a clean exterior appearance and adjustable positioning are required. Constructed from zinc alloy with a titanium finish, this hinge provides a durable hardware solution for suitable cabinet applications. Its 3D adjustable design allows the door position to be adjusted after installation, helping achieve accurate alignment.

The hinge has a maximum opening angle of 105° and is designed for doors up to 2100mm in height and 600mm in width. It accommodates door thicknesses from 18mm to 32mm, with a 16.5mm deep metal cup option. The hinge supports a loading capacity of 25kg per set and can be used with wooden doors according to the specified installation requirements.

Its pivot hidden configuration keeps the main hinge mechanism concealed within the cabinet and door structure. Suitable for cabinet manufacturing, furniture installation and architectural joinery, this hinge provides controlled door movement and practical adjustment for compatible applications.

Features

• 3D adjustable concealed pivot hinge
• Zinc alloy construction
• Titanium finish
• Maximum opening angle of 105°
• Loading capacity of 25kg per set
• Suitable for doors up to 2100mm high and 600mm wide
• Suitable for 18mm–32mm door thickness

Specification

• Brand: ecoWare
• Product Type: Pivot Hidden Cabinet Hinge
• Model: CH-HCH-SC-V.1
• Material: Zinc Alloy
• Finish: Titanium
• Adjustment: 3D Adjustable
• Maximum Opening Angle: 105°
• Maximum Door Height: 2100mm
• Maximum Door Width: 600mm
• Door Thickness: 18mm–32mm
• Loading Capacity: 25kg / set
