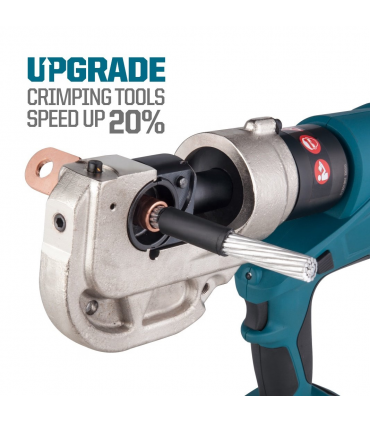

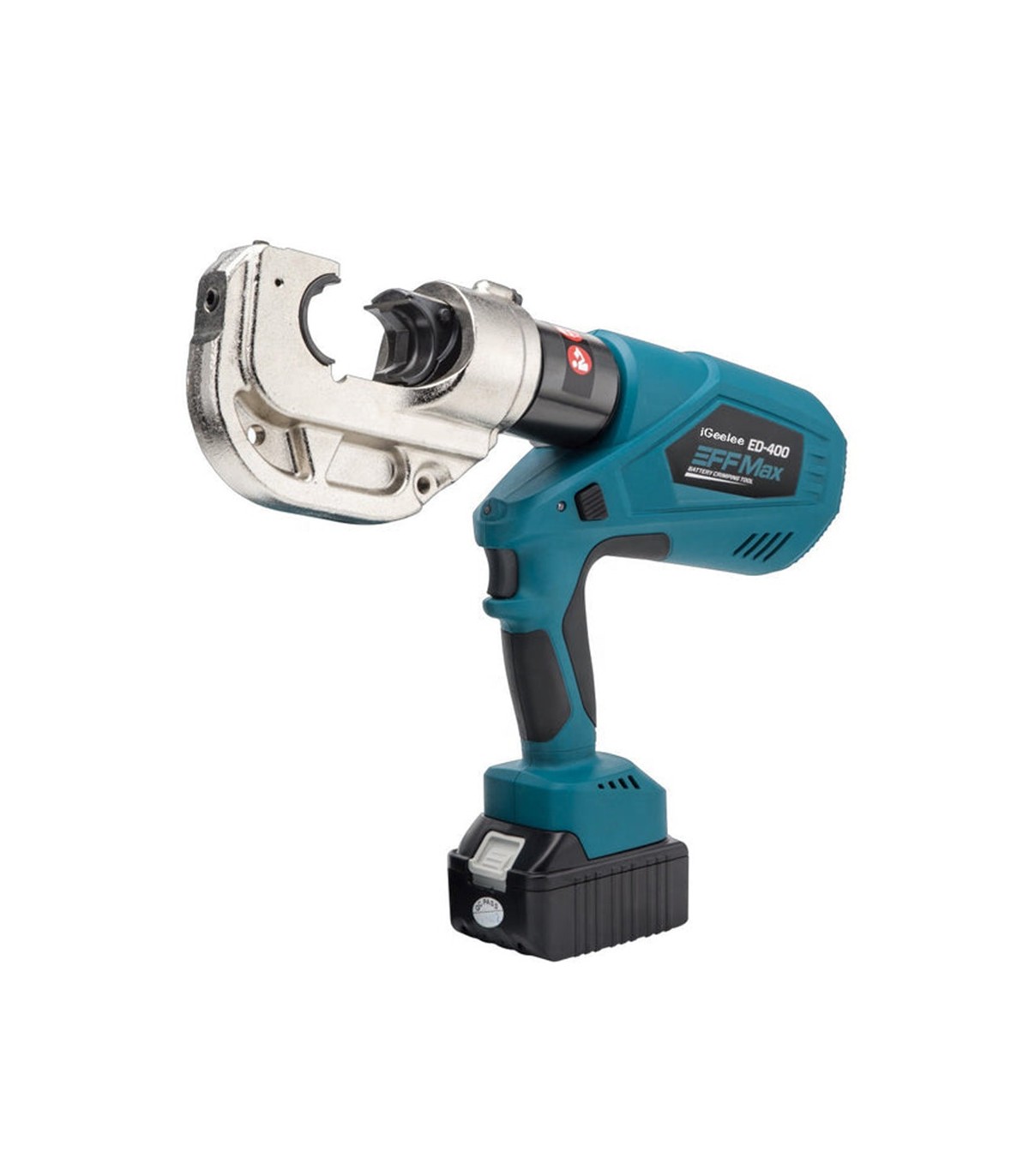

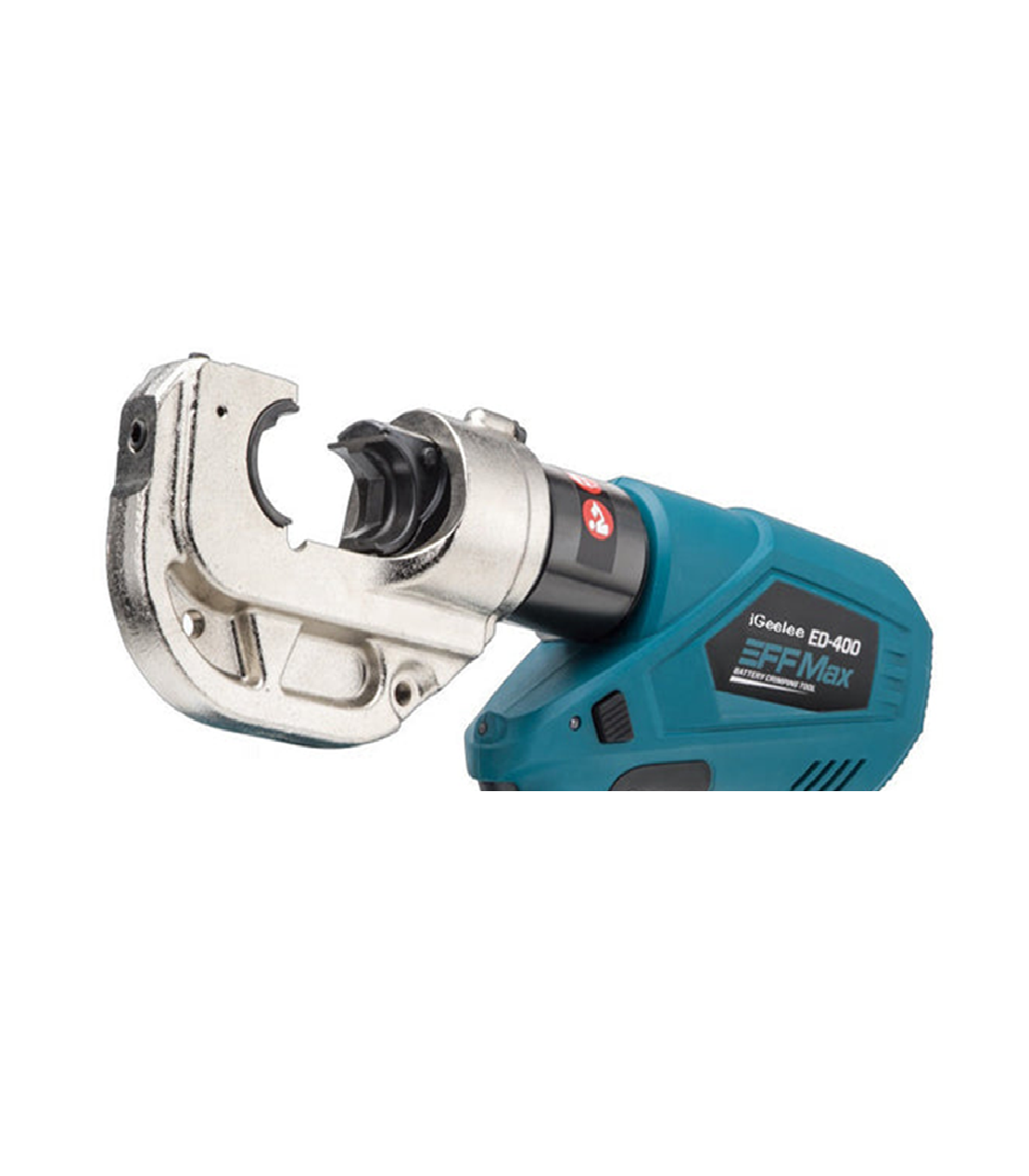

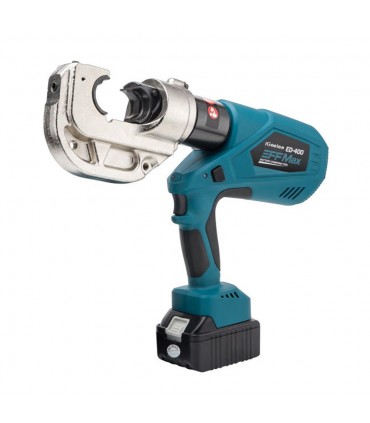

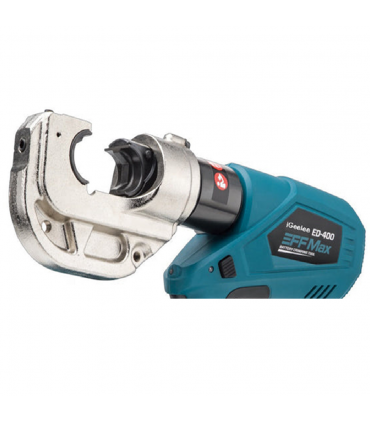

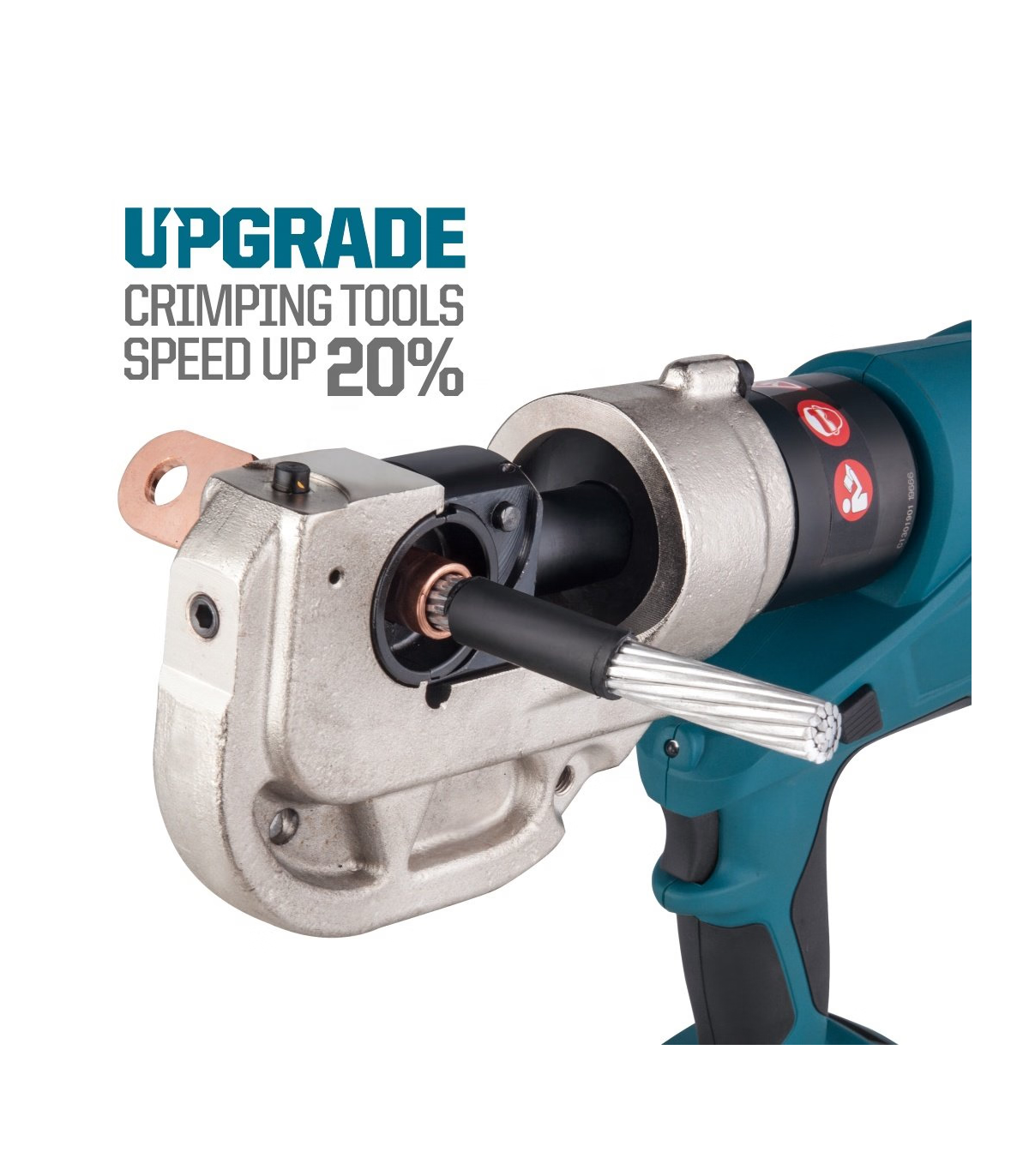

Zupper ED-400 18V Hydraulic 16-400mm2 Electric Wire Crimping Tool

Aiko ED-400 18V Hydraulic 16-400mm2 Electric Wire Crimping Tool

The Aiko ED-400 is a professional-grade battery-powered hydraulic crimping tool designed for efficient and precise crimping of copper and aluminum terminals. With a powerful 120kN output, it accommodates wire sizes ranging from 16mm² to 400mm². The 18V 3.0Ah lithium-ion battery ensures up to 120 cycles per charge, making it ideal for heavy-duty electrical and industrial applications.

Features

• High crimping force of 120kN for reliable connections
• Wide crimping range: 16mm² to 400mm² for various applications
• Efficient cycle time of 5–8 seconds per crimp
• Includes 12 crimping dies for different wire sizes
• Powered by an 18V 3.0Ah lithium-ion battery

Specifications

• Brand: Aiko
• Product Type: Hydraulic Crimping Tool
• Model: ED-400
• Rated Pressure: 120kN
• Stroke: 42mm
• Oil Capacity: 160ml
• Crimping Range: Cu 16–400mm², Al 16–300mm²
• Cycle Time: 5–8 seconds (Cu 150mm²)
• Cycles per Charge: Approximately 120 cycles (Cu 150mm²)
• Voltage: 18V
• Battery Capacity: 3.0Ah
• Charging Time: Approximately 1 hour
• Charging Voltage: AC 100V–240V, 50–60Hz
• Weight (including battery): 7.3kg
• Accessories Included: 12 crimping dies (16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300, 400mm²), 2 batteries, 1 charger, sealing rings for cylinder and safety valve
