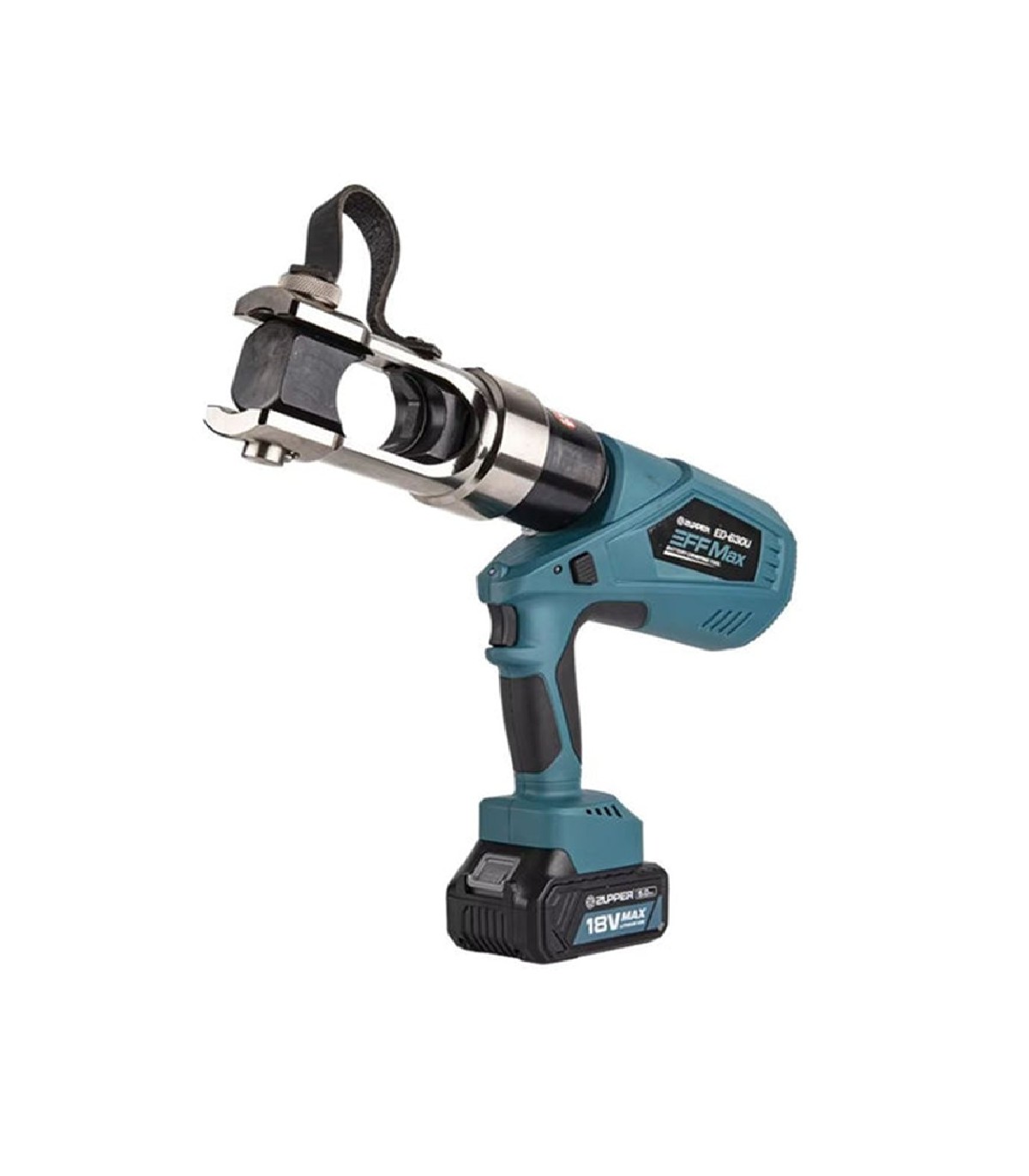

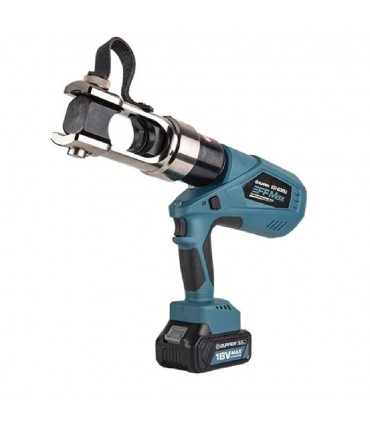

Zupper ED-630U 18V 180kN Hydraulic Crimping Tool

Aiko ED-630U 18V 180kN Hydraulic Crimping Tool

The Aiko ED-630U is a high-performance 18V battery-powered hydraulic crimping tool designed for efficient and reliable crimping of copper and aluminum cables. With a robust 180kN crimping force and a stroke of 25.5mm, it ensures precise and consistent results. The tool's ergonomic design and cordless operation provide enhanced mobility and ease of use, making it ideal for various industrial applications.

Features

• Powerful 180kN crimping force for heavy-duty applications
• Suitable for Cu cables (16-630mm²) and Al cables (10-500mm²)
• Efficient crimping cycle time of 7-15 seconds
• Equipped with two 18V/4.0Ah lithium-ion batteries and a charger
• Compact and lightweight design for easy handling

Specifications

• Brand: Aiko
• Product Type: Hydraulic Crimping Tool
• Model: ED-630U
• Crimping Force: 180kN
• Stroke: 25.5mm
• Crimping Range: Cu 16-630mm² / Al 10-500mm²
• Crimping Cycle Time: 7-15 seconds (depending on cable diameter)
• Battery Type: Lithium-ion
• Capacity: 4.0Ah
• Voltage: 18V
• Charging Time: Approximately 80 minutes
• Charging Voltage: AC 100V-240V;
• Tool Dimensions: 425 x 343 x 84mm
• Weight: 2kg

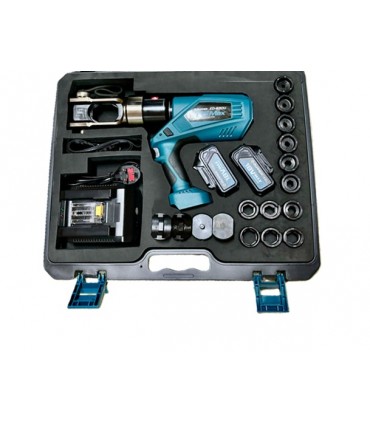

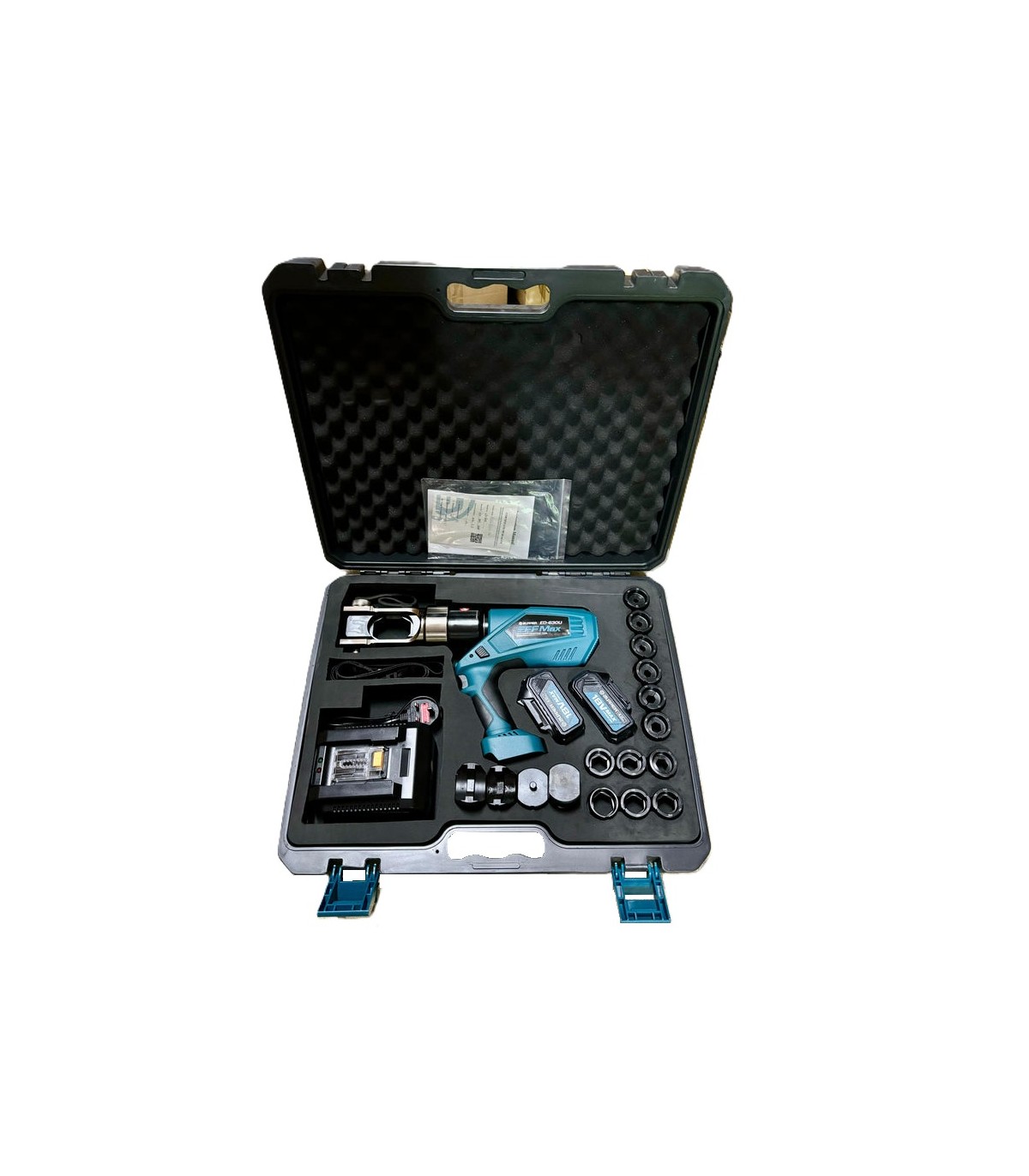

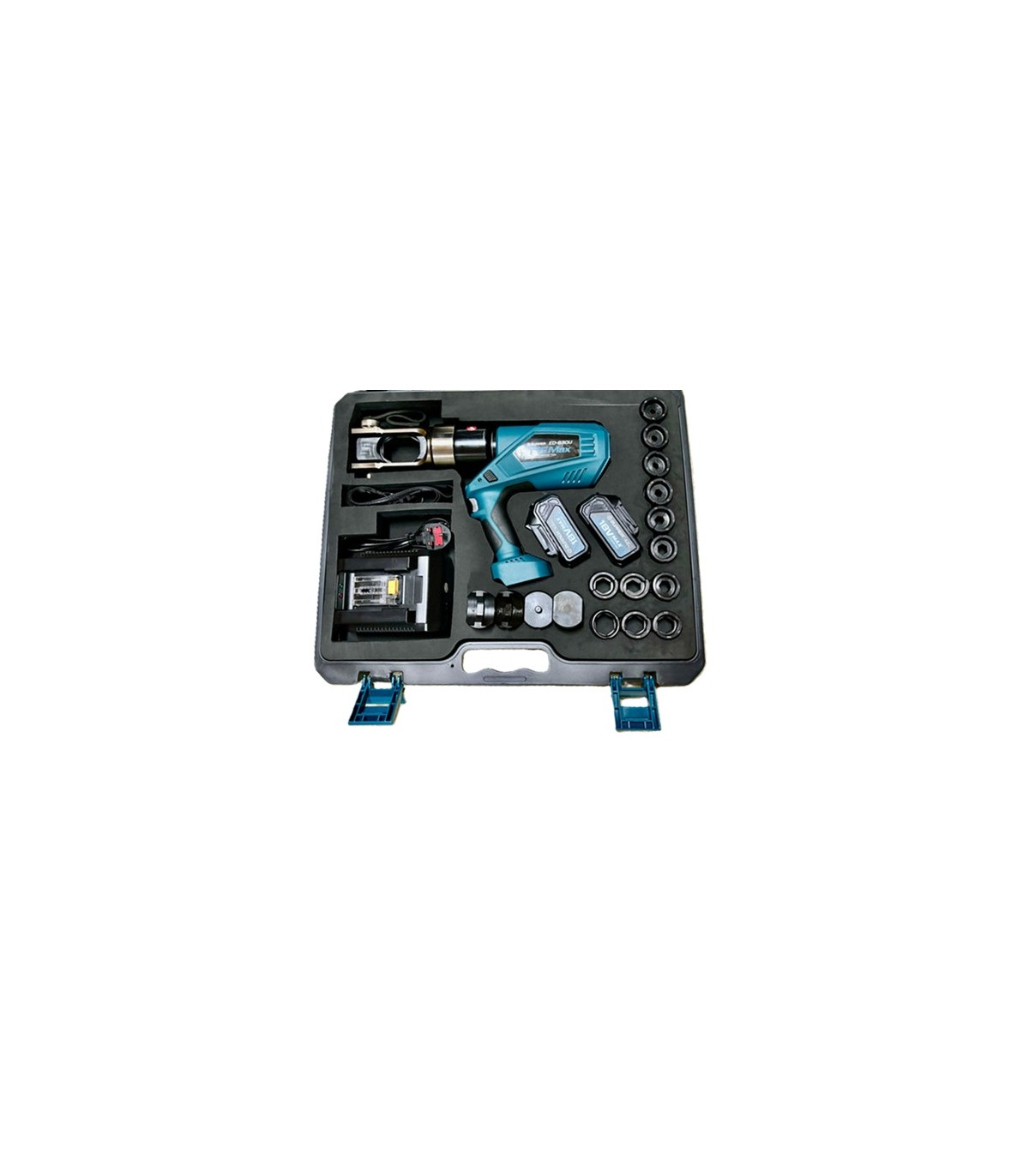

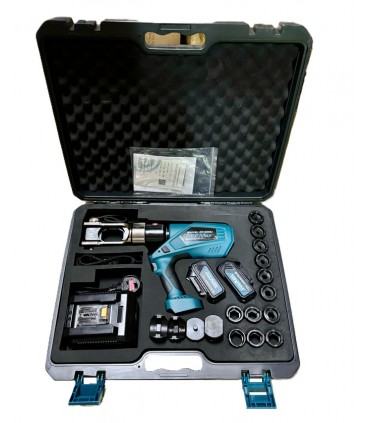

• Package Includes: 2 batteries, 1 charger, plastic carrying box
