Super Sun DADE SS-250D Battery Energy Storage Power Station
Product Code:
SS-250D
- 250kW nominal rated power for industrial energy storage applications
- 161kWh lithium iron phosphate (LiFePO4) battery capacity
- 380V/400V/415V AC rated voltage with 380A rated output current
- Air-forced cooling with IP54 ingress protection and C4 anti-corrosion protection
Spend $100.00 more and get Free Shipping!

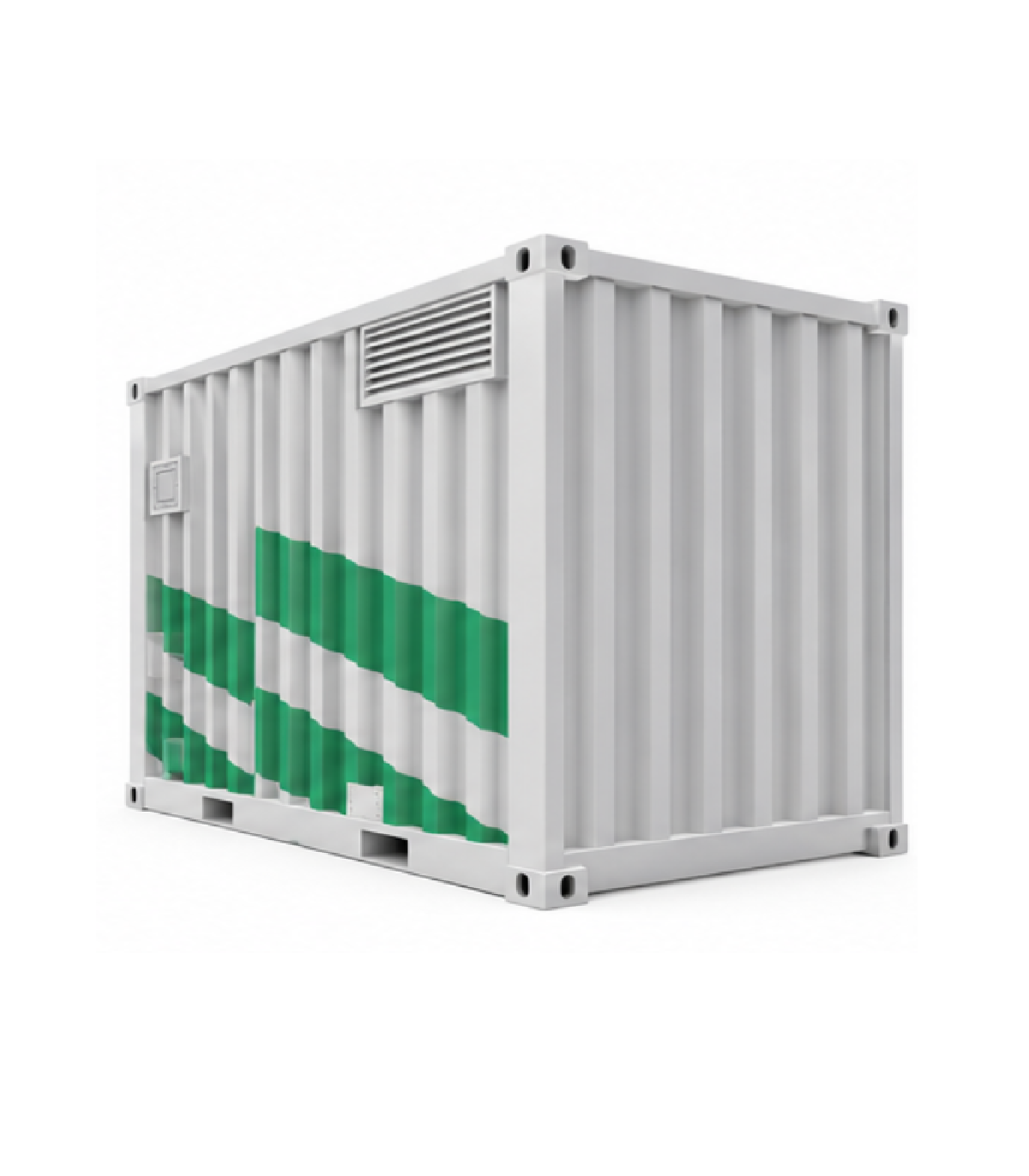

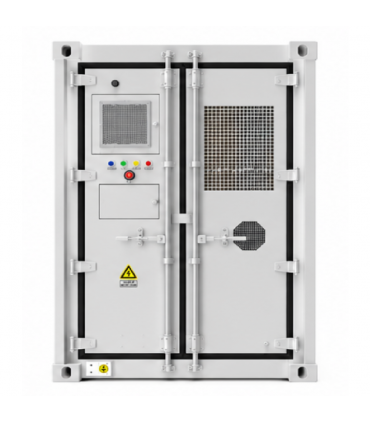

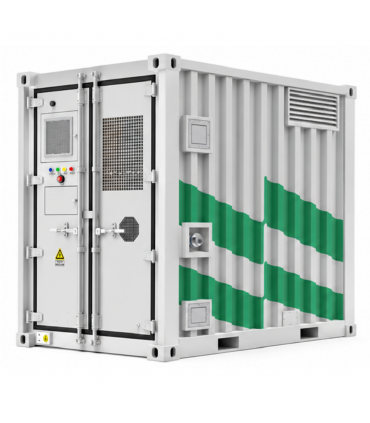

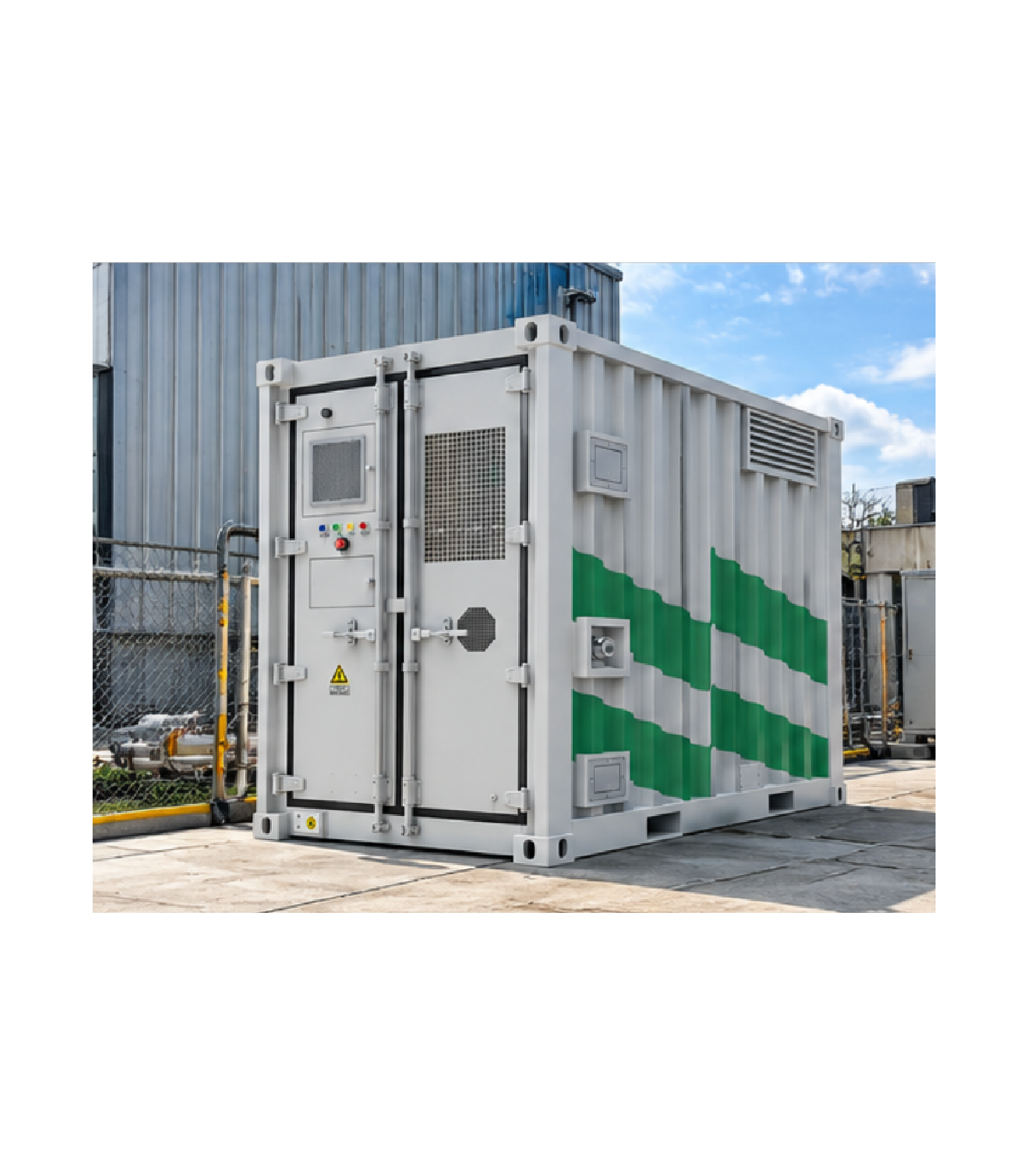

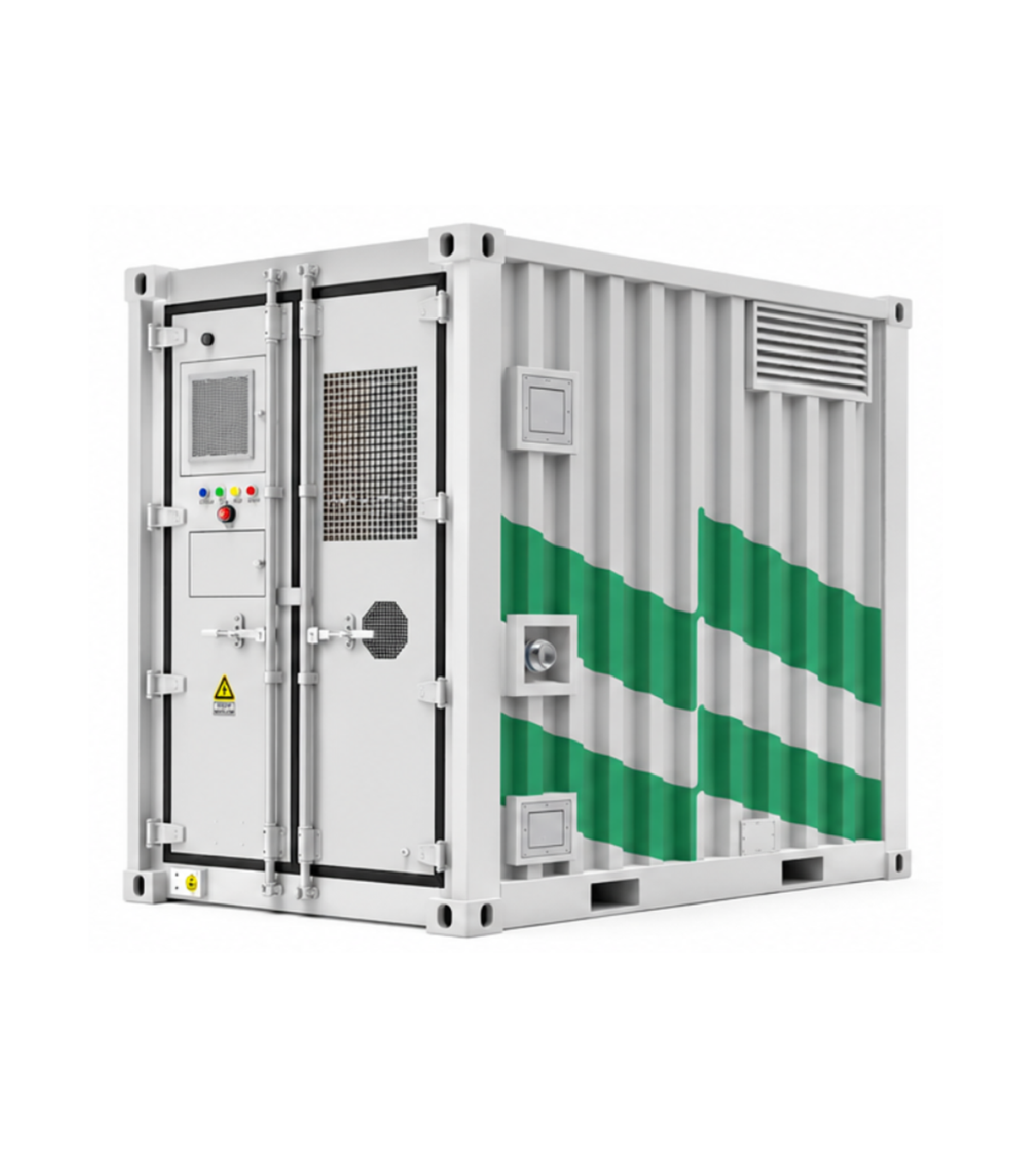

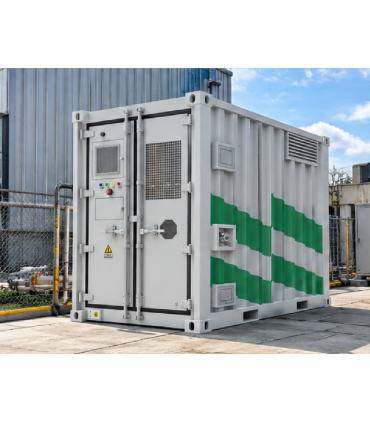

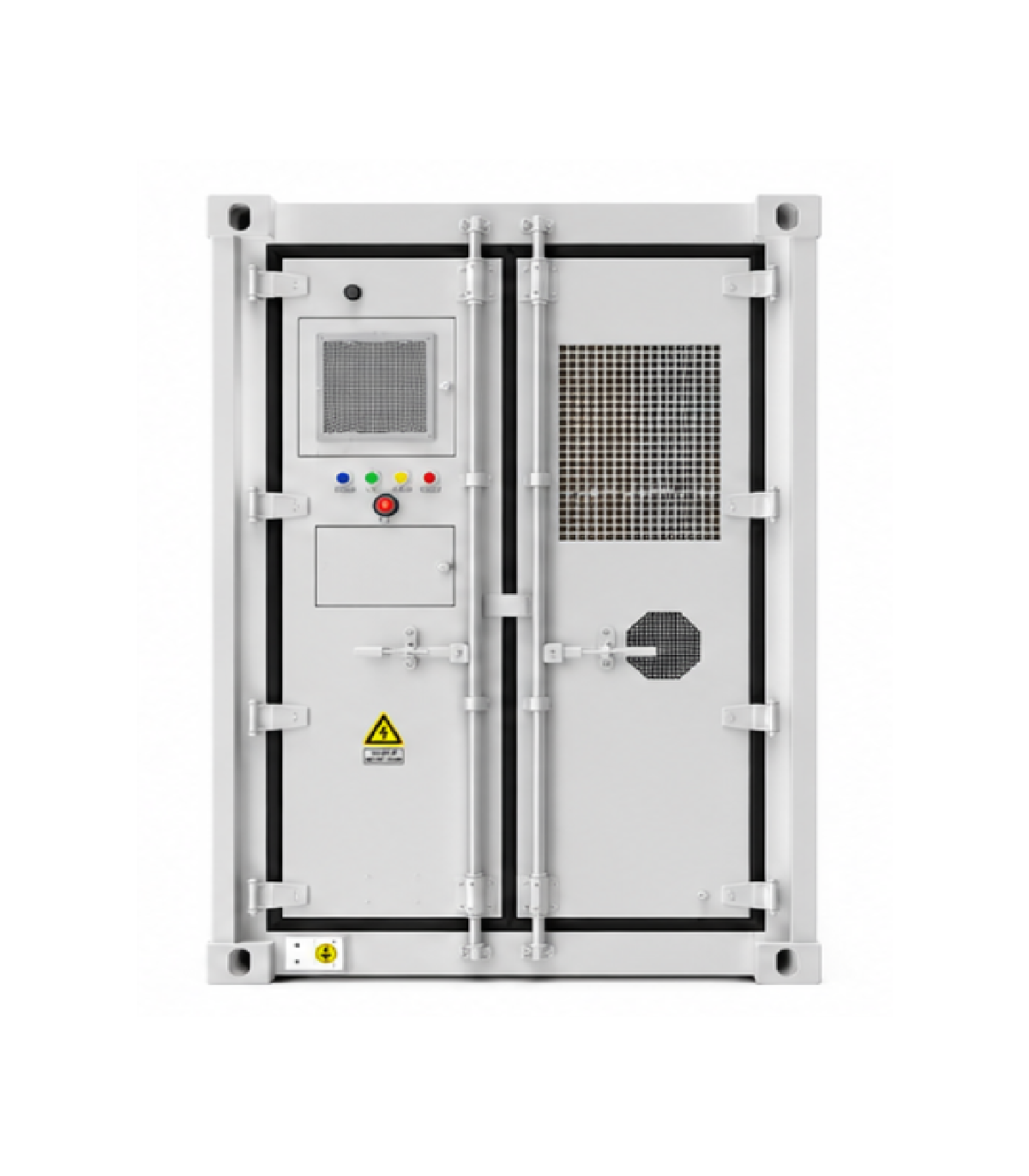

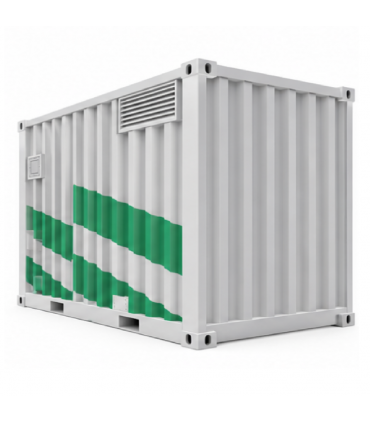

Super Sun DADE SS-250D Battery Energy Storage Power Station with 161kWh LiFePO4 Battery
The SS-250D Battery Energy Storage System (BESS) is designed to support industrial and commercial power management applications. It combines a 250kW nominal rated power output with a 161kWh LiFePO4 battery capacity for energy storage and supply. The system supports AC rated voltages of 380V, 400V and 415V, with a rated output current of 380A and operating frequencies of 50Hz or 60Hz. Its charging configuration includes a 250kW primary input and a 40kW secondary input, while air-forced cooling helps manage operating temperatures.
The enclosure provides IP54 ingress protection and C4 anti-corrosion protection for suitable installation environments. Communication options include Ethernet, 4G and RS485, with supported input sources including the power grid, photovoltaic systems and gensets. Designed for an operating temperature range of -20°C to 50°C, the SS-250D measures 2300 x 1600 x 2500mm and weighs approximately 5000kg. The stated design lifespan is 10 years.

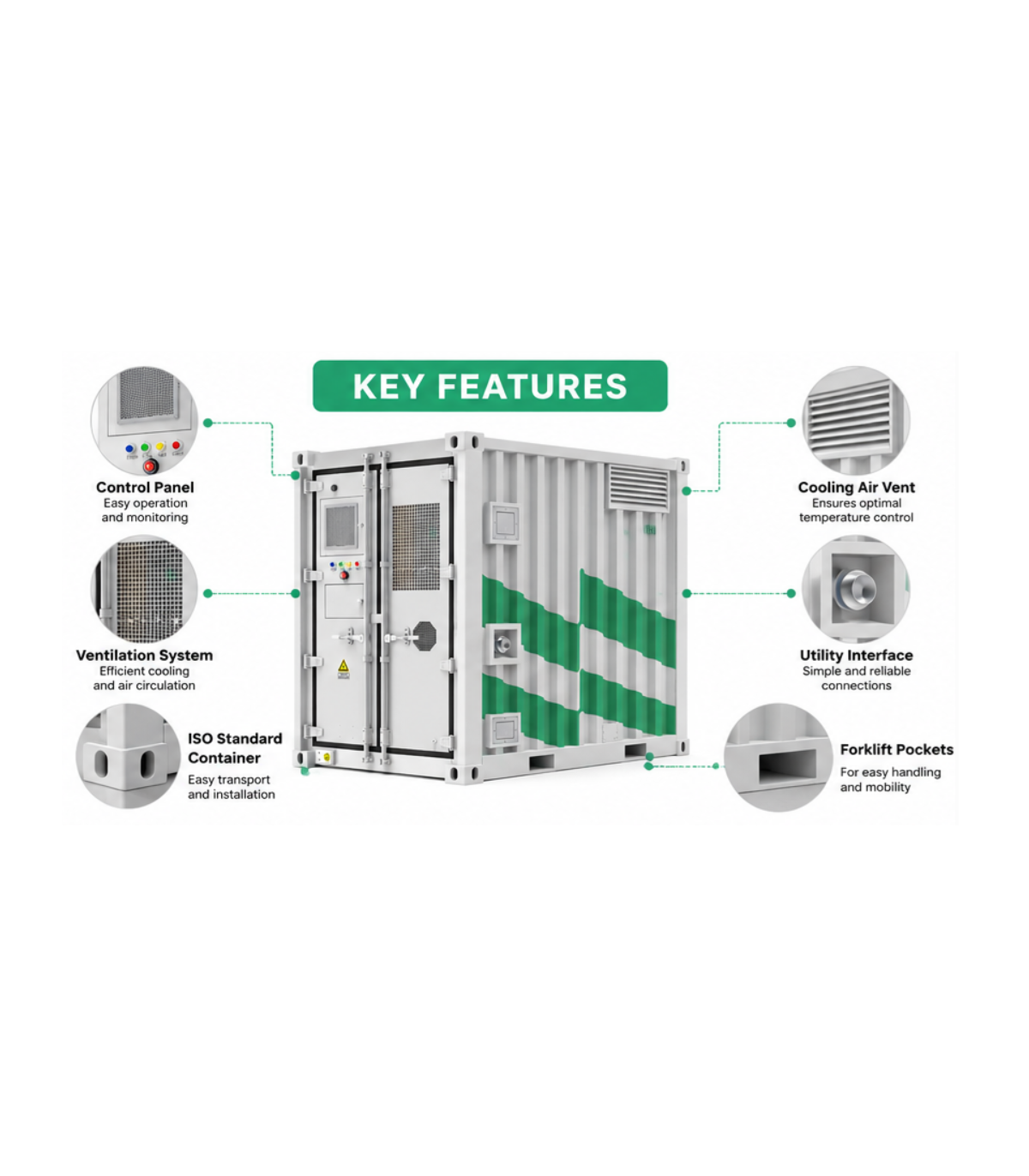

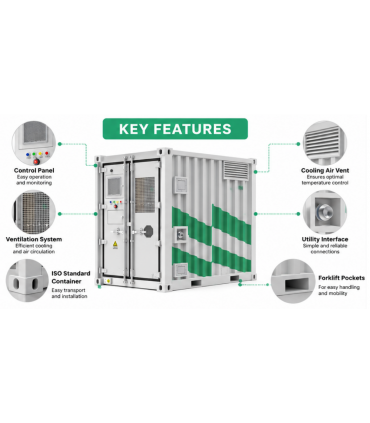

Features
- 250kW nominal rated power
- 161kWh LiFePO4 battery capacity
- 380A rated AC output current
- Compatible with 380V, 400V and 415V AC systems
- Air-forced cooling method
- Ethernet, 4G and RS485 communication interfaces
- Supports power grid, PV and genset input modes
Specification
- Brand: Super Sun
- Model: SS-250D
- Product Type: Battery Energy Storage System (BESS)
- Nominal Rated Power: 250kW
- Rated Output Current (AC): 380A
- Battery Capacity: 161kWh
- Battery Chemistry: LiFePO4
- Rated AC Voltage: 380V / 400V / 415V
- Frequency: 50Hz / 60Hz
- Overload Capacity: 1.1 times rated value
- Charging Module: Input 1: 250kW; Input 2: 40kW
- Cooling Method: Air-forced cooling
- Ingress Protection / Anti-Corrosion: IP54 / C4
- Operating Temperature: -20°C to 50°C
- Communication Modes: Ethernet, 4G, RS485
- Input Modes: Power grid, PV, gensets
- Length: 2300mm
- Width: 1600mm
- Height: 2500mm
- Weight: 5000kg
- Designed Lifespan: 10 years
- Compliance: EN62109, IEC62477, IEC62109, EN50549, IEC61000, BT34131-2023, UN38.3, IEC62619, JIS-8715, UL1642, UL1973
