Super Sun SS-500D DADE 500kW Battery Energy Storage Power Station (BESS) with 402kWh LiFePO4 Battery
Product Code:
SS-500D
- 500kW nominal rated power for high-power, multi-load applications
- 402kWh lithium iron phosphate (LiFePO4) battery capacity
- 760A rated AC output current with 380V/400V/415V voltage options
- Air-forced cooling with IP54 ingress protection and C4 anti-corrosion protection
Spend $100.00 more and get Free Shipping!

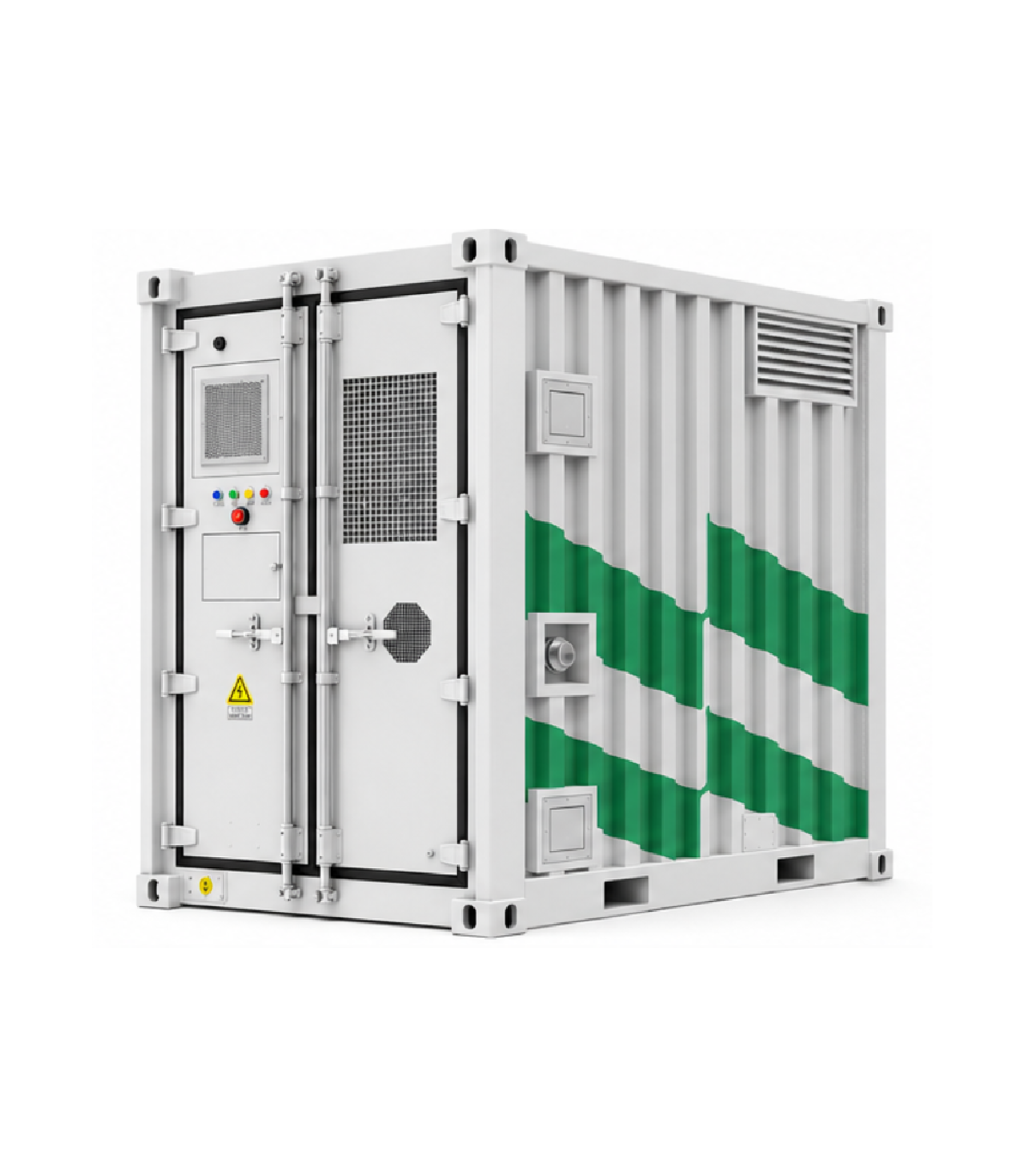

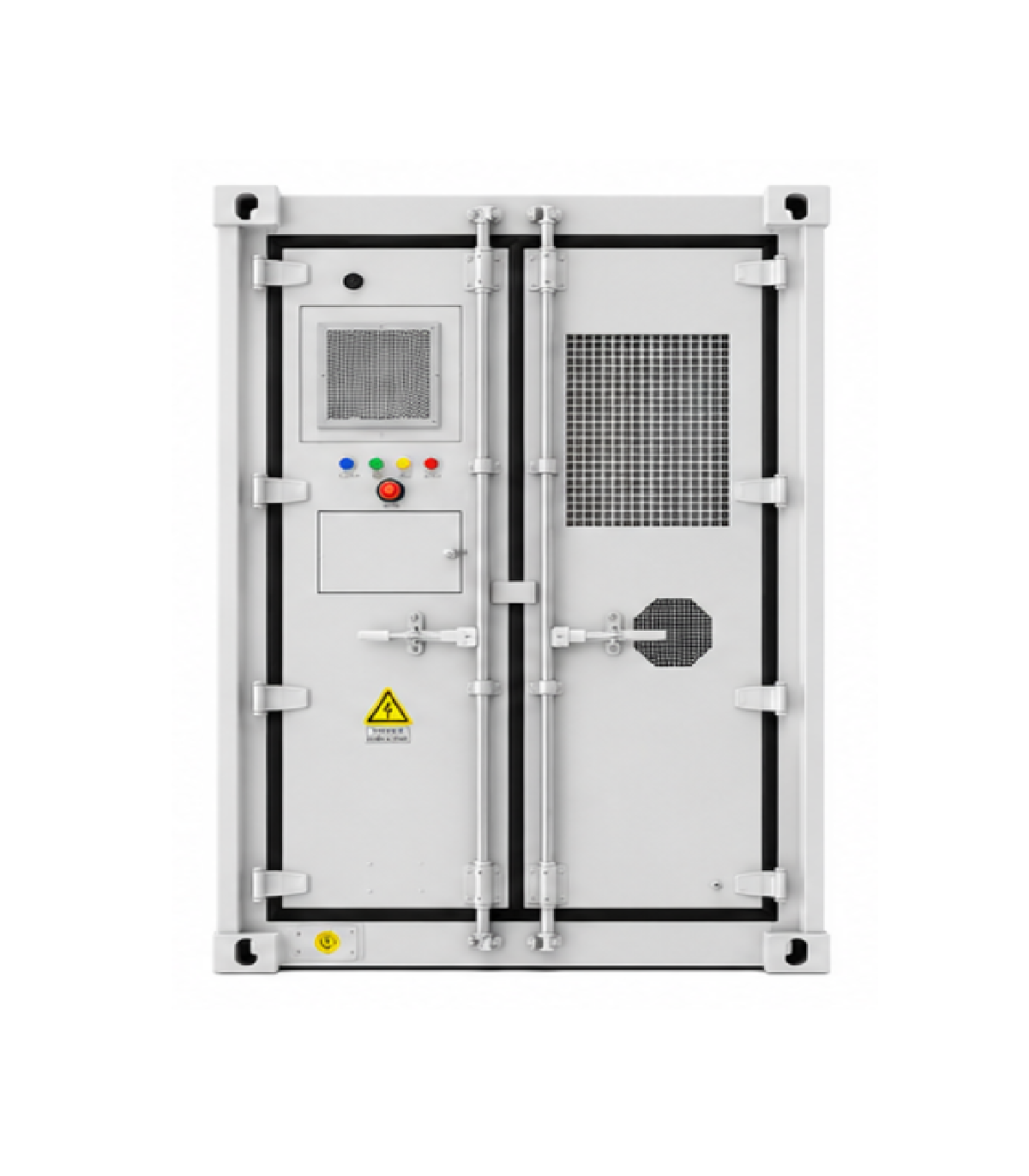

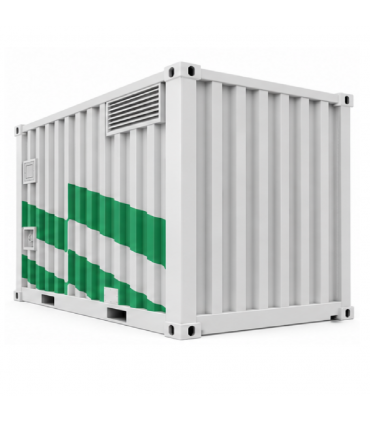

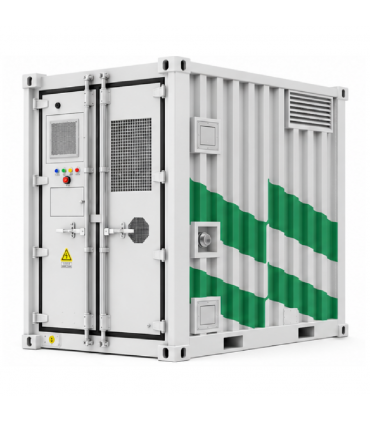

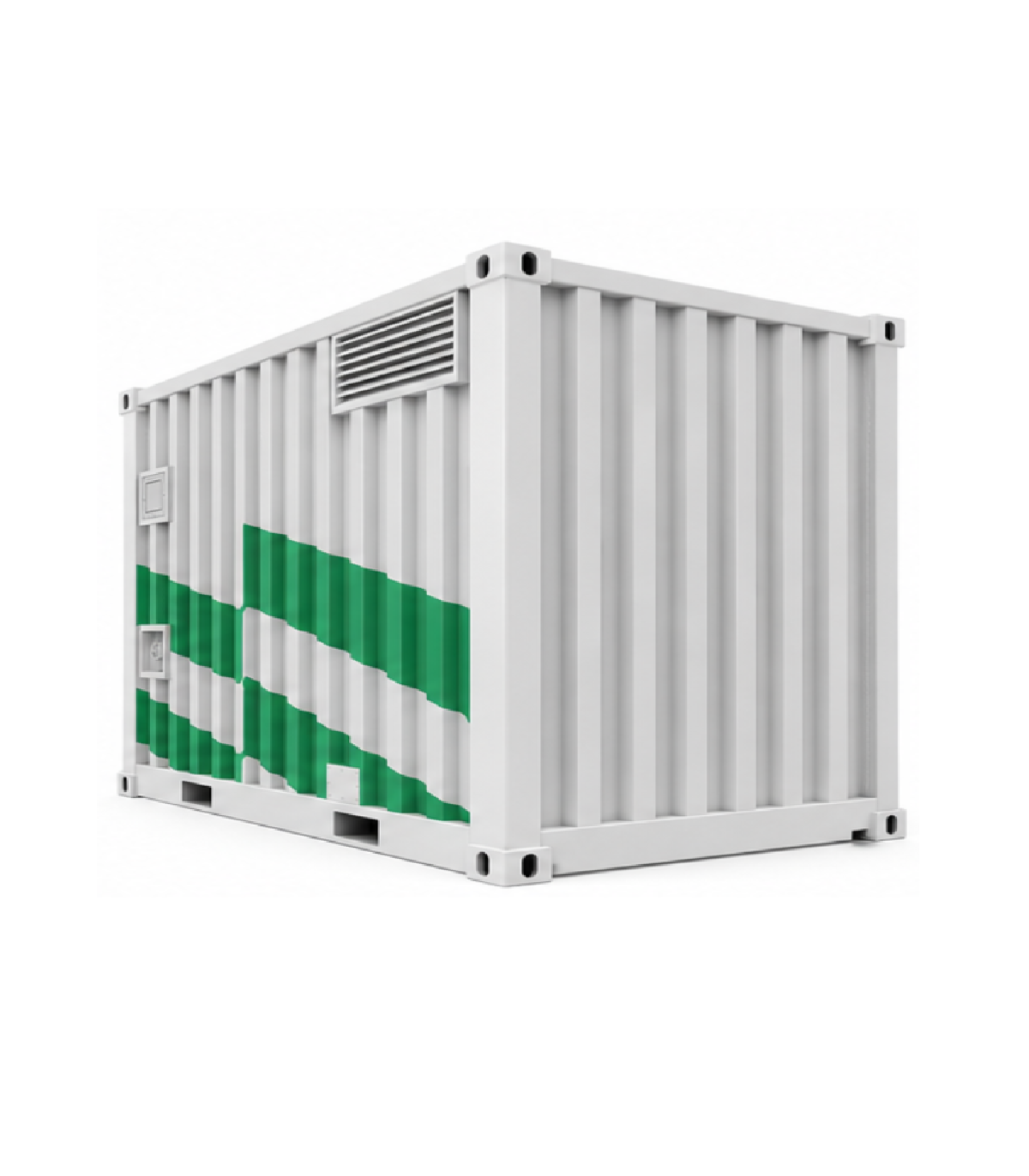

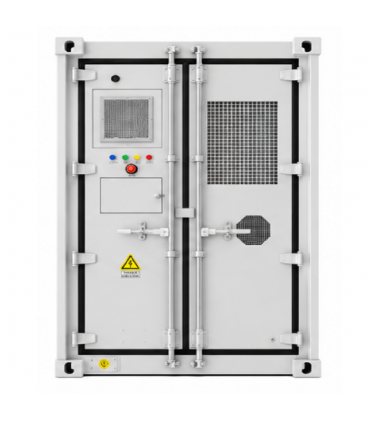

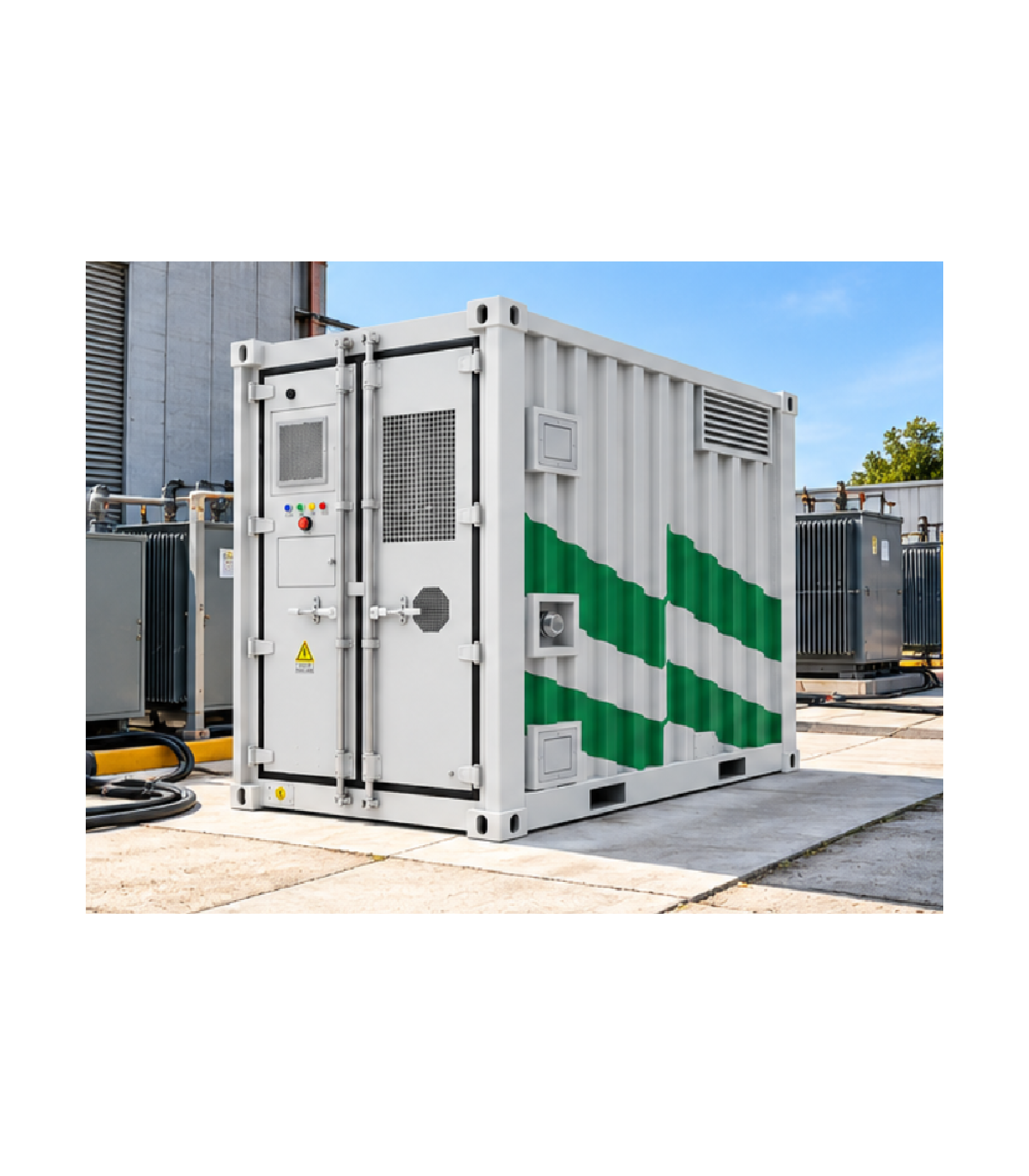

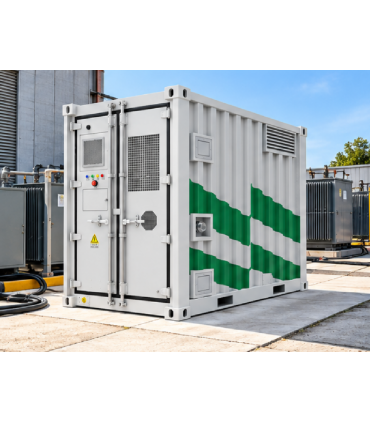

Super Sun SS-500D DADE 500kW Battery Energy Storage System (BESS) with 402kWh LiFePO4 Battery
The Super Sun SS-500D DADE Battery Energy Storage System (BESS) is designed for high-power applications requiring energy storage and management across multiple loads. It combines a nominal rated power of 500kW with a 402kWh lithium iron phosphate (LiFePO4) battery capacity. The system supports AC voltages of 380V, 400V and 415V, with a rated output current of 760A and operating frequencies of 50Hz or 60Hz. Its charging configuration includes a 500kW primary input and an 80kW secondary input. Air-forced cooling supports thermal management, while IP54 ingress protection and C4 anti-corrosion protection are specified for the enclosure. Communication options include Ethernet, 4G and RS485, and supported input sources include the power grid, photovoltaic systems and gensets. Designed for operation between -20°C and 50°C, the system measures 2991 x 2438 x 2591mm and weighs 9600kg. The stated design lifespan is 10 years, subject to operating conditions and maintenance.
Features
- 500kW nominal rated power for high-power energy storage applications
- 402kWh LiFePO4 battery capacity
- 760A rated AC output current
- Supports 380V, 400V and 415V AC systems
- Air-forced cooling system
- Ethernet, 4G and RS485 communication interfaces
- Supports power grid, PV and genset input modes
Specification
- Brand: Super Sun
- Product Type: Power Station
- Model: SS-500D
- Nominal Rated Power: 500kW
- Rated Output Current (AC): 760A
- Battery Capacity: 402kWh
- Battery Chemistry: LiFePO4
- Rated AC Voltage: 380V / 400V / 415V
- Frequency: 50Hz / 60Hz
- Overload Capacity: 1.1 times the rated value
- Charging Module: Input 1: 500kW; Input 2: 80kW
- Cooling Method: Air-forced cooling
- Ingress Protection / Anti-Corrosion: IP54 / C4
- Operating Temperature: -20°C to 50°C
- Communication Modes: Ethernet, 4G, RS485
- Input Modes: Power grid, PV, gensets
- Dimensions (L x D x H): 2991 x 2438 x 2591mm
- Weight: 9600kg
- Designed Lifespan: 10 years
- Compliance: EN62109, IEC62477, IEC62109, EN50549, IEC61000, BT34131-2023, UN38.3, IEC62619, JIS-8715, UL1642, UL1973
