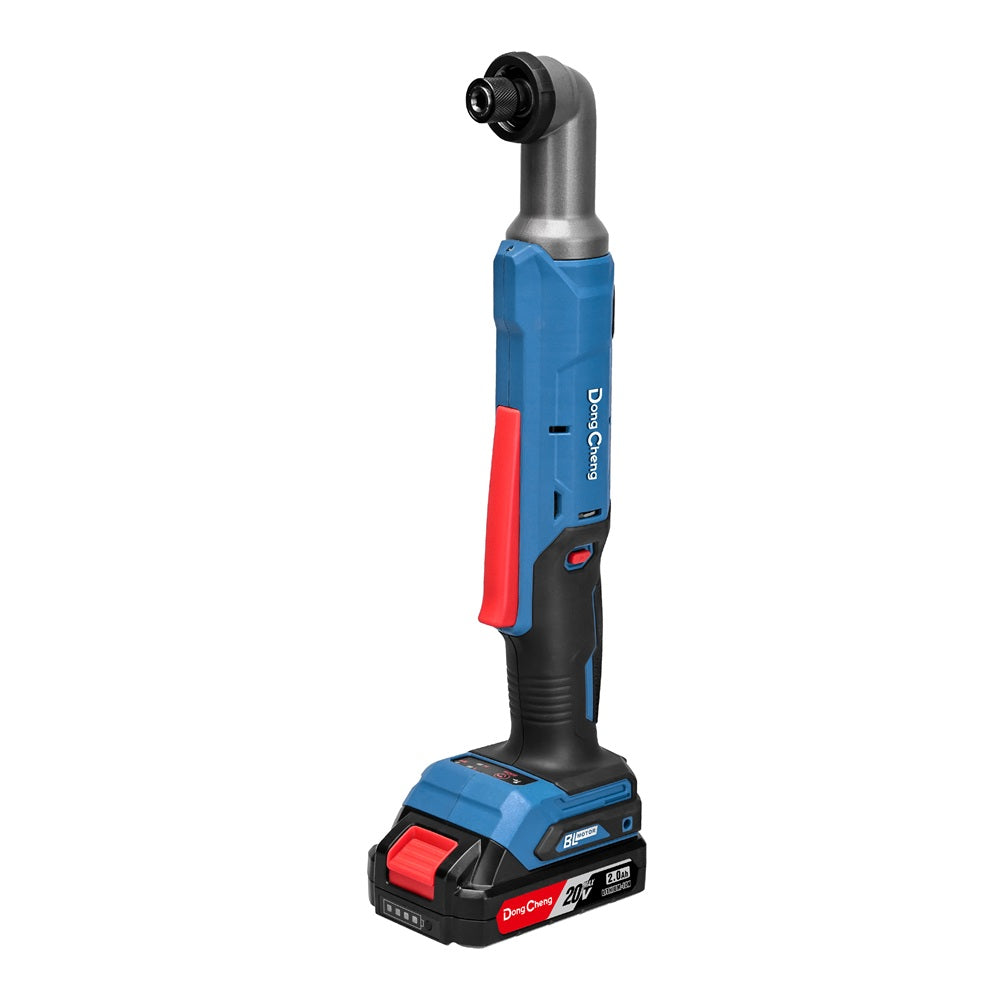

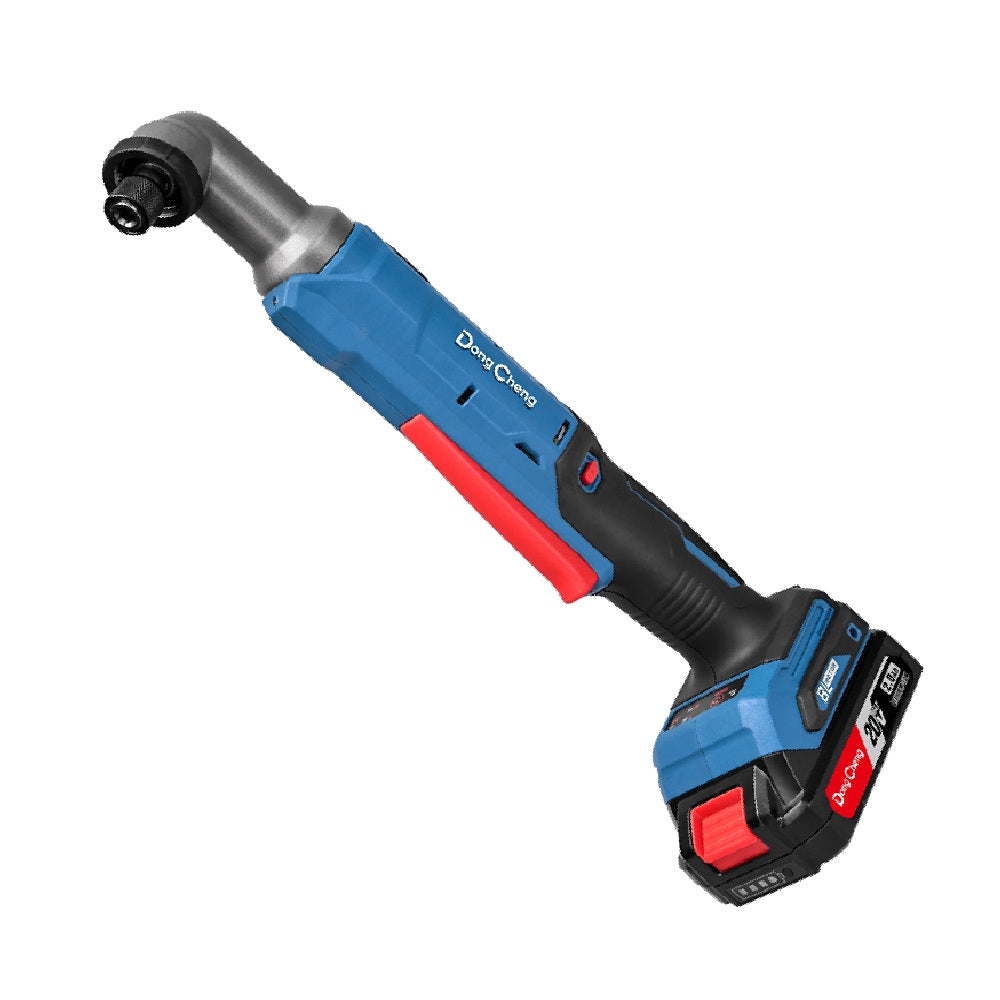

Dong Cheng DCPL05-8AM 20V MAX Brushless Cordless Angle Impact Driver Kit – 2 x 2.0Ah Batteries

Dong Cheng DCPL05-8AM 20V MAX Brushless Cordless Angle Impact Driver Kit – 2 x 2.0Ah Batteries

The Dong Cheng DCPL05-8AM Cordless Angle Impact Driver is designed for fastening and loosening applications in automotive maintenance, equipment servicing, installation and workshop environments. Powered by a 20V MAX lithium-ion battery system, its brushless motor delivers up to 80Nm of maximum torque, providing reliable performance for demanding fastening tasks.

The two-speed control offers a choice between 0–1,500 RPM and 0–2,250 RPM, with corresponding impact rates of up to 2,400 and 3,400 impacts per minute. Its compact 59mm angled head helps users reach fasteners in narrow and restricted spaces where conventional impact drivers may be difficult to position. The extended paddle switch supports multiple grip positions, while the smart loosen mode helps prevent nuts from dropping accidentally during removal. Featuring a 6.35mm hex chuck, this cordless tool accommodates compatible driver bits for versatile applications. The Type AM kit includes two 2.0Ah lithium-ion batteries, a 2A charger and a carrying case for convenient storage and transport.

Features

• 20V MAX lithium-ion cordless battery platform
• High-efficiency brushless motor
• Maximum torque of 80Nm
• Two-speed variable control
• Compact 59mm angled head design
• Extended paddle switch for multiple grip positions
• Smart loosen mode to help prevent nuts from dropping

Specification

• Brand: Dong Cheng
• Model: DCPL05-8AM
• Product Type: Cordless Brushless Angle Impact Driver
• Voltage: 20V MAX
• Motor Type: Brushless
• Battery Type: Lithium-Ion
• Battery Capacity: 2.0Ah
• Number of Batteries: 2
• Maximum Power Output: 160W
• Clamping Capacity: 6.35mm Hex (1/4 inch)
• No-Load Speed(Low): 0–1,500 RPM
• No-Load Speed(High): 0–2,250 RPM
• Rated Impact Frequency(Low): 0–2,400 IPM
• Rated Impact Frequency(High): 0–3,400 IPM
• Maximum Torque(Low): 45Nm
• Maximum Torque(High): 80Nm
• Angled Head Height: 59mm
• Net Weight: 1.4kg with battery
• Charger: 2A charger
• Charging Time: Approximately 1 hour (as indicated on packaging)

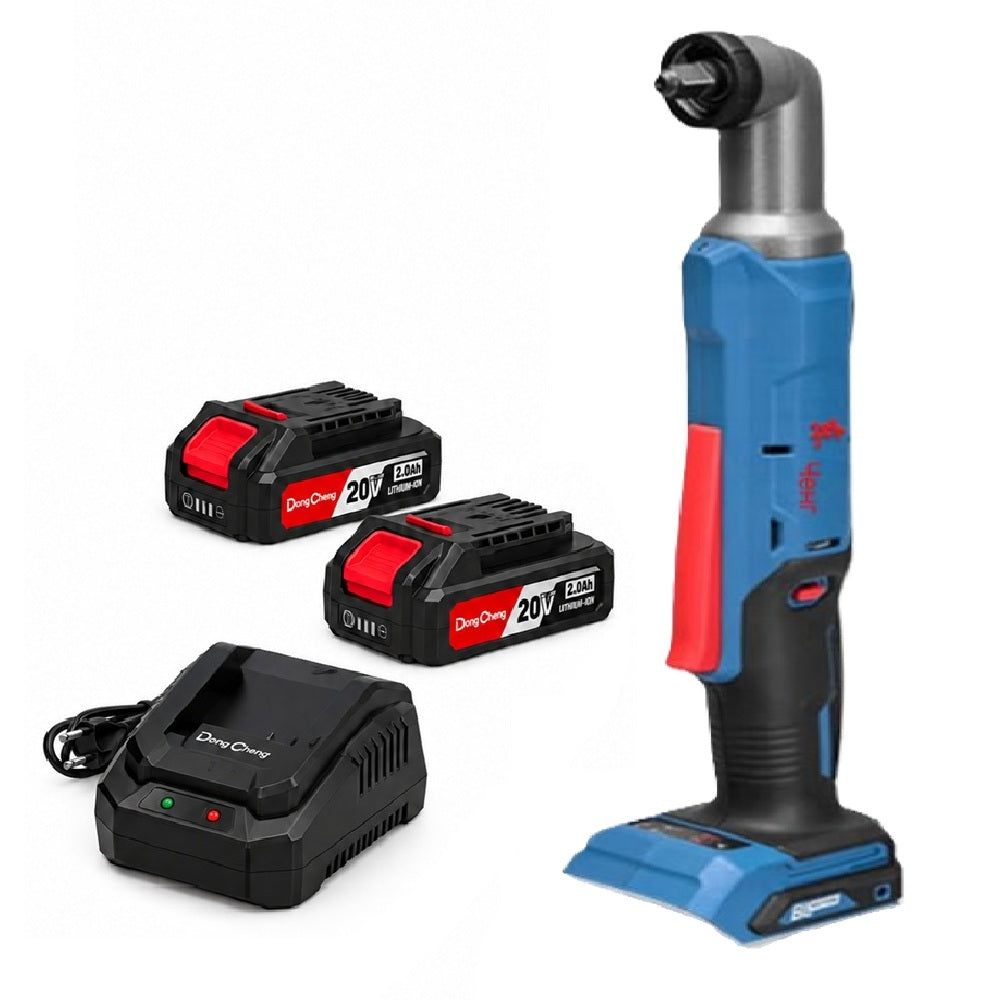

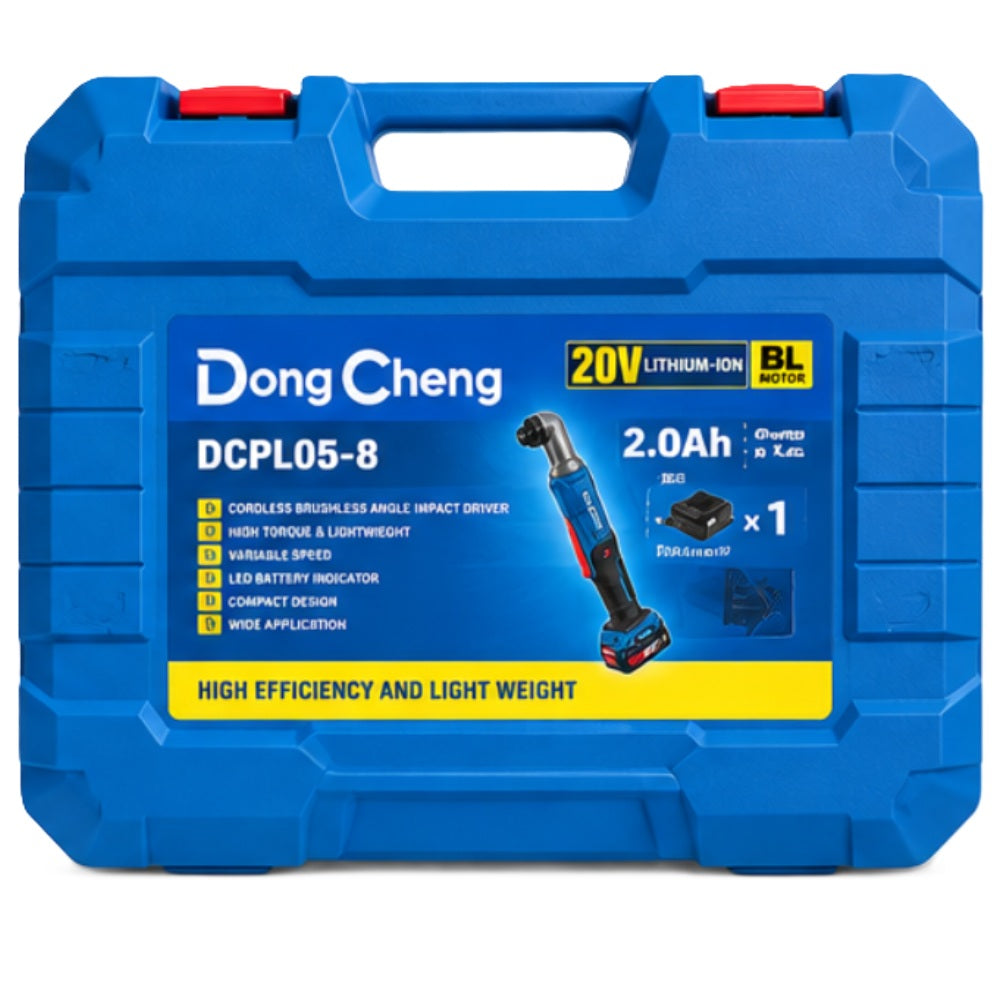

• Package Includes: Angle impact driver, 2 x 2.0Ah batteries, 1 x 2A charger and plastic carrying case
