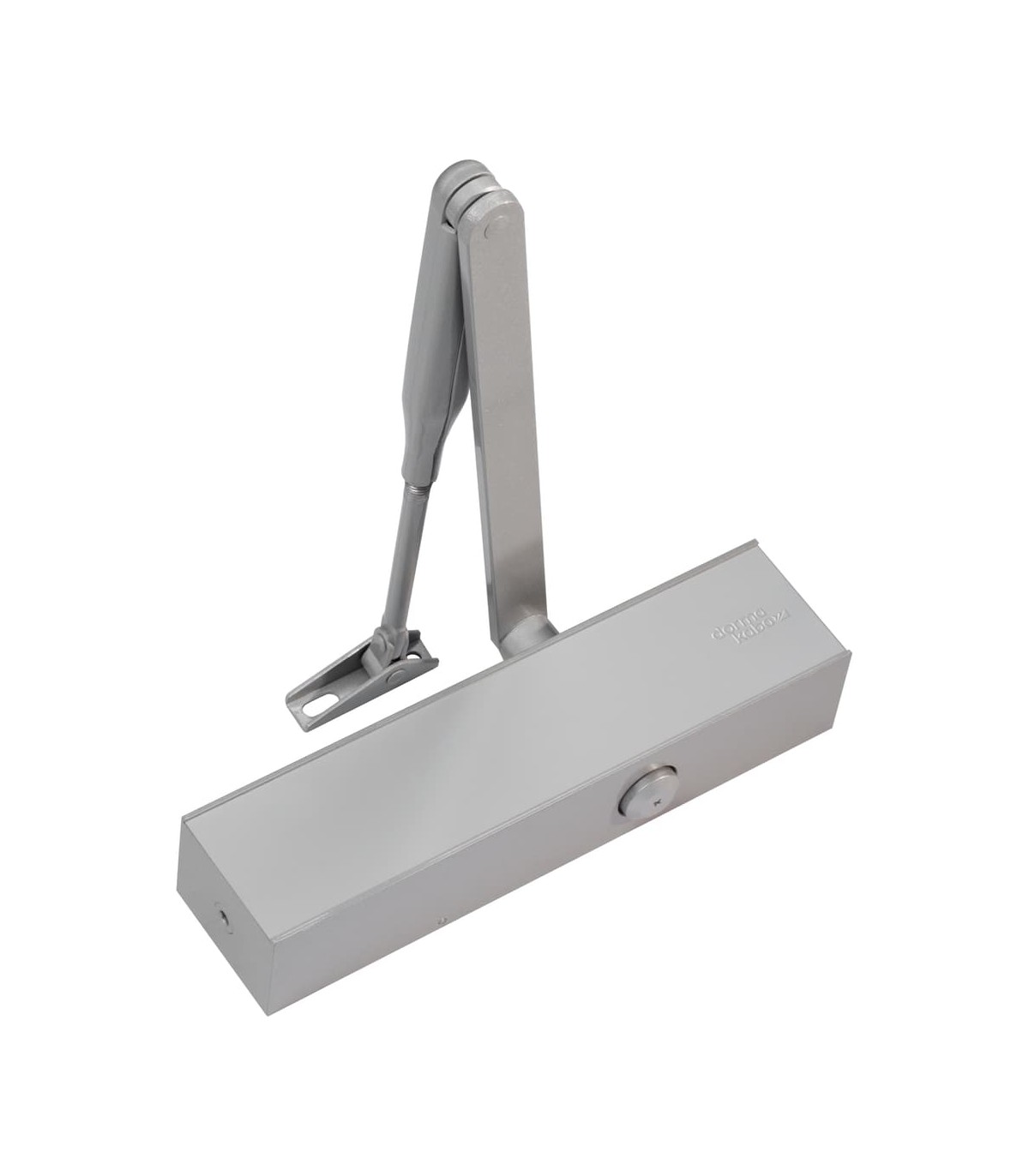

Dorma TS83 EN 3-6 Fire Rated Anti-Corrosive Arm Door Closer with Hold Open

Dorma TS83 EN 3-6 Fire Rated Anti-Corrosive Arm Door Closer with Hold Open

The TS 83 door closer with a standard arm can be used for almost all door sizes and areas of application. Variable models suitable for a wide range of applications can also be supplied with delayed closing and special anti-corrosion protection.

Classicline Door closer with self-regulating backcheck

Quickly installed and adjusted even faster. A door closer for almost all door sizes and applications. Developed on the basis of decades of experience, the dormakaba TS 83 door closer meets the highest demands of functionality and user convenience.

Suitable for any requirement

The dormakaba TS 83 door closer is suitable for virtually any door size and requirement. The TS 83 door closer was designed specifically for exterior doors in mind. An optimised corrosion protection (AC version) is available for areas subject to harsh conditions. In addition, the exemplary ease of installation and not least literally the excellent quality make this closer the universal all-rounder.

Features:

• Perfect solution for almost any application
• Door widths up to 1400 mm / 1600 mm
• Timeless design
• Easy installation
• Wide range of optional accessories

Specification:

• Brand: Dorma
• Product Type: Door Closer
• Closing Force: Spring strength
• Standard Doors: ≤ 1400 mm
• External Doors(Outward Opening): ≤ 1400 mm
• Non-Handed: Yes
• Arm Assembly: Flat Arm
• Closing Angle: 180º - 15º, 15º - 0º
• Backcheck: Self-Regulating, Adjustable at valve
• Length: 245mm
• Depth: 46mm
• Height: 60mm
• Weight: 1.7 kg
• Certification and Listing: EN 1154, CE Certified and AS1905

Benefits

For the trade

• Low inventory costs and reduced stocking requirements thanks toa streamlined product range.
• Thanks to a comprehensive choice of accessories, practical and effective solutions to meet special applications.

For the user

• Optimum wall and door protection thanks to “thinking” backcheck.
• Closing speed is virtually unaffected by temperature fluctuations
• Proportionately low opening resistance thanks to high mechanical efficiency.

For the installer

• Easy to fix
• Can be “tailored” to the requirements of the door by simple adjustment.
• Just one model for RH (DIN-R, ISO 5) and LH (DIN-L, ISO 6) doors, and for standard and frame/lintel fixing
• Spring strength range EN 3–6 to suit virtually every application.

For the specifier/architect

• Compact closer design and sturdy flat-form arm assembly
• Wide range of standard functions supplemented by optional extras
• Suitable for fire doors
