Moco MAD061 Central Axis Hydraulic Pivot Door Closer

Moco MAD061 Central Axis Hydraulic Pivot Door Closer – 100kg Heavy-Duty 360° Reversible Design

The Moco MAD061 Central Axis Hydraulic Pivot Door Closer is engineered for premium door systems requiring precise control, durability, and smooth operation. Designed with a central pivot mechanism and hydraulic damping, it supports doors up to 100kg with exceptional reliability. The adjustable 2D base allows flexible installation and alignment, while its 90° hold-open function provides convenient access when needed. Tested for over 500,000 cycles, this closer ensures long-lasting performance for both wooden and aluminum frame doors. Ideal for commercial, residential, and high-traffic environments, the MAD061 delivers seamless two-way opening and closing motion with controlled speed and torque.

Features

• 2D adjustable base for easy installation and precise door alignment
• 90° hold-open function for convenient door access
• Tested for 500,000+ durability cycles ensuring long service life
• Two force torque adjustment valves for customized closing strength
• Reversible 360° design for flexible left or right-hand door configuration
• Two-way opening and closing mechanism for enhanced functionality
• Compatible with wooden and aluminum frame doors above 40mm thickness

Specification

• Brand: Moco
• Product Type: Central Axis Hydraulic Pivot Door Closer
• Model: MAD061

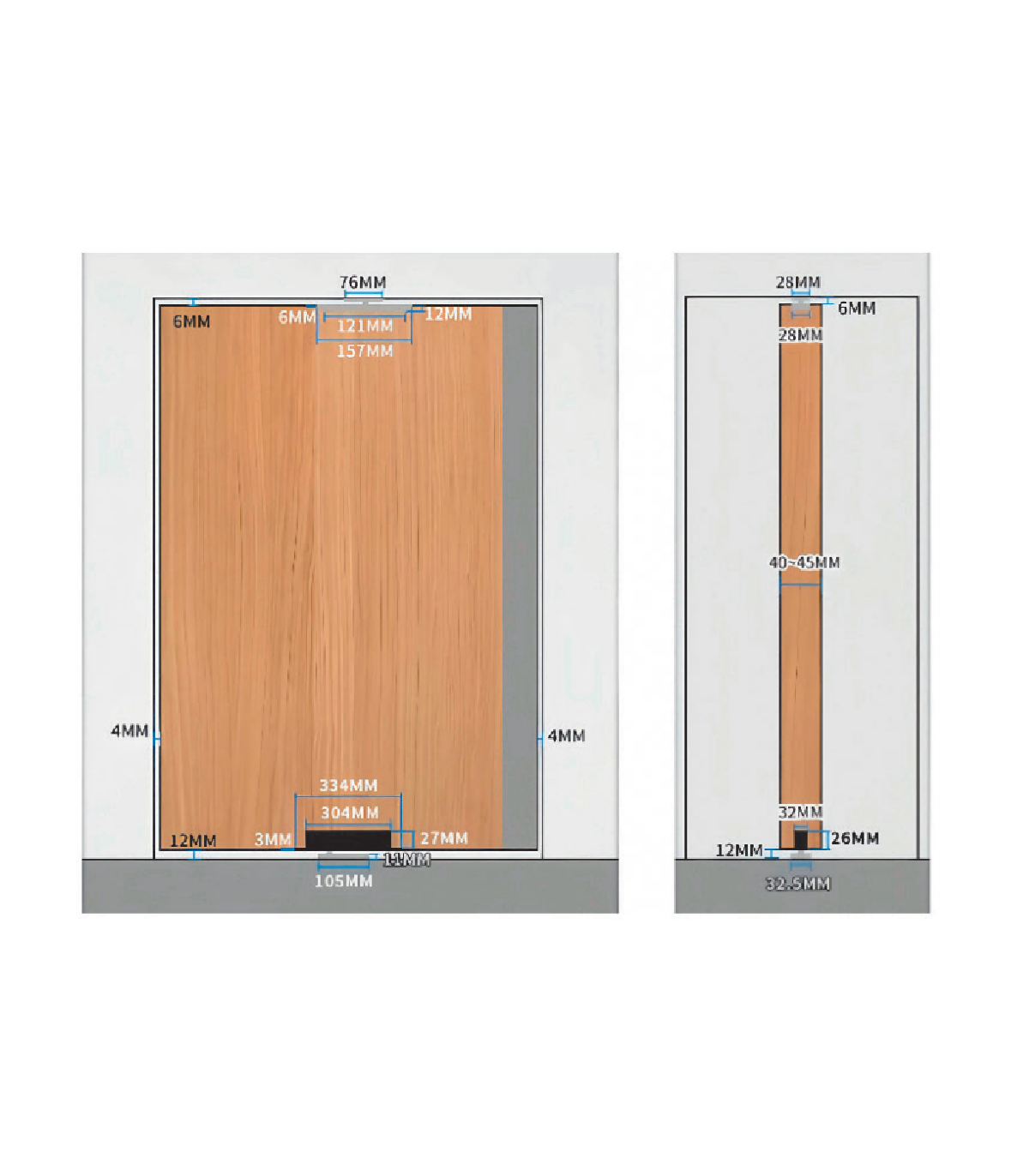

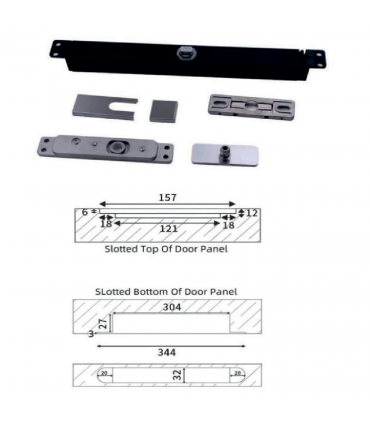

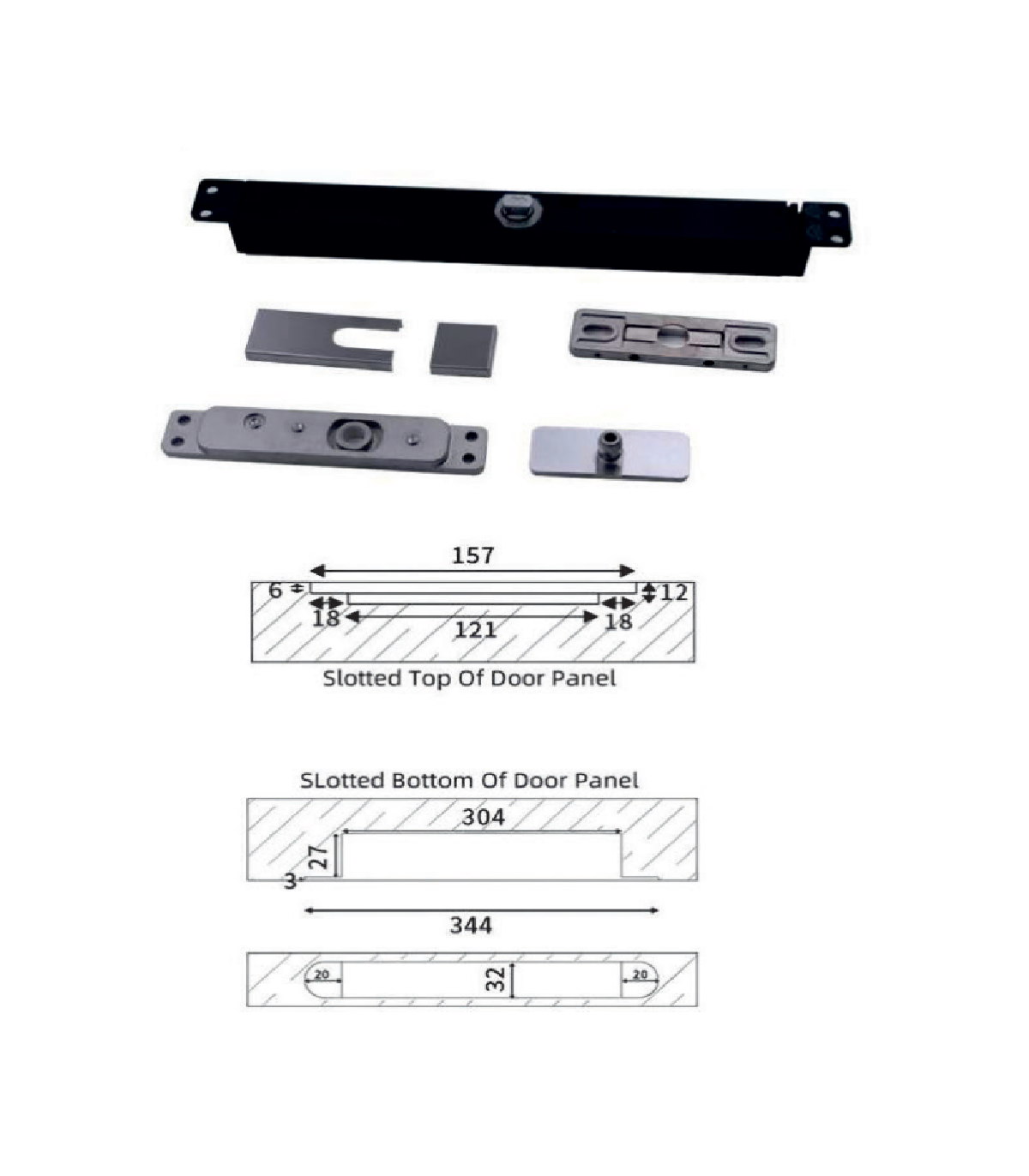

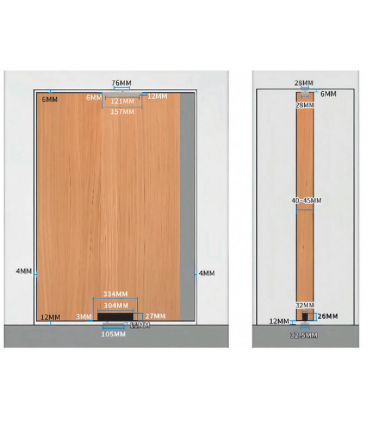

• Size: 304 × 32 × 26mm
• Loading Capacity: 100kg
• Door Width: ≤ 1800mm
• Door Thickness: ≥ 38mm
• Cycle Test: 500,000 cycles
• Operation: Two-way opening and closing with 90° hold-open function
• Application: Wooden doors and aluminum frame doors (≥ 40mm thickness)
