Moco MAD063 Offset Axis Hydraulic Pivot Door Closer

Moco MAD063 Offset Axis Hydraulic Pivot Door Closer – 100kg Heavy-Duty Offset Door System

The Moco MAD063 Offset Axis Hydraulic Pivot Door Closer is a precision-engineered solution designed for offset pivot door installations requiring controlled and silent motion. Supporting doors up to 100kg, it provides smooth two-way opening and closing with a 90 hold-open function for added convenience. Its 2D adjustable base enables flexible installation and perfect door alignment, while dual torque adjustment valves allow users to fine-tune the closing force for different door weights. With a proven durability of 500,000 test cycles, the MAD063 ensures long-term performance in both wooden and aluminum frame doors, making it ideal for commercial and residential use.

Features

• Offset axis design for stable and precise pivot door operation
• 2D adjustable base for accurate installation and alignment
• 90 hold-open function for convenient access
• Tested for 500,000+ cycles ensuring long-term reliability
• Two torque adjustment valves for customizable closing control
• Supports two-way door opening and closing motion
• Compatible with wooden and aluminum doors (≥ 40mm thickness)

Specification

• Brand: Moco
• Product Type: Offset Axis Hydraulic Pivot Door Closer
• Model: MAD063

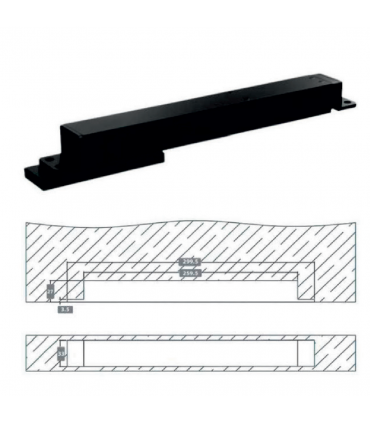

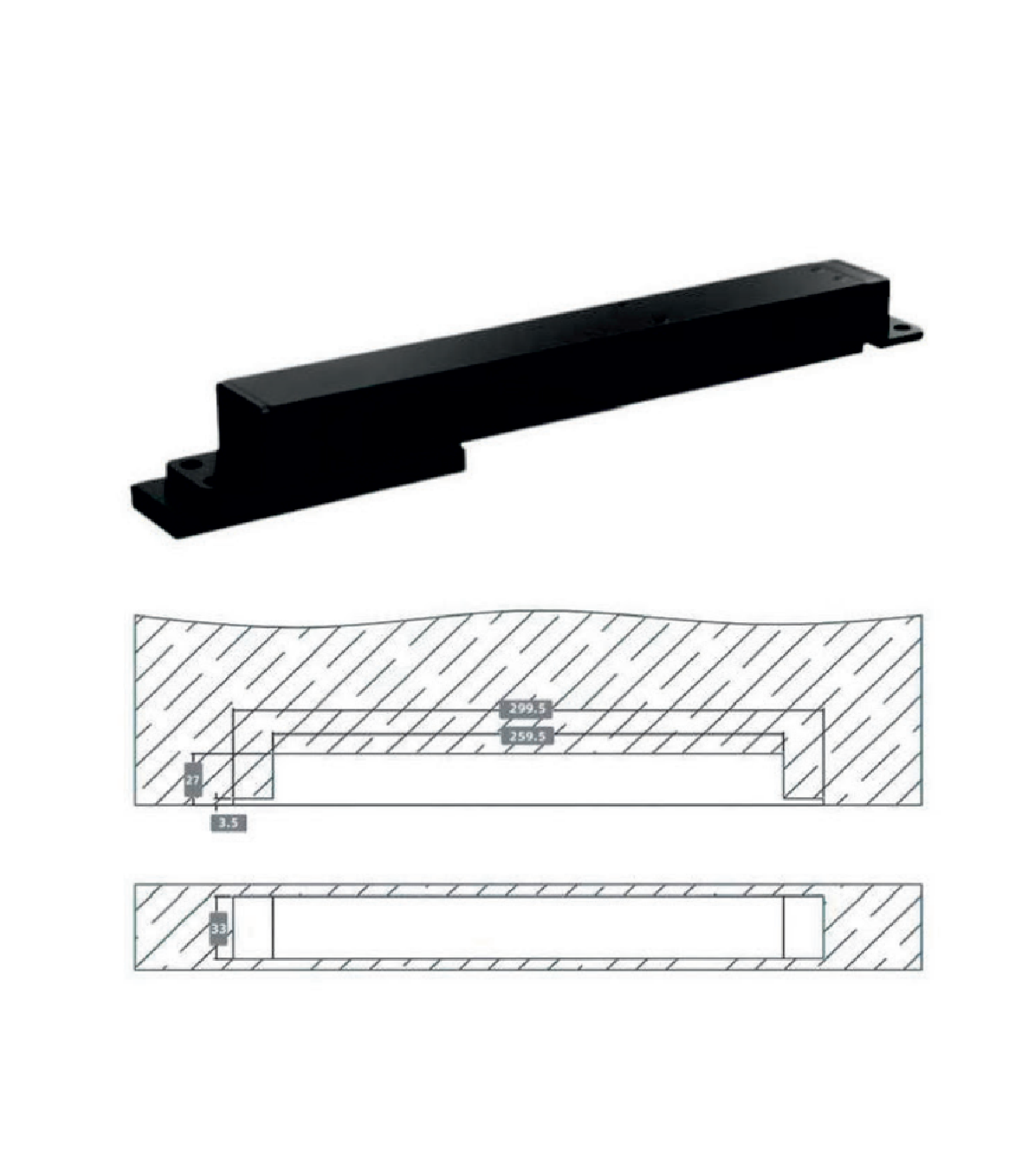

• Size: 259 × 32 × 26mm
• Loading Capacity: 100kg
• Door Width: 1000mm
• Door Thickness: ≥ 38mm
• Cycle Test: 500,000 cycles
• Operation: Two-way opening and closing with 90° hold-open function
• Application: Wooden and aluminum frame doors with ≥ 40mm thickness
